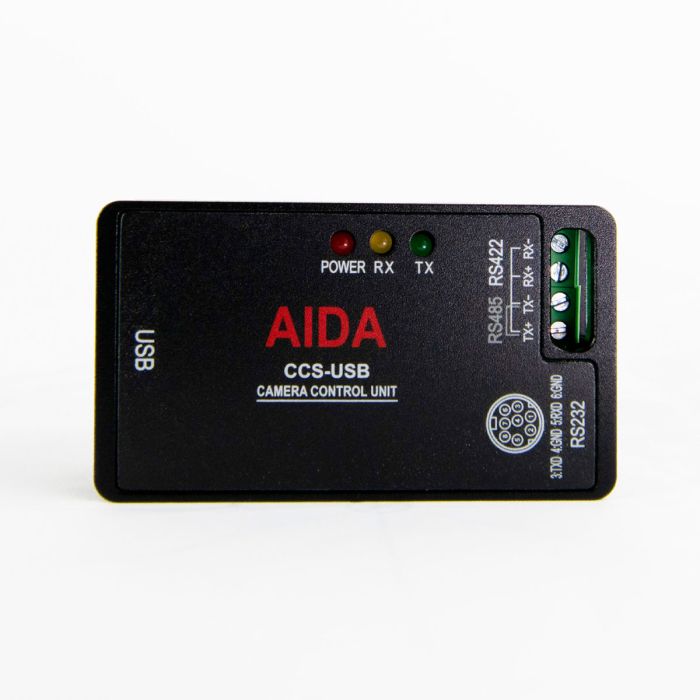

Aida Imaging CCS-USB Camera Control

• SONY VISCA Compatible and work with most of major VISCA protocol products.
• Support PELCO Pan / Tilt / Zoom / Focus protocol.
• Control up to 7 VISCA control cameras and 255 third party
  control cameras.
• User friendly software interface.
• Support RS-232, RS-485, RS-422.
• USB interface for easy installation.
• Windows and MAC OS X compatible.
• Compact and rugged design.

VIDEO

• Camera Interface Protocol: RS-232C, RS-485/RS-422: Terminal Block Connector
• Protocol: VISCA for Camera Setting up to 7 Cameras PELCO for Pan/Tilt/Zoom Control up to 255 Cameras
• User Interface: Graphic User interface
•  PC Interface: USB
•  Compatibility:
  • All VISCA  Camera
  • All PELCO Protocol Camera

MAIN FUNCTIONS ON VISCA CONTROL

• Image: Contrast, Saturation, Sharpness,Gamma
• Exposure: Auto, Shutter Priority, Iris Priority, Manual, Flicker-less
• White Balance: Auto, Manual, ATW
• Back-light: WDR, BLC


PHYSICAL

• Camera Control: RS-232C: 8 Pin Mini Din Connector RS-485/RS-422: Terminal Block Connector
• Accessory: CBL-RJ45 (RS232 to Cross-RJ45 converter cable)
  Operation Temp: 32°F - 104°F
• Dimension: 62m x 35m x 19mm / 2.44” x 1.37” x 0.74”
  Weight:  50g / 0.11lb
• Power: USB Powered





• Aida Imaging CCS-USB
• DC 12v Power Supply & Sockets Adapter
• CBL-RJ45 (RS-232C Cross RJ45 Converter Cable)
