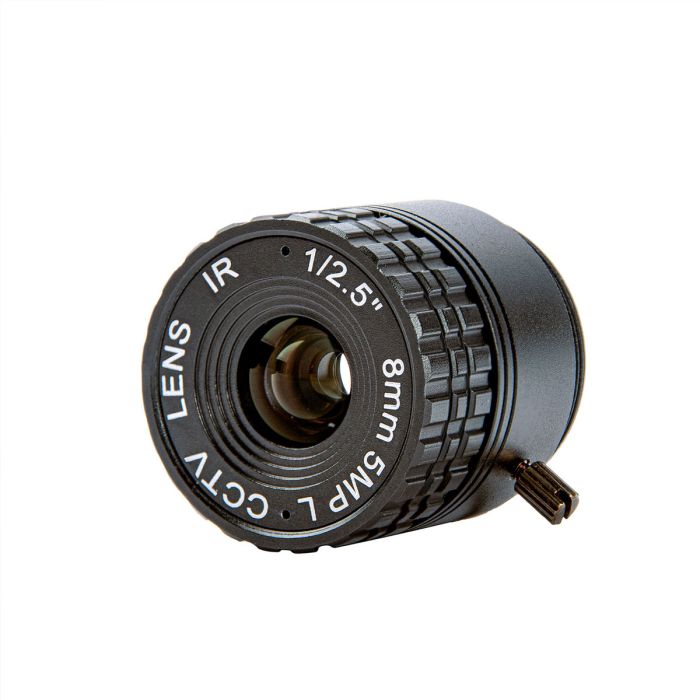

Aida Imaging CS-8.0F 8mm 5MP CS Mount Lens
8mm 5Mega Pixel CS Mount Lens
SKU: CS-8.0F
Made for 1/2.5” Progressive CMOS Sensor
The CS-8.0F is optimized for any CS mount AIDA HD Cameras, providing a narrower HFOV at around 45°. This lens will also work on any camera that is CS type, and Full-HD with a sensor of 1/2.5 or smaller.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Made for 1/2.5” Progressive CMOS Sensor
The CS-8.0F is optimized for any CS mount AIDA HD Cameras, providing a narrower HFOV at around 45°. This lens will also work on any camera that is CS type, and Full-HD with a sensor of 1/2.5 or smaller.
- Optimized for AIDA FHD Cameras
- 8mm Focal Length
- CS Mount Lens
- Aperature F2.0
- Horizontal Field of View: ~45°
OPTICAL
- Back Focal Length: 7mm
- Focal Length: 8mm
- F-Stop: F2.0
- Focus Operation: Manual
- Iris Operation: Fixed
- FOV (Horizontal):
- 1/2.5” : HFOV 45°
- 1/3” : HFOV 36.6°
- Image Format: Max 1/2.5” Sensor
- Mid
- Megapixel Count 5M
- TV Distortion: -18.5% with 1/2.5” Sensor
PHYSICAL
- Mount Type: CS
- Operation Temp: -20°C – 60°C
- Dimension: 31.2mm x 28mm / 1.81” x 1.39”
- Weight: 2g/ 0.0004 lbs
