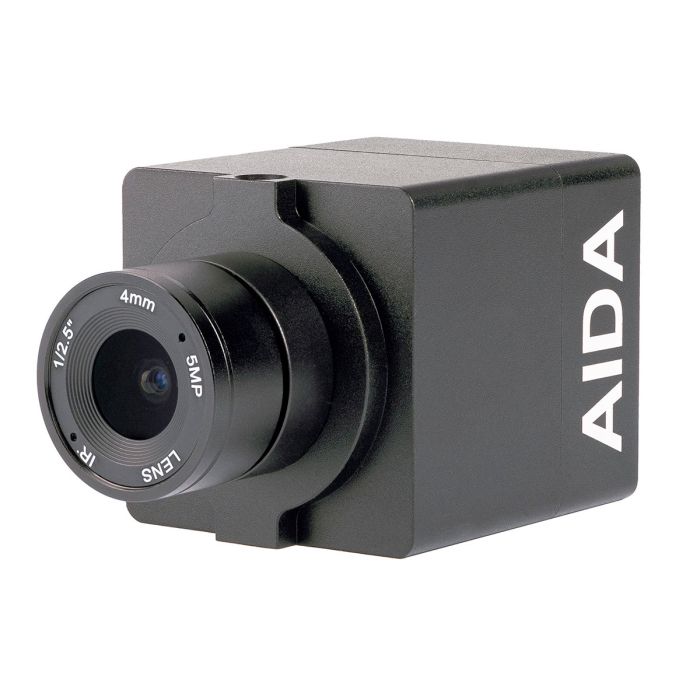

Aida Imaging GEN3G-IPC-200 POV Camera

FHD Genlock 3G-SDI/HDMI with IP Control POV Camera **Replaces GEN3G-200** with 4mm CS lens

MPN: GEN3G-IPC-200 SKU: GEN3G-IPC-200

$791.67

When it comes to genlock – the GEN3G-IPC-200 is the new king of POV solutions. This tiny POV camera is capable of outputting a simultaneous genlockable FHD HDMI and SDI signal through a upgraded SONY CMOS sensor. Aida have also added the new community-favourite VISCA over IP technology to allow users to control the camera through RJ45, as well as PoE+ power with the included adapter.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

The GEN3G-200 was Aida's first staple into the broadcasting world, and they want to repay it with a refresh that will surely change the way its used! The GEN3G-IPC-200 brings everything you love from the GEN3G-200, with a refreshed Sony CMOS sensor, camera control via VISCA over IP, and your favourite way to sync to directly to any Tri-Level Sync Generator like their TGEN-6P. Continue the legacy by staying locked IN at all times with this new and improved camera!

Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
Advanced digital image processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
Tri level sync Gen-lock synchronizes GEN3G cameras and other system components for seamless vertical interval switching between sources.
3G/HD-SDI & HDMI seamless video performance.
Compatible with other industry leading products, conforming with
SMPTE 424M/292M standard.
Self-Adaptive Resolution Feature captures your reference feed instantly.
Black Level Set-up provides the better color transition from digital to analog.
VISCA over IP enabled to allow for easier communication over ethernet wire, as well as traditional RS485 communication.
Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses.
Flawlessly relays embedded audio via SDI & HDMI.
Controllable camera parameters through our free AIDA IPC Program.
Versatile, compact, and rugged design.

VIDEO

Image Sensor: 1/2.8 inch Progressive CMOS
Sensor Size: 5.641mm x 3.216mm (16:9)
Effective Pixels: Horizontal: 1920, Vertical: 1080
Pixel Size: 2.9 μm (H) x 2.9 μm (V)
Resolution: 1080p & 1080i: 1920 x 1080 720p & 720i: 1280 x 720
Resolution Rate: 1080 60p/59.94p/50p/30p/29.97p/25p/24p 1080 60i/59.94i/50i
720 60p/59.94p/50p

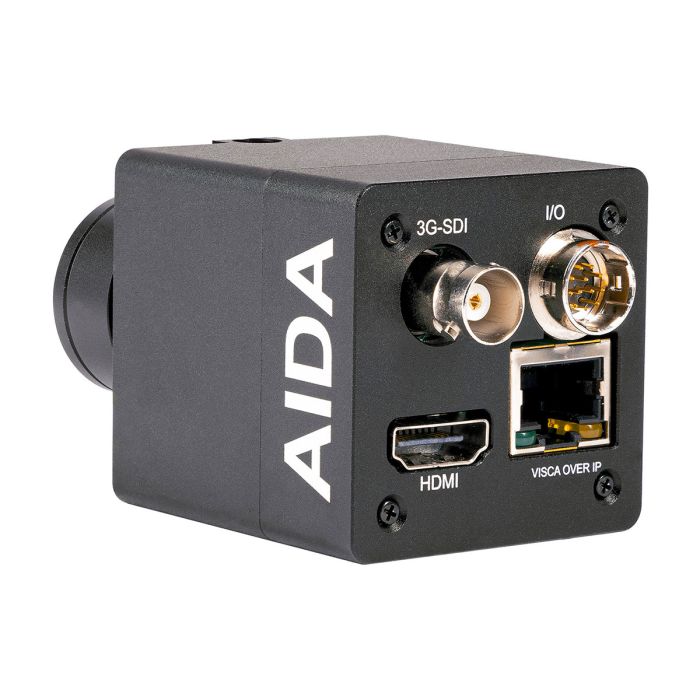

Output: HD-SDI/3G-SDI (1BNC), HDMI 1.3a
Colour Space: 4:2:2 (YCbCr) 10bit
Min. Illumination: 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
White Balance: Auto & Manual (9,000 K - 11,000 K)

LENS

Lens: C/CS Mount (Default 4mm HD Lens)

AUDIO

Input: 3.5mm Analog Audio Input through I/O Cable
Sample Rate: 16/24/32 Bits

STANDARD

SMPTE: SMPTE 292M, SMPTE 424M

SYNCHRONIZATION

Gen-lock: External Tri-Level Input (IN / OUT)

PHYSICAL

Camera Control: RS-485, OSD Button
Operation Temp: 32° F - 104° F
Dimension: 88.90mm x 44.45mm x 44.45mm /
3.50” x 1.75” x 1.75” (With default 4mmLens)
Weight: 170g / 0.37lbs (With default 4mm Lens)
Power: 12VDC (+9 - +15VDC) (PoE+ injector possible)
