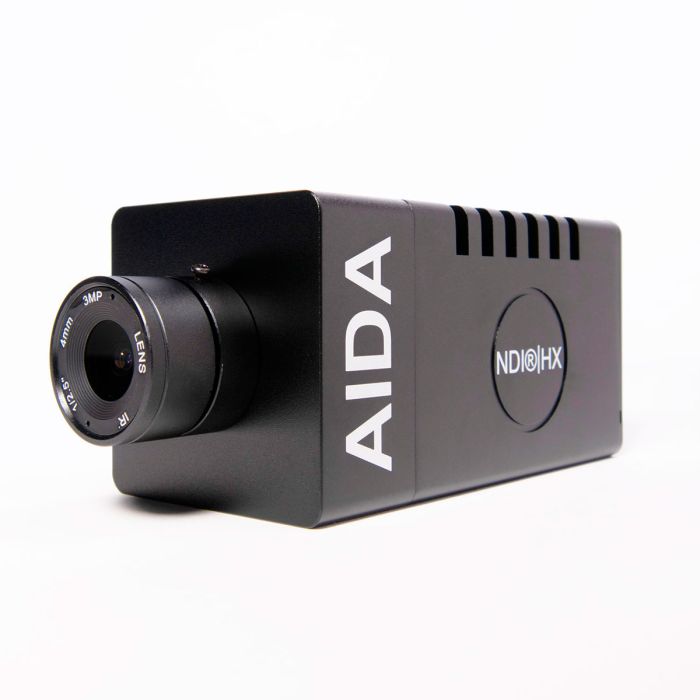

Aida Imaging HD-NDI-200 POV Camera
FHD NDI®|HX/HDMI/IP/SRT PoE POV Camera with 4mm CS lens
SKU: HD-NDI-200
The true conception of AIDA meeting NDI. The HD-NDI-200 was designed as the perfect on the go NDI|HX2 camera, ranging from its formidable size and easy connectivity. Harness the power of NDI|HX2 through the first true POV experience AIDA has to offer.
Ask our team about our Price Match Pledge.
Get in touchIn stock
Usually Ships in 1-2 Days
The NDI|HX POV camera that started it all. The HD-NDI-200 is a compact Full-HD camera, which features a 1/2.8″ progressive CMOS sensor that captures crystal clear imaging in various lighting scenarios. Coming with both an HDMI and RJ45 port for simultaneous streaming options, there is nothing the HD-NDI-200 can’t do! (besides your taxes)
This was the true conception of AIDA meeting NDI. Harness the power of NDI|HX through AIDA’s world renowned POV form factor.
No-Hassle Integration
The HD-NDI-200 comes pre-loaded with its NDI|HX license key. That means less time figuring out whether the activation key has an I or l, and more time streaming.
Run power, video, and control over 1 cable
With PoE support, simplify your cable setup with just 1 ethernet cable. As we like to say; less mess, less stress.
Tally Light Integration
Have your talents know when the light is being shined on them. The HD-NDI-200 comes with a small discreet tally light next to the lens, ensuring there’s no more awkward stares during your broadcast.
No Complex Web UI Here
Control and preview your camera settings using the cameras IP address, allowing for adjustable shutter, white-balance, and much more on the fly.
Adjustable CS/C Mount Lens
Lets face it, sometimes 4mm is just not enough to get the job done. With a native CS mount type mount, the HD-NDI-200 can utilize other HD lenses such as our CS6.0F, or CS-0550V.
1/4"-20 Mount Here, and There
The HD-NDI-200 comes standard with two 1/4″-20 standard tripod mounts on the top and bottom of the camera. Placing the camera has never been easier.
- Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX2/HDMI video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- Versatile design with top and bottom tripod mounts for unique shot creation.
- OSD breakout cable provides power or control over serial RS485 communication.
- Flawlessly relays multi-channel embedded audio via NDI®|HX2
- Perfectly suited for beginning and existing NDI® Setups.
VIDEO
- Image Sensor: 1/2.8” Progressive CMOS
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.9 μm (H) x 2.9 μm (V)
- Resolution: 1080p & 1080i, 720p
- Resolution Rate: 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p 1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p - Output: HDMI, RJ45, NDI®|HX2
- IP Rate: 1920 x 1080 @ 3~60
1280 x 720 @ 3~60
1024 x 576 @ 3~60
620 x 360 @ 3~60 - Colour Space: 4:2:2 (YCbCr) 10bit
LENS
- Lens: C/CS Mount (Default 4mm HD Lens)
AUDIO
- Input: 3.5mm Analog Audio Input through I/O Cable
- Sample Rate: 16/24/32 Bits
STANDARD
- SMPTE: SMPTE 292M, SMPTE 424M
SYNCHRONIZATION
- Gen-lock: External Tri-Level Input
PHYSICAL
- Camera Control: Protocol: VISCA RS485, VISCA Over IP Control: OSD Button or Web UI
- Operation Temp: 32° F - 104° F
- Dimension: 54mm x 54mm x 127mm /
2.125” x 2.125” x 5” (With default 4mmLens) - Power: 12VDC (+9 - +15VDC)/ POE
- I/O Breakout Cable
- 4mm Megapixel Lens (Pre-Installed)
- DC 12v Power Supply & Sockets Adapter
- USB Cable
- C-Mount Cap Adapter
- Sensor Cap
