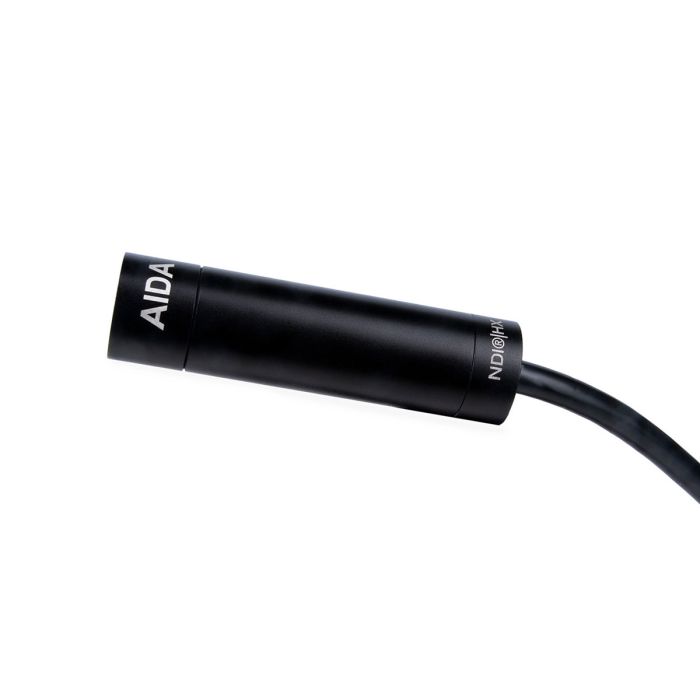

Aida Imaging HD-NDI-MINI Weatherproof Cylinder POV Camera
FHD NDI®|HX/IP/SRT PoE Weatherproof Cylinder POV Camera with 4mm M12 lens
SKU: HD-NDI-MINI
NDI®|HX Compatible FHD WP Lipstick Camera
The most discreet NDI|HX camera has to be the HD-NDI-MINI. With its weatherproof barrel design, the HD- NDI-MINI is protected where it is stashed. From the highs of rafters, to the inside of pylons, the HD-NDI-MINI is the ultimate addition to any NDI workflow.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The smallest NDI|HX lipstick Camera to date!
It really doesn’t get any smaller then this. Introducing the most discreet, NDI|HX camera AIDA has to offer. With its weatherproof barrel design, the HD-NDI-MINI is well protected against dust and moisture. Packed with a progressive CMOS sensor, this little camera can output 1080 60p video through your standard IP protocols, SRT, and most importantly, NDI|HX. With a tripod mount located on the bottom of the camera, there is no place the MINI can’t go.
Pucker up, its showtime!
No-Hassle Integration
Of course the HD-NDI-MINI comes pre-loaded with its NDI|HX license key. Would it be any different?
Weatherproof Protected
The camera’s rated IP67, which allows it to be free from dust and moisture. You can even submerge the camera up to 1M for up to 30 minutes.
10ft Weatherpoof I/O cable
Just like its brother, the HD-NDI-MINI comes with a well protected 10ft/3m weatherproof cable, protecting its wires vigilantly.
Simultaneous IP Streaming
As always, simultaneously streaming of NDI®|HX, SRT, RTSP and RTMP is a given. That’s just the way the MINI rolls.
- Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- Compact design used for discreet, hard to reach POV shots unobtainable by larger cameras.
- M12 type lens for an even smaller form factor
- Weatherproof rating allows for extra protection against environmental
elements. - Barrel design for better weatherproofing and fitment.
- Perfectly suited for outdoor shots any new or existing NDI®|HX setup.
VIDEO
- Image Sensor: 1/3 inch Progressive CMOS
- Sensor Size: 5.346mm x 3.003mm (16:9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.75 μm (H) x 2.75 μm (V)
- Resolution: 1080p & 1080i, 720p
- Resolution Rate: 1080 60p/59.94p/50p/30p/29.97p/25p/24p 1080 60i/59.94i/50i
720 60p/59.94p/50p - Output: IP (NDI|HX/SRT/RTMP/RTSP)
- Colour Space: 4:2:2 (YCbCr) 10bit
- Min. Illumination: 0.2Lux (Day), 0.1Lux (Night)
- White Balance: Auto & Manual (9,000 K - 11,000 K)
LENS
- Lens: M12 (Default 4mm HD Lens with WP CAP)
STANDARD
- IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX
PHYSICAL
- Camera Control: Protocol: VISCA Over IP
- Operation Temp: 32° F - 104° F
- Dimension: 90mm x 24mm
3.5” x 0.94” (with default WP cap) - Weight: 180g / 0.39lbs (With default 4mm Lens)
- Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
- PoE Dongle Adapter
- DC 12v Power Supply & Sockets Adapter
- 4mm M12 Lens (Pre-Installed)
