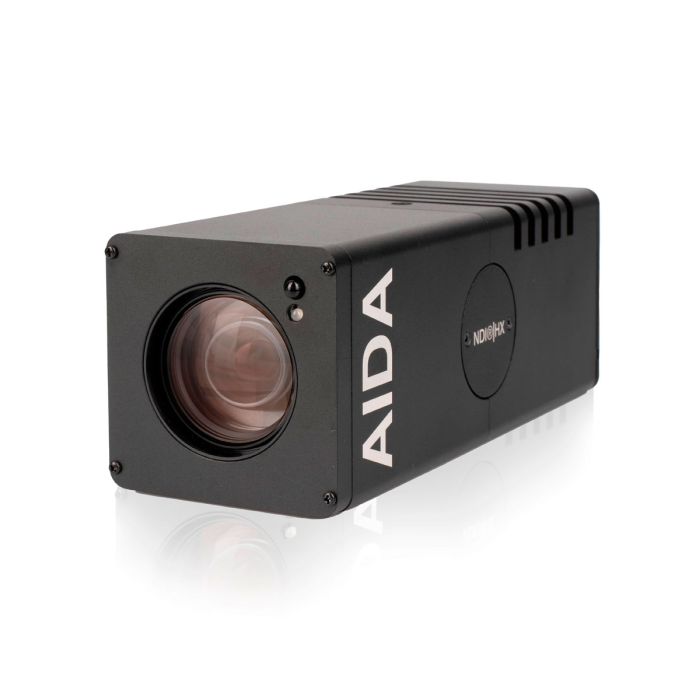

Aida Imaging HD-NDI-X20 Zoom POV Camera

• Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
• Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
• 20x optical zoom for FHD shots over distances of up to 140 ft.
• OSD Breakout cable provides power or control of zoom over serial RS485 communication.
• Flawlessly relays multi-channel embedded audio via NDI®|HX.
• Perfectly suited for beginning and exisisting NDI® setups.
• PoE Compatible to ease cable runs with 1 ethernet cable.

VIDEO

• Image Sensor: 1/2.8” Progressive CMOS
• Effective Pixels: Horizontal: 1920, Vertical: 1080
• Pixel Size: 2.9 μm (H) x 2.9 μm (V)
• Resolution: 1080p & 1080i: 1920 x 1080 720p & 720i: 1280 x 720
• Resolution Rate: 1080 60p/59.94p/50p/30p/29.97p/25p/24p 1080 60i/59.94i/50i
  720 60p/59.94p/50p
• Output: HDMI, IP (NDI|HX/SRT/RTMP/RTSP)
• Colour Space: 4:2:2 (YCbCr) 10bit
• Min. Illumination: 0.2Lux (Day), 0.1Lux (Night),

OPTICS

• Lens: 20X HD Optical Zoom, F1.5 ~ F3.0
• Field of View: 61° WIDE, 3.4° TELE’d

AUDIO

• IP Protocol: 3.5 TRS Stereo Audio Port
• Sample Rate: 16/24/32 Bits

STANDARD

• IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX

PHYSICAL

• Camera Control: Protocol: VISCA Over IP
  Control: OSD Button, Web UI or Controller
• Operation Temp: 32° F - 104° F
• Dimension: 171mm x 64mm x 64mm (6.73in x 2.52 in x 2.52 in)
• Weight: 800g / 1.76lbs (with default WP cap)
• Power: 12VDC (+9 - +15VDC) (PoE+ 24Watts)

• Aida HD-NDI-X20
• IR Remote Control
• DC 12v Power Supply & Sockets Adapter
• I/O Breakout Cable
