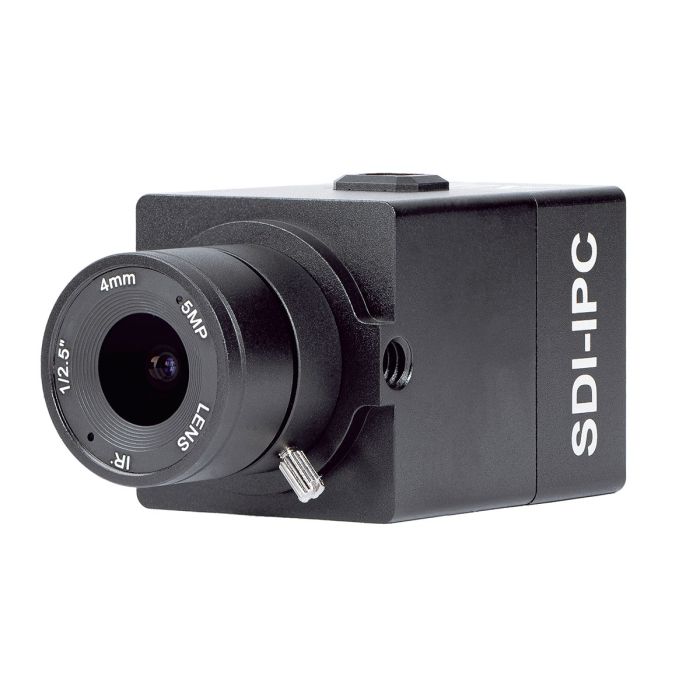

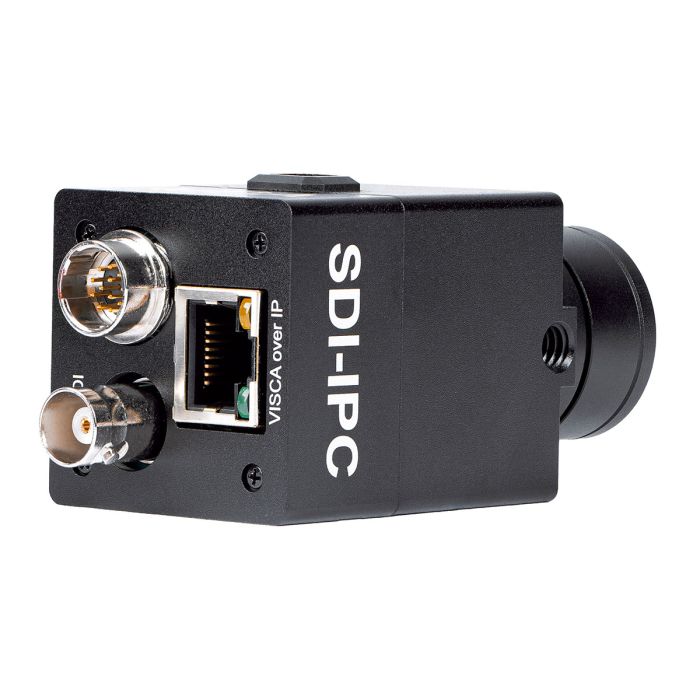

Aida Imaging HD3G-IPC-100A POV Camera
FHD 3G-SDI with IP Control POV Camera with 4mm CS lens
SKU: HD3G-IPC-100A
Immerse yourself in the realm of IP control with Aida's groundbreaking camera series - introducing the SDI IPC Series. Combining their signature small form factor, unbeatable pricing, and unparalleled imaging quality, the SDI-IPC series cameras harness the power of full VISCA over IP control across any network, providing an easier alternative to the prior RS485 Serial Visca.
CHECK OUT OUR BLOG POST - AIDA IMAGING INTRODUCES A NEW RANGE OF 3G-SDI CAMERAS'
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Immerse yourself in the realm of IP control with Aida's groundbreaking camera series - introducing the SDI IPC Series. Combining their signature small form factor, unbeatable pricing, and unparalleled imaging quality, the SDI-IPC series cameras harness the power of full VISCA over IP control across any network, bidding farewell to outdated RS485 wiring.
Available in four distinct variations, the SDI-IPC series stands poised to revolutionize both new and established 3G-SDI setups, offering complete mastery over every aspect. Experience the future of control and elevate your streaming game with the SDI IPC Series.
- Fits any C or CS Mount Inter- changeable lens
- Standard discreet POV look -1/4 20” mounting on top and bottom
- Best all around camera in the series
- Full-HD 1/2.8” Sony Progressive Scan CMOS sensor capable of 1080 60p through 3G-SDI
- VISCA over IP compatible for hardware and software solutions using that protocol. (VISCA UDP, SONY VISCA over IP)
- Versatile designs with tripod mounts for easy and unique shot creation.
- PoE+ adaptable with adapter (comes with purchase of the camera)
- Variants for weatherproofed cameras, capable of IPV54 and above rating
- CS-mount lens, M12 mount lens, and varifocal weatherproof options available.
- Small form-factor and rugged designed makes all video streaming applications possible
- Perfectly suited for indoor or outdoor shots for new or existing workflows.
VIDEO
- Image Sensor: 1/2.8” Progressive CMOS
- Sensor Size: 5.640mm x 3.216mm (16.9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.9 μm (H) x 2.9 μm (V)
- Resolution: 1080p, 1080i, 720p
- Resolution Rate: 1080 60p/59.94/50p/30p/29.97p/25p 24p 1080 60i/59.94i/50i 720 60p/59.94p/50p
- Output: 3G-SDI
- Colour Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 - 11,000 K)
- Audio Input: 3.5mm TRS Stereo Input, Embed over SDI
LENS
- Lens: HD3G-IPC-100A - CS mount 4mm Lens HFOV: 80°
PHYSICAL

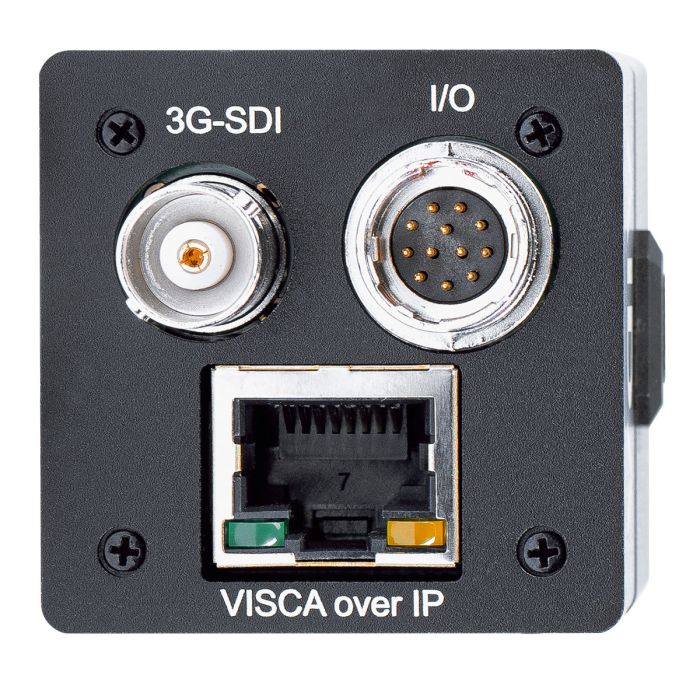

- Camera Control: Protocol: RJ45 (VISCA over IP) RS485 (Serial VISCA)
- Operation Temp: -10°C - 50°C
- Power: 12VDC (+9 - +15VDC)/ POE Adapter Included)
- Power Draw: 6W MAX
- PoE Dangle Adapter
- Dc 12v Power Supply & Sockets Adapter
