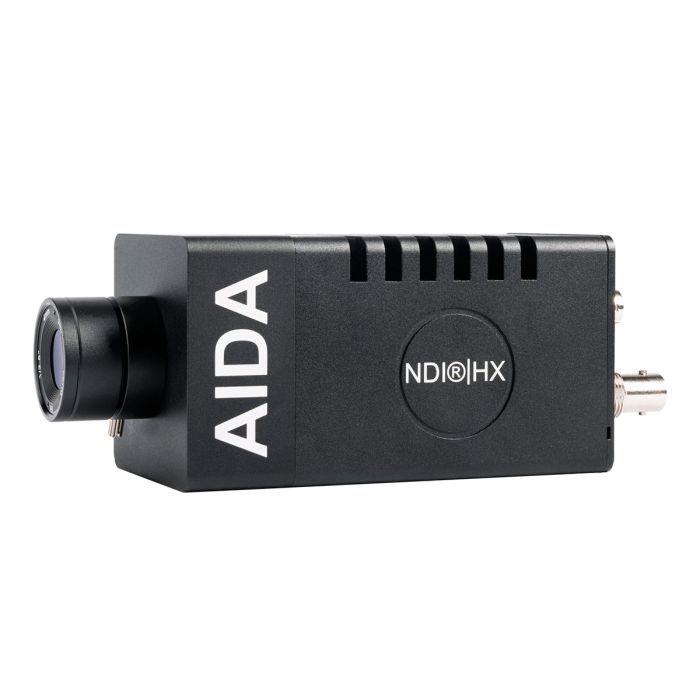

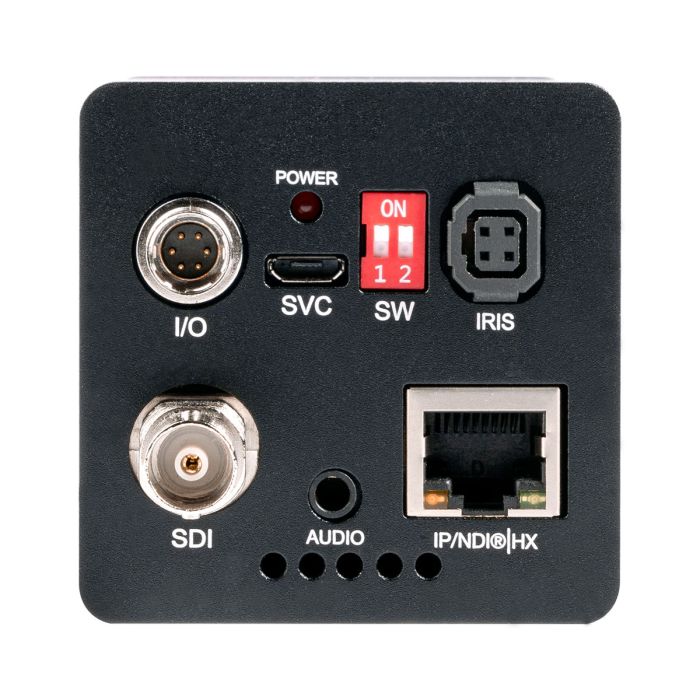

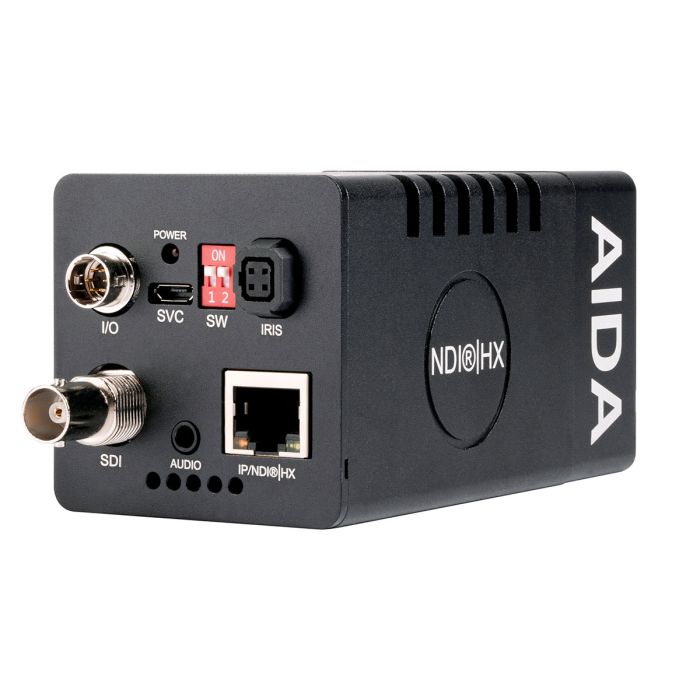

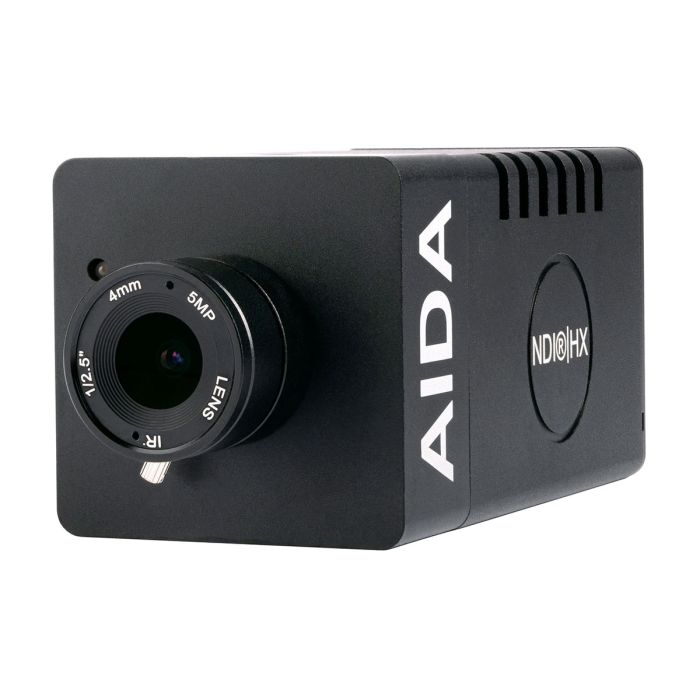

Aida Imaging HD3G-NDI-200 POV Camera

• Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI® HX and 3G-SDI video.
• Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
• Versatile and discreet design perfect for sleek, multi-leveled image capturing in most scenarios.
• OSD breakout cable provides power or control over serial RS485 communication.
• Flawlessly relays multi-channel embedded audio via NDI® HX2
• Perfectly suited for upgrading existing 3G-SDI workflows to IP / NDI® HX capabilities

VIDEO

• Image Sensor: 1/2.8” Progressive CMOS
• Effective Pixels: Horizontal: 1920, Vertical: 1080
• Pixel Size: 2.9 μm (H) x 2.9 μm (V)
• Resolution: 1080p, 1080i, 720p
• Resolution Rate: 1080 60p/59.94/50p/30p/29.97p/25p 24p/23.98p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p
• Output: 3G-SDI, RJ45, NDI® HX2
• IP Rate: 1920 x 1080 @ 3~60
  1280 x 720 @ 3~60
  1024 x 576 @ 3~60
  620 x 360 @ 3~60
• Colour Space: 4:2:2 (YCbCr) 10bit

LENS

• Lens: C/CS Mount (Default 4mm HD Lens)

AUDIO

• Input: 3.5mm TRS Stereo Audio Port
• Sample Rate:  16/24/32 Bits

PHYSICAL

• Camera Control: Protocol: VISCA RS485, VISCA Over IP Control: OSD Button or Web UI
  Operation Temp: 32°F - 104°F
• Dimension: 54mm x 54mm x 127mm / 2.125” x 2.125” x 5” (With default 4mm Lens)
• Power: 12VDC (+9 - +15VDC)/ POE

• I/O Breakout Cable
• DC 12v Power Supply & Sockets Adapter
• 4mm Megapixels Lens (Pre-Installed)
• USB Cable
• C-Mount Cap Adapter
• Sensor Cap
