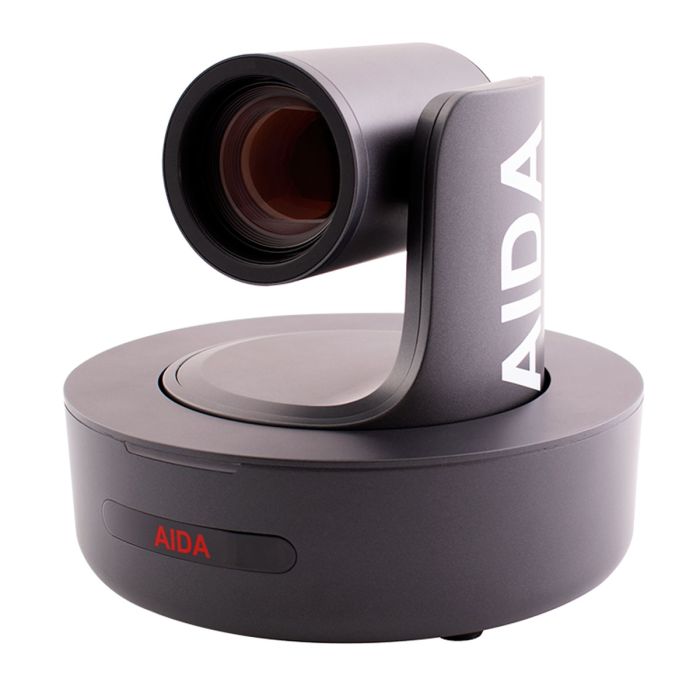

Aida Imaging PTZ-NDI-X12 Full HD NDI|HX2 Broadcast PTZ Camera

Full HD NDI|HX2 Broadcast PTZ Camera with 12x Optical Zoom

MPN: AIDA-PTZ-NDI-X12 SKU: PTZ-NDI-X12

$990.83

The PTZ-NDI-X12 is AIDA’s first camera to utilize NDI|HX2 technology. The camera features Newteks NDI|HX2 to help ease production with seamless video transfer over almost any existing network infrastructure. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. The camera’s cost effective approach makes professional grade PTZ cameras, at the fraction of the price.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually ships in 1-2 days

Capturing The Unreachable with NDI
The PTZ-NDI-X12 is AIDA’s first camera to utilize NDI|HX2 technology. The camera features Newteks NDI|HX2 to help ease production with seamless video transfer over almost any existing network infrastructure. With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. The camera’s cost effective approach makes professional grade PTZ cameras, at the fraction of the price.

NDI|HX2, NewTek’s innovative Network Device Interface technology, is a royalty free standard enabling IP video workflows across Ethernet networks. NDI|HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real time. The NDI|HX2 encoding algorithm is resolution and frame rate independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDI|HX2 also includes tools to implement video access and grouping, bi-directional metadata, tally, and more.

NDI|HX2 streaming capable for low latency video streaming and PTZ control over NDI|HX2 Protocol.
Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
Advanced digital image processor provides vivid and detailed images with full access feature sets.
Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion
video without blur.
3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance.
Power Optical Zoom capability up to 12X.
Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.
Auto White Balance and shutter speed provides the optimized performance in a variety of situations.
Built-in OSD controls for customizable image settings.
Versatile and compact.

Video

Image Sensor: 1/2.5" Progressive CMOS
Effective Pixels: Horizontal: 1920, Vertical: 1080
Pixel Size: 2.13 µm x 2.13 µm
Resolution: 1080p & 1080i: 1920 x 1080
Resolution/Rate:
- 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p/30p/29.97p/25p
IP Rate:
- 1920 x 1080 @ 1~60
- 1280 x 720 @ 1~60
- 1024 x 576 @ 1~60
- 620 x 360 @ 1~60
Output:
- HD-SDI/3G-SDI
- HDMI
- RTSP / RTMP / NDI®|HX2
- USB 3.0 & 2.0
Color Space: 4:2:2 (YCbCr) 10bit
Min. Illumination: 0.1Lux

Function

White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Focus: Auto, Manual
Shutter Speed: 1 to 1/10,000 Sec.

Lens

Lens: 12X HD Optical Zoom, F1.5 ~ F3.0

PTZ

Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s,
Presets: 128 Positions
Field of View: 72.5°

Standard

SMPTE: SMPTE 292M, SMPTE 424M
IP Protocol: TCP/IP, RTSP/RTMP

Physical

Camera Control:
- Protocol: VISCA
- Interface: RS-232C IN & OUT, RJ-45
- Remote Controller
Operation Temp: 32° F - 104° F
Dimension: 155mm x 160m x 170mm / 6.10" x 6.92" x 6.69"
Weight: 1.35kg / 2.97lbs
Power:
- 12VDC (+9 - +15VDC)
- PoE (IEEE802.3af Standard)
