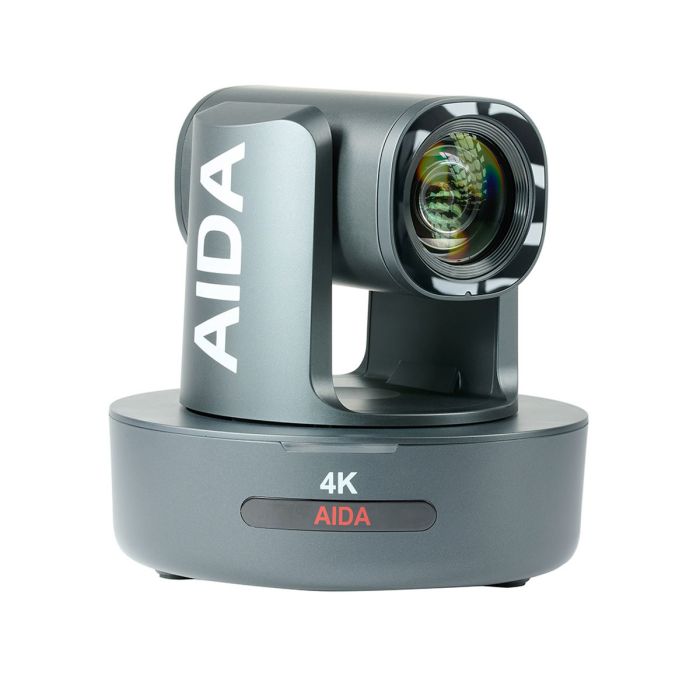

Aida Imaging PTZ4K-NDI-X12B NDI Compatible 4K PTZ Camera
Broadcast/Conference NDI®|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 12X Zoom Black
SKU: PTZ4K-NDI-X12B
With an innate wide zoom angle, to a narrower 12X optical zoomed image, comes the true start to a journey in a 4K workflow. Discover 2160p quality through NDI HX, HDMI, or both. Garner the attention of your viewers through the sheer detail of what is the PTZ4K-NDI-X12.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
PTZ cameras are the bread and butter of dynamic live production shots. It doesn’t matter where the PTZ is placed, this camera will see it all. Equipped with 12x optical zoom, the PTZ-NDI-X12 has a plethora of camera features, ranging from camera control to simultaneous Full-HD Outputs to NDI|HX. This camera was made for broadcast application, huddle rooms, or houses of worship. When it comes to the PTZ-NDI-X12 to step up to the plate, we can guarantee you it will perform.
- NDI® HX streaming capable for low latency video streaming and PTZ control over NDI® HX Protocol.
- 4K SONY CMOS sensor for crystal clear video up to 60 frames, even in less than ideal video conditions.
- Advanced digital image processor provides vivid and detailed images with full access feature sets.
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
- Simultaneous 4K60p over HDMI and NDI®|HX/SRT/RTSP/RTMP*
- Simultaneous 4K60p over HDMI and USB3.0*
*(Disclaimer: USB and NDI® HX/IP streams will not output simultaneously.) - 4K 12X optical zoom module with wide viewing angle, perfect up to 80ft.
- 3.5mm Line-in for no audio/video delay over HDMI/IP/NDI protocols.
- Built-in OSD controls for customizable image settings.
- Cost-effective 4K PTZ for entry-level studios looking for UHD quality.
- Comes in either a White or Black shell for further customization
- Features our new AI algorithm operated Motion autotracking feature.
Video
- Image Sensor: 1/1.8” Progressive CMOS
- Effective Pixels: Horizontal: 3840, Vertical: 2160
- Pixel Size: 2.0 μm (H) x 2.0 μm (V)
- Resolution: 2160, 1080p & 1080i: 3840x2160, 1920 x 1080
- Resolution/Rate:
- 2160 60p/59.94p/50p/30p/29.97p/25p 24p/23.98p
- 1080 60p/59.94p/50p/30p/29.97p/25p 24p/23.98p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p/30p/29.97p/25p
- Output:
- HDMI
- NDI® HX / RTSP / RTMP / SRT
- USB 3.0
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.1Lux
Function
- White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor, Temperature
- Focus: Auto, Manual
- Shutter Speed: 1 to 1/10,000 Sec.
- Autotracking: A.I. Algorithm Facial Target Tracking
Lens
- Lens: 12X 4K Optical Zoom
- Focal Length: 3.4~40.3mm
- Viewing Angle: 80.5° (wide) ~ 7.6° (tele)
PTZ
- Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
- Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s,
- Presets:
- 128 Positions (via web)
- 10 Positions (via remote)
Audio
- Input: 3.5mm TRS Stereo Audio Port
- Sample Rate: 16/24/32 Bits
Physical
- Camera Control:
- Protocol: VISCA, VISCA over IP, NDI
- Interface: RS-232C IN & OUT, RJ-45
- Remote Controller
- Operation Temp: 32° F - 104° F
- Dimension: 197mm x 197m x 176.5mm / 7.75” x 7.75” x 7.3”
- Weight: 2.1kg / 4.63lbs
- Power:
- 12VDC (+9 - +15VDC)
- PoE: (IEEE802.3at Standard Required)
- Aida Imaging PTZ4K-NDI-X12
- Remote Controller
- Camera Mounting Bracket
- Power Adapter & Cable
- Safety Harness
