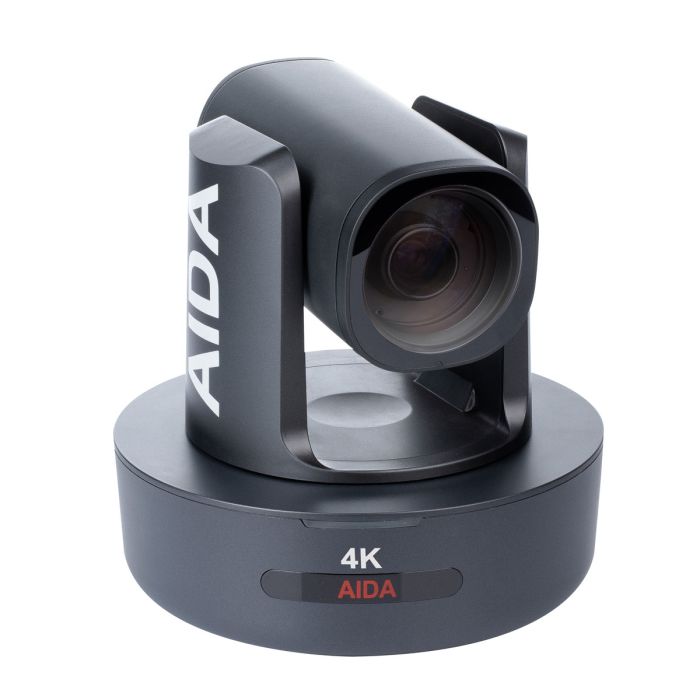

Aida Imaging PTZ4K-NDI-X30B NDI Compatible 4K PTZ Camera
Broadcast/Conference NDI®|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 30X Zoom Black
SKU: PTZ4K-NDI-X30B
The PTZ4K-NDI-X30 allows you to reinvision your ideas into 4K. Coming packed with outputs via HDMI, NDI®|HX, and USB 3.0 at 4K60p, and being complemented by a gorgeous 4K 1/1.8” Sony CMOS Sensor, this camera outputs 4K 60p video effortlessly.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The PTZ4K-NDI-X30 allows you to reinvision your ideas into 4K. Coming packed with outputs via HDMI, NDI®|HX, and USB 3.0 at 4K60p, and being complemented by a gorgeous 4K 1/1.8” Sony CMOS Sensor, this camera outputs 4K 60p video effortlessly.
The PTZ4K-NDI-X30 features a 4K 30x optical zoom module capable of capturing video over 150 ft / 50M. The camera also includes your standard AIDA settings, like preset speeds, user- friendly webUI, and other IP protocols such as SRT, RTSP, RTMP, and direct to social media streaming. Have full control over each setting using VISCA over IP, SONY VISCA RS232, or NDI®.
You know what they say, once you go 4K , you will never see Full- HD the same again.
- NDI®|HX streaming capable for low latency video streaming and PTZ control over NDI®|HX Protocol.
- 4K SONY CMOS sensor for crystal clear video up to 60 frames, even in less than ideal video conditions.
- Advanced digital image processor provides vivid and detailed images with full access feature sets.
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
- Simultaneous 4K60p over HDMI and NDI®|HX/SRT/RTSP/RTMP!*
- Simultaneous 4K60p over HDMI and USB3.0*
*(Disclaimer: USB and NDI®|HX/IP streams will not output simultaneously.) - 4K 30x Optical Zoom Module capable of capturing video up to 150ft/50
meters from your subject. - 3.5mm Line-in for no audio/video delay over IP/NDI protocols.
- Built-in OSD controls for customizable image settings.
- Cost-effective 4K PTZ for entry-level studios looking for UHD quality.
- Comes in either a White or Black shell for further customization
Video
- Image Sensor: 1/1.8” Progressive CMOS
- Effective Pixels: Horizontal: 3840, Vertical: 2160
- Pixel Size: 2.0 μm (H) x 2.0 μm (V)
- Resolution: 2160, 1080p & 1080i: 3840x2160, 1920 x 1080
- Resolution/Rate:
- 2160 60p/59.94p/50p/30p/29.97p/25p 24p/23.98p
- 1080 60p/59.94p/50p/30p/29.97p/25p 24p/23.98p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p/30p/29.97p/25p
- Output:
- HDMI
- NDI® HX / RTSP / RTMP / SRT
- USB 3.0
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.1Lux
Function
- White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor, Temperature
- Focus: Auto, Manual
- Shutter Speed: 1 to 1/10,000 Sec.
Lens
- Lens: 30X 4K Optical Zoom
- Focal Length: 6.91~214.64mm
- Viewing Angle: 59° (wide) ~ 1.98° (tele)
PTZ
- Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
- Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s,
- Presets:
- 128 Positions (via web)
- 10 Positions (via remote)
Audio
- Input: 3.5mm TRS Stereo Audio Port
- Sample Rate: 16/24/32 Bits
Physical

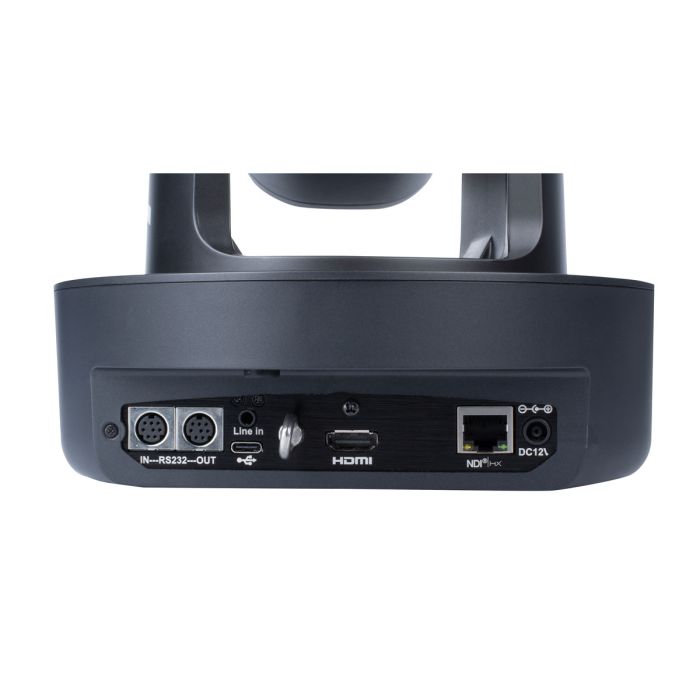

- Camera Control:
- Protocol: VISCA, VISCA over IP, NDI
- Interface: RS-232C IN & OUT, RJ-45
- Remote Controller
- Operation Temp: 32° F - 104° F
- Dimension: 197mm x 197m x 176.5mm / 7.75” x 7.75” x 7.3”
- Weight: 2.1kg / 4.63lbs
- Power:
- 12VDC (+9 - +15VDC)
- PoE: (IEEE802.3at Standard Required)
- Aida Imaging PTZ4K-NDI-X30
- Remote Controller
- Camera Mounting Bracket
- Power Adapter & Cable
- Safety Harness
