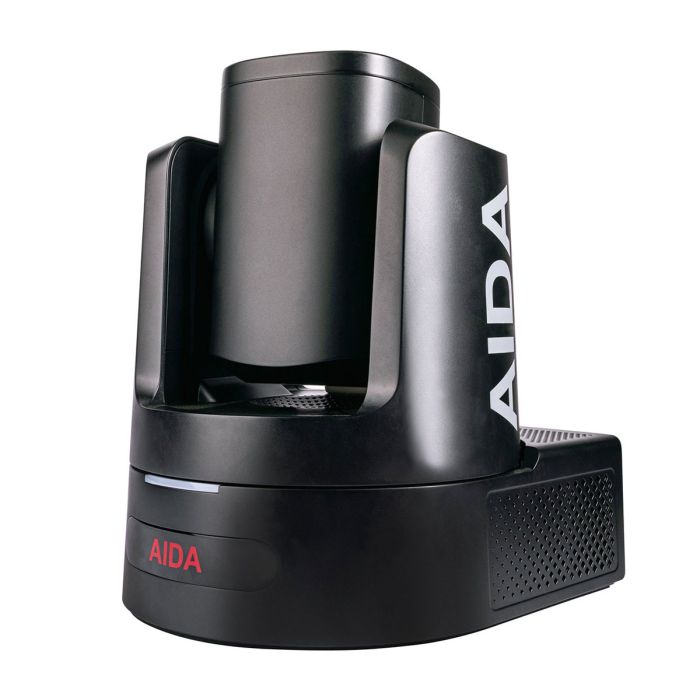

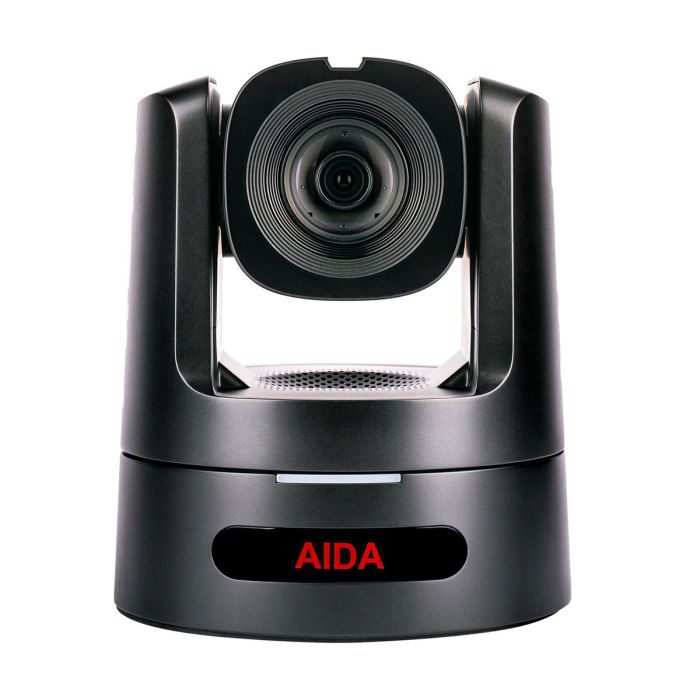

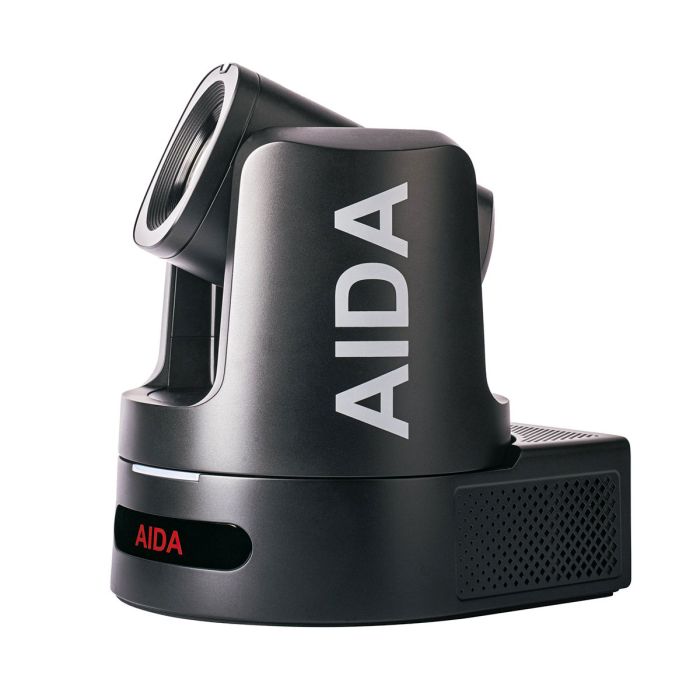

Aida Imaging PTZ4K12G-FNDI-X30B PTZ Camera

Broadcast/Conference 4K Full Bandwidth NDI® 12G & 3G-SDI/HDMI/USB/SRT/IP/NDI® HX/HX3, Auto-tracking, FreeD, Genlock, SFP+, XLR, SD recording, 30X Zoom PTZ Camera - Black

SKU: PTZ4K12G-FNDI-X30B

$3,166.67

The ultimate professional broadcast grade PTZ in the market - featuring our brand new PTZ4K12G- FNDI-X30. This camera boasts a 4K 9MP 1/1.8” Sony CMOS sensor, 30X optical zoom module, and a plethora of outputs and functionalities to help boost streaming capabilities, and uncap creativity. From 12G-SDI to Full Bandwidth NDI®, from Genlock to AI-Based Autotracking, this camera will elevate any streaming workflow to unparalleled heights with its unwavering versatility and unmatched excellence to help you get the shot, and get creative.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

The PTZ4K12G-FNDI-X30 – our finest PTZ crafted with unwavering dedication and a singular focus on excellence. This marvel transcends the ordinary, emerging as the undisputed champion on the battlefield of visual creation. With boundless potential and a plethora of features, it stands as a testament to our relentless pursuit of visual inspiration.

Why create such a camera, you might wonder? The answer lies in our commitment to revolutionize the landscape of professional live streaming. The PTZ4K12G-FNDI-X30 isn’t just a tool; it’s a gateway to unparalleled creativity and unparalleled performance. Prepare to shatter the confines of conventional streaming and unlock a new era of excellence, all at an unmatched value.

And for those of you who are really curious – 4K 60fps HDMI, 12G-SDI, SFP+, Full Bandwidth NDI®, NDI® HX, NDI® HX3, USB-C, IP Streams, SRT, 3.5mm Line Level Input, MINI XLR input with Phantom Power, FreeD protocol, SD Recording, Genlock, Autotracking, and that familiar AIDA webUI that pieces it all together.

Full Bandwidth NDI®, 12G-SDI & SFP+!
Adding to your arsenal is our newly introduced Full Bandwidth NDI®, 12G-SDI, and SFP+ camera. Getting 4K video with immense quality has never been easier!

Visually Stunning
Built to last, the PTZ4K12G-FNDI-X30’s hardened aluminum build and size are meant to outlast any competition.

Auto-Tracking Enabled!
Seen in our PTZ4K / PTZ-NDI3 cameras, Auto-Tracking feature can be enabled via the web UI!

*Actual Autotracking Footage (Compressed to H.264 / 1mb)

It's got Talent!
To further ease production workflows, a giant colored tally above the lens makes your talent’s know when its time to shine.

Finally, we got ears.
After lots of feedback, we realize line level input wasn’t enough, so feel free to use the new mini XLR input in the back to embed over your favorite way to stream.

Eye like a Hawk.
Near or Far, the 4K 30X optical zoom module will find you wherever you are!

Let your imagination be FreeD!
Let it all out with Intel’s Free Dimensional Protocol, utilizing PTZ coordinates to create an “unreal” level of immersion to 3D and virtual workflows.

Never out of Sync.
Utilize the genlock port on our PTZ to keep all cameras and hardware in sync at all times!

Tell me you got that, right??
Direct SD recording at timed intervals, or on the fly is the best thing since sliced bread!

Easier to control than a TV remote
With UDP, TCP, ONVIF, PELCO, VISCA, VISCAoverIP, NDI® and HTTP, getting this camera to do your dirty work is simple and effective!

There's never just 1...
The PTZ4K12G-FNDI-X30 comes in both Black and White, aesthetically matching that dream workflow you’ve been cooking up.

The camera utilizes a 4K 9MP UHD Sony CMOS sensor, for enhanced digital imaging beyond, color capture, and realism.
Its workhorse reliability allows you to simultaneously stream out all sources at once.
Control via IR remote, Web UI, or HTTP access for full control over the PTZ.
Beefy design for heating, aesthetics, and durability.
Full Tally Mohawk for talent recognition, and easier broadcast queuing.
Automatically controlled via NDI.
Genlock capable PTZ for no-lag ultrasynced productions where timing is crucial.
SFP+ Fiber port for even more added value to match production needs.
Take in audio over the 3.5mm line in input, or Mini XLR for versatile audio/
video embedment needs.
Capture realism through the virtual world using our FreeD protocol, over all
outputs* *NDI® excluded from FreeD usage
Automatically track targets with ease using our AI-based Autotrack feature.

VIDEO

Image Sensor: 1/1.8” Progressive Sony CMOS
S/N Ratio: ≥50dB
Resolution: 2160p, 1080p, 1080i, 720p
Resolution Rate:
- 12G-SDI
  2160p 60/50/30/29.97/25/24/23.98 fps 1080p 60/59.94/50/30/29.97/25/24/23.98 fps 1080i 60/59.94/50 fps
  720p 60/59.94/50/30/29.97/25/24 fps
- 3G-SDI
  1080p 60/50/30/29.97/25/24/23.98 fps 1080i 60/59.94/50 fps
  720p 60/59.94/50/30/29.97/25/24 fps
- SFP+
  2160p 60/50/30/29.97/25/24/23.98 fps 1080p 60/59.94/50/30/29.97/25/24/23.98 fps 1080i 60/59.94/50 fps
  720p 60/59.94/50/30/29.97/25/24 fps
- HDMI 2.0
  2160p 60/50/30/29.97/25/24/23.98 fps 1080p 60/59.94/50/30/29.97/25/24/23.98 fps 1080i 60/59.94/50 fps
  720p 60/59.94/50/30/29.97/25/24 fps
- USB Type C
  MJPG 2160p30/1080p60/720p60/360p60 H264/265 2160p30/1080p60/720p60/360p60/
- Full Bandwidth NDI® / NDI® HX3 / NDI® HX
  2160p 60/50/30/29.97/25 fps
  1080p 60/59.94/50/30/29.97/25 fps 720p 60/59.94/50/30/29.97/25 fps Substream (locked): 640x360P 30fps~15fps

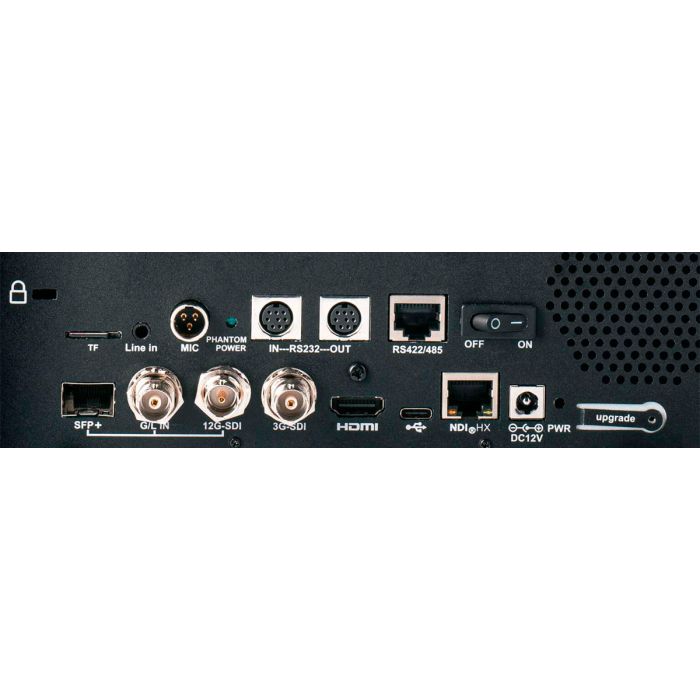

Outputs: 12G-SDI, 3G-SDI, HDMI, USB, SFP+ slot, RJ45 (NDI®, IP, SRT)
Min. Illumination: 0.5Lux (50 IRE Max AGC,1/30, F1.8)
White Balance: Auto/Manual/AT/Push/Indoor/Outdoor/
Color Temp
White Balance: Auto/Manual/Shutter Priority/Iris Priority Brightness Priority
Pan Rotation Angle -170° ~+ 170°
Tilt Rotation Angle -90° ~+ 90° Pan Rotation Speed 0.1° ~+ 80° Tilt Rotation Angle 0.1° ~+ 60°

CAMERA STREAMING MODES (all outputs still simultaneous)

Digital Priority Prioritizes 12G-SDI/HDMI/USB outputs NDI® Dual Mode Prioritizes
NDI / NDI HX(3) to run simultaneously

LENS

Module: 30X UHD Optical Zoom
Lens: f=6.91mm ~ 214.64mm
F-stop: F1.35 ~ F4.6
H-FOV - 60°(wide) ~ 2° (tele)
Min. Focus Dist.: 5ft (tele/wide)

STANDARD

IP Protocols: UDP/TCP/IP/ONVIF/PELCO/VISCA/VISCAOVERIP/SRT RTSP/RTMP/NDI®/HTTP
Audio Input: 3.5 mm line level input
Mini-XLR with 48V phantom Power)

PHYSICAL

Camera Control: Protocol: VISCA Over IP
Operation Temp: 32°F - 104°F
Dimension: 266.7mm x 228mm x 305mm
10.5” x 9” x 12” (when module is straight up)
Weight: 4.59 kg / 10.12lb
Power: 12VDC (+9 - +15VDC) PoE++ Standard (802.3bt)
