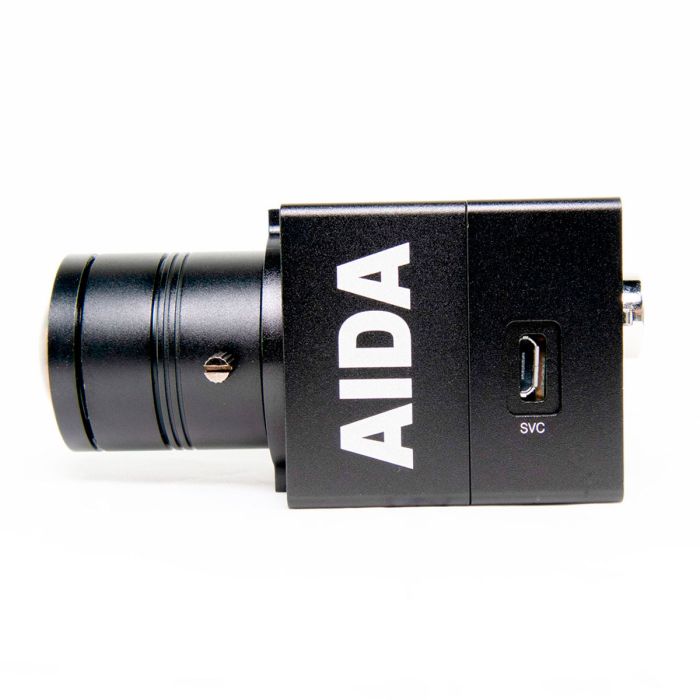

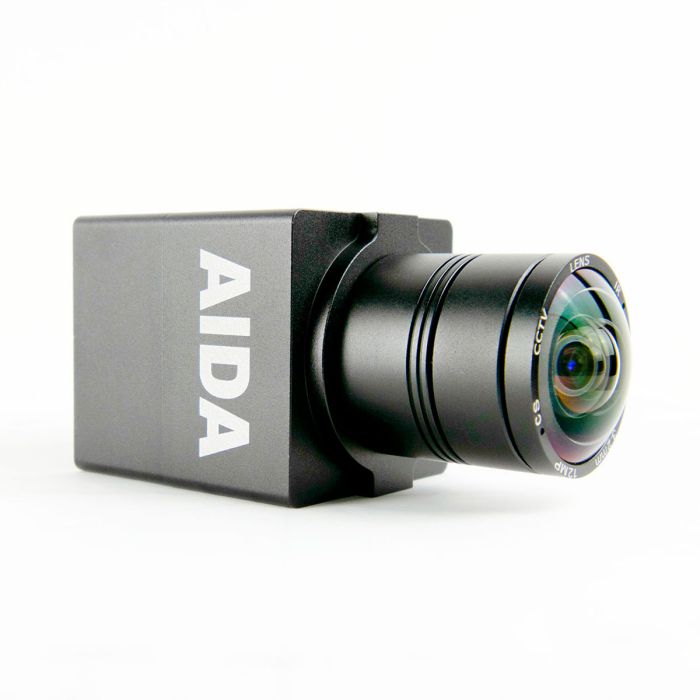

Aida Imaging UHD-100A Micro 4K/UHD HDMI POV Camera
UHD 4K/30 HDMI 1.4 POV Camera with TRS Sterio Audio Input with 3.2mm CS lens
SKU: UHD-100A
The UHD-100A is the world’s most cost effective 4K POV camera solution. With its 4K UHD Progressive Scan CMOS sensor and Digital Image Processor, the UHD-100A produces detailed videos that are sharp and true to colour, while also being able to utilize Dynamic Range, Adaptive White Balance, and motion-compensated temporal noise reduction filter for reduced noise even under low light conditions. The UHD-100A features a compact and rugged form factor with interchangeable lens capabilities, making it highly versatile for various video applications.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Drive your visual inspirations with clarity. The UHD-100A simplifies the creation of video content that requires Ultra-HD quality, ranging from telemedicine to machine vision in its smallest form.
- 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
- Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
- Superb motion-compensated temporal noise reduction filter for motion video without blurring.

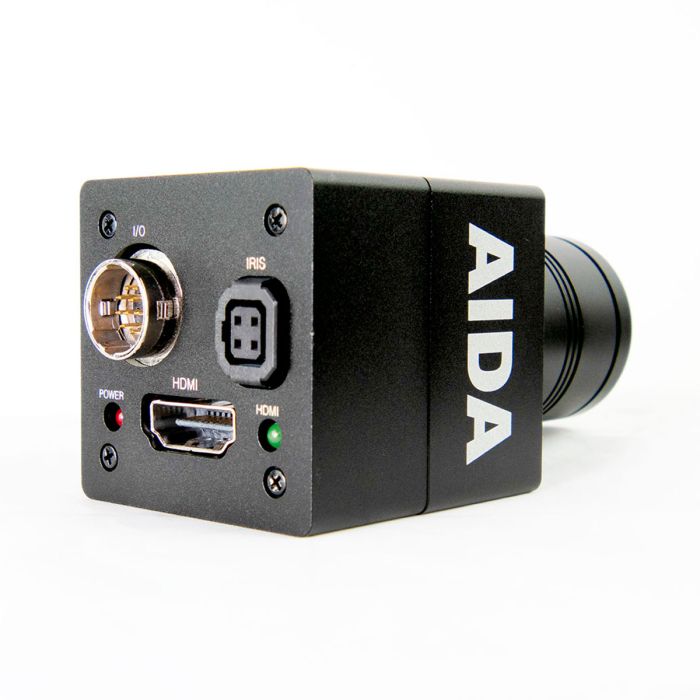

- OSD control breakout cable with power input and RS-485 for remote communication.
- Interchangeable lens design compatible with CS and C mount lenses.
- Perfectly suited for broadcast, pro audio/video, and security.
- Versatile, compact, and rugged design.
- With TRS Stereo Audio Input for embedded audio over HDMI.
VIDEO
- Image Sensor: 1/2.5” Progressive CMOS
- Sensor Size: Diagonal 7.20mm
- Effective Pixels: Horizontal: 3840, Vertical: 2160
- Pixel Size: 1.62 μm (H) x 1.62 μm (V)
- Resolution: 4096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720
- Resolution Rate: 2160 30p/29.97p/25p/24p
1080 60p/59.94p/50p/30p/ 29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/25p - Output: HDMI 1.4
- Colour Space: 4:2:2 (YCbCr) 10bit
FUNCTION
- White Balance: AWB / AE / AF
- Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
- Other: WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,Digital Slow Shutter, Black Level Compensation, Flicker Detection
LENS

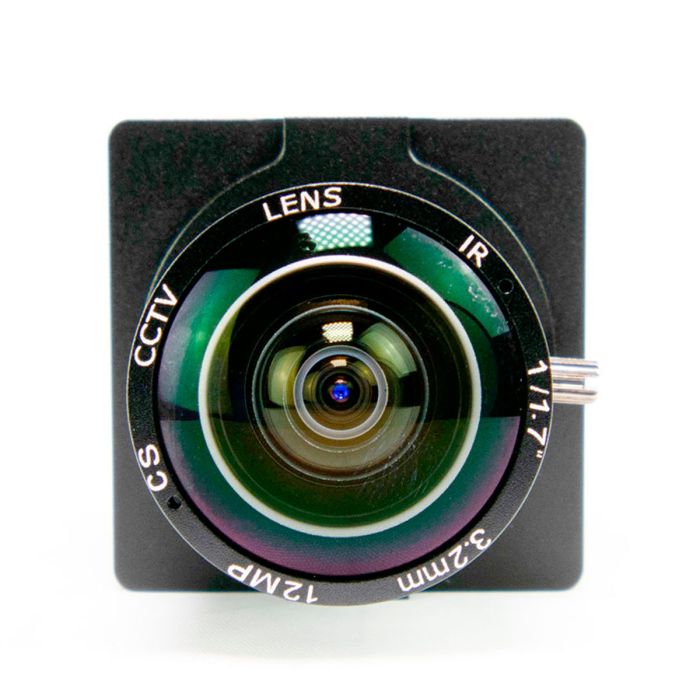

- Lens: C/CS Mount (Default UHD 3.2mm Lens)
AUDIO
- Input: 3.5mm TRS Stereo Mic-in & Line in over I/O Cable
- Sample Rate: 16/24/32 Bits
PHYSICAL
- Camera Control: RS-486, OSD Button
- Operation Temp: 32° F - 104° F
- Dimension: 39mm x 39mm x 50.50mm /
1.53” x 1.53” x 1.99” (With default 4mmLens) - Weight: 140g / 0.30lbs (With default 4mm Lens)
- Power: 12VDC (+9 - +15VDC)
- Aida Imaging UHD-100A
- I/O Breakout Cable
- DC 12v Power Supply & Sockets Adapter
- 3.2mm 12MP 4K Lens (Pre-installed)
