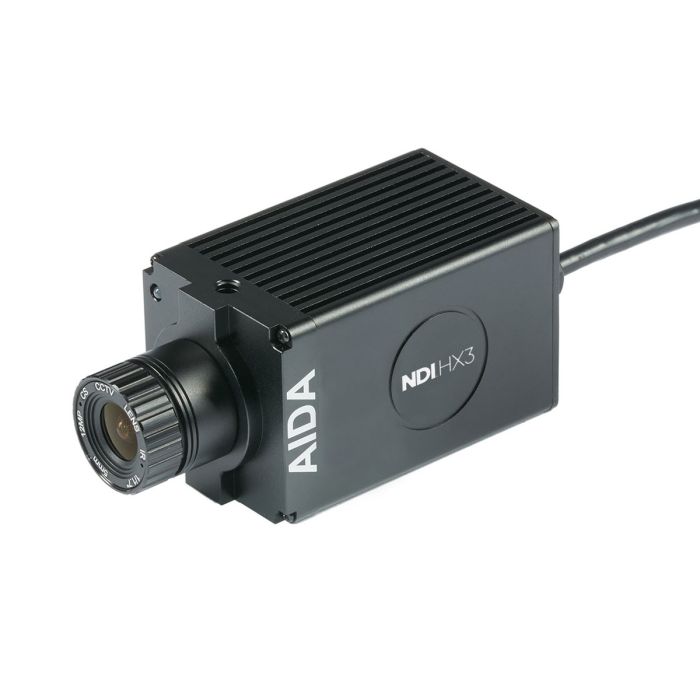

Aida Imaging UHD-NDI3-300 NDI HX3 POV Camera
UHD 4K/60 NDI®|HX3/IP/SRT PoE POV Camera with 12MP 5mm CS lens
SKU: UHD-NDI3-300
The UHD-NDI3-300 features the ability to produce stunning NDI HX3 1080 60fps via its 4K Sony CMOS sensor, exhibiting the clearest Full-HD video over any HX3 network. If you need something a bit more grandeur, you can opt into the cameras 4K 60fps NDI HX, accounting for every detail possible in any frame. You also get the luxury of having a HDMI 2.0 port for output or field tests, set at any resolution you need it at.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Worth the Wait
The UHD-NDI3-300 features the ability to produce stunning NDI HX3 1080 60fps via its 4K Sony CMOS sensor, exhibiting the clearest Full-HD video over any HX3 network. If you need something a bit more grandeur, you can opt into the cameras 4K 60fps NDI HX, accounting for every detail possible in any frame. You also get the luxury of having a HDMI 2.0 port for output or field tests, set at any resolution you need it at.
So ignite your imagination with HD or 4K visual brilliance from the UHD-NDI3-300, pushing the envelope of what is now, next GEN streaming!
HX3 - The Golden Ratio is HX
The UHD-NDI3-300 visualizes crispy Full-HD video by allowing the NDI® stream to run at up to 60mb/s (4x the bitrate of NDI®|HX.) This of course leads to better visual quality, and lowered latency all around, better than HX or a HD sensor can handle.
Let us do the work
Its no surprise that the UHD-NDI3-300 comes with a preloaded NDI license. No effort on your end required.
AIDA's Next Generation 4K Cameras!
The UHD-NDI3-300 brings the next gen POV 2160p resolutions to NDI HX, as well as the newer 1080p HX3.
- 4K 1/2.8” Progressive Scan CMOS sensor capable of capturing 2160p 60fps over NDI®|HX and HDMI
- HX 3 Capable camera outputting up to 1080p 60fps at 60mb, 4 times the amount of HX! Looks even better with a 4K CMOS sensor than HD!
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- Versatile design with top & bottom tripod mounts for uniques shot creation.
- Camera is PoE+ Capable. Just plug in one wire for power, control and video!
- Small form-factor and rugged designed makes all video streaming applications possible
- Small tally light on front of camera to ensure talent of when camera is live or about to be
VIDEO
- Image Sensor: 1/2.8” Progressive CMOS
- Effective Pixels: Horizontal: 3840, Vertical: 2160
- Pixel Size: 2.0 μm (H) x 2.μm (V)
- Resolution: 2160p, 1080p, 1080i, 720p
- Resolution Rate: NDI HX/HDMI ONLY: 2160 60p/59.94/50p/30p/ 29.97p/25p/24p
HX 3: 1080 60p/59.94/50p/30p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p - Output: HDMI/IP (NDI HX3/SRT/RTMP/RTSP)
- Colour Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 - 11,000 K)
LENS
- Lens: 12MP 5mm CS Mount HD Lens FOV: 78°
AUDIO
- Audio Embed: Embed over HDMI and IP streaming
- Input: 3.5mm Line Input
STANDARD
- IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX
PHYSICAL
- Camera Control: Protocol: VISCA Over IP
- Operation Temp: 32°F - 104°F
- Dimension: 85mm x 49mm x 49mm 3.35” x 1.93” x 1.93”
- Weight: 350g / 1 lb
- Power: 12VDC (+9 - +15VDC), PoE+ (standard IEEE802.3at)
- Aida UHD-NDI3-300
- 5.5mm 12MP Lens (Pre-Installed)
- DC 12v Power Supply & Sockets Adapter
- USB Cable
- C-Mount Cap Adapter
- Sensor Cap
