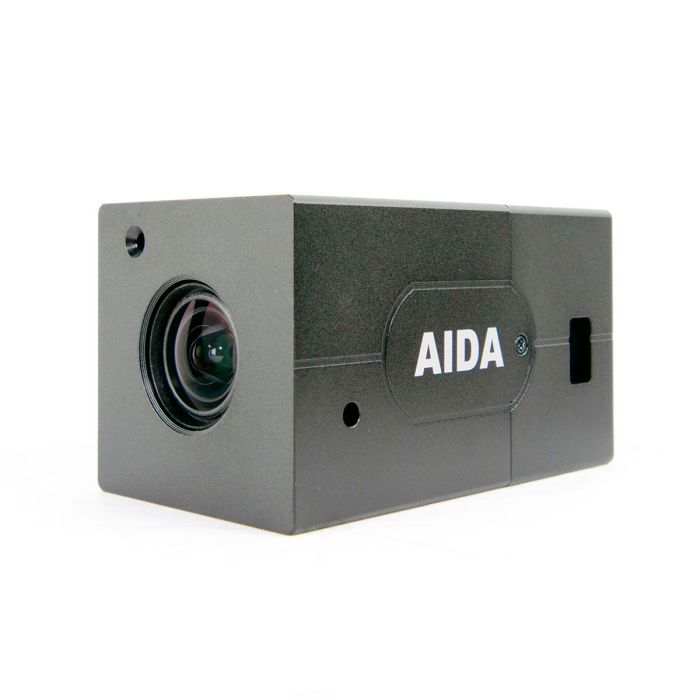

Aida Imaging UHD-X3L 4K HDMI POV Camera

• 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
• 3X optical zoom features 25~78 wide angle of view.
• Built-in zoom lens offers zoom, focus and iris control.
• Advanced digital imaging processor provides vivid and detailed
  images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
• Superb motion-compensated temporal noise reduction filter for motion video without blurring.
• OSD control breakout cable with power input and RS-485 for remote communication.
• Perfectly suited for huddle rooms, broadcast, pro audio/video, and security.
• Versatile, compact, and rugged design.

VIDEO

• Image Sensor: 1/2.5” Progressive CMOS
• Sensor Size: Diagonal 7.20mm
• Effective Pixels: Horizontal: 3840, Vertical: 2160
• Pixel Size: 1.62 μm (H) x 1.62 μm (V)
• Resolution: 2160p: 3840 x 2160
  1080p / 1080i : 1920 x 1080
  720p : 1280 x 720
• Resolution Rate: 4K2160p : 30 / 29.97 / 25 / 24
  1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 1080i : 60 / 59.94 / 50
  720p : 60 / 59.94 / 50
• Output: HDMI 1.4
• Colour Space: 4:2:2 (YCbCr) 10bit

FUNCTION

• White Balance: AWB / AE / AF
• Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
• Other: WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,Digital Slow Shutter, Black Level Compensation, Flicker Detection

LENS

• Lens: 3X Optical Zoom Lens,
  3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)

STANDARD

• SMPTE: SMPTE 292M, SMPTE 424M

PHYSICAL

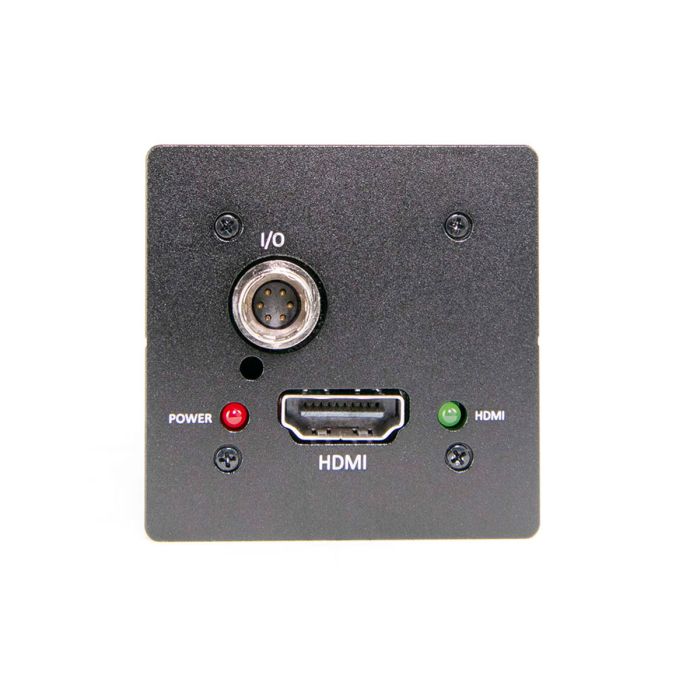

• Camera Control: RS-485, OSD Button
• Operation Temp: 32° F - 104° F
• Dimension: 48mm x 48mm x 83.09mm / 1.89” x 1.89” x 3.27”
• Weight: 140g / 0.30lbs
• Power: 12VDC (+9 - +15VDC)

• Aida UHD-X3L
• Remote Controller
• USB Cable
• I/O Breakout Cable
• DC 12v Power Supply & Sockets Adapter
