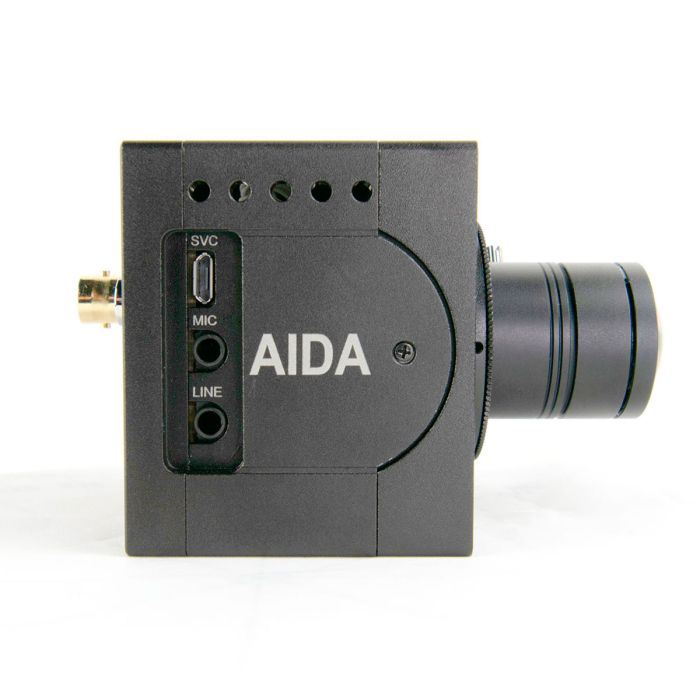

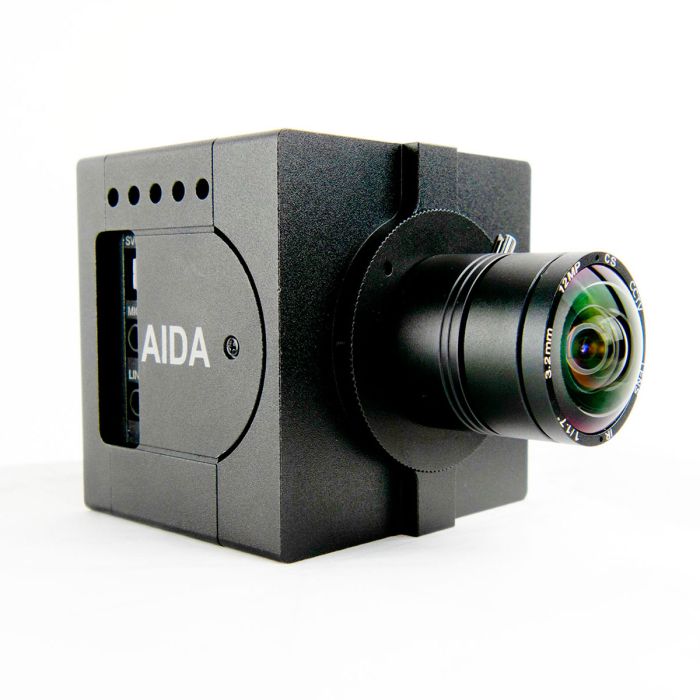

Aida Imaging UHD6G-200 4K/UHD 6G-SDI POV Camera
UHD 4K/30 6G-SDI POV Camera with 3.2mm CS lens
SKU: UHD6G-200
The UHD6G-200 breathes life to any new, or existing SDI infrastructure with versatility, and uniqueness. With its rugged design, you may just forget it’s even there in the studio.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Comfortability with Conformability
The UHD6G-200 breathes life to any new, or existing SDI infrastructure with versatility, and uniqueness. With its rugged design, you may just forget it’s even there in the studio.
- 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
- Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
- Superb motion-compensated temporal noise reduction filter for motion video without blurring.
- OSD control breakout cable with power input and RS-485 for remote communication.
- Flawlessly relays multi-channel embedded audio via SDI.
- Interchangeable lens design compatible with CS and C mount lenses.
- Perfectly suited for broadcast, pro audio/video, and security.
- Conforming with SMPTE 292M, 424M, and 2081-10.
Versatile, compact, and rugged design.
VIDEO
- Image Sensor: 1/2.5” Progressive CMOS
- Sensor Size: 8.365mm X 6.615mm (16:9)
- Effective Pixels: Horizontal: 3840, Vertical: 2160
- Pixel Size: 1.62 μm (H) x 1.62 μm (V)
- Resolution: 3840 x 2160, 1920 x 1080, 1280 x 720
- Resolution Rate: 2160 30p/29.97p/25p/24p
1080 60p/59.94p/50p/30p/ 29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/25p - Output: HD/3G/6G-SDI (BNC)
- Colour Space: 4:2:2 (YCbCr) 10bit
FUNCTION
- White Balance: AWB / AE / AF
- Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
- Other: WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,Digital Slow Shutter, Black Level Compensation, Flicker Detection
LENS
- Lens: C/CS Mount (Default UHD 3.2mm Lens)
AUDIO
- Input: 3.5mm TRS Stereo Audio via Camera Input
- Sample Rate: 16/24/32 Bits
PHYSICAL
- Camera Control: RS-486, OSD Button
- Operation Temp: 15° F - 120° F
- Dimension: 56m x 56mm x 71.90mm / 2.20” x 2.20” x 2.83”
- Weight: 170g / 0.37lbs (With default 4mm Lens)
- Power: 12VDC (+9 - +15VDC)
- Aida UHD6G-200
- I/O Breakout Cable
- 3.2mm 12MP 4K Lens (Pre-Installed)
- DC 12v Power Supply & Sockets Adapter
- USB Cable
- C-Mount Cap Adapter
- Sensor Cap
