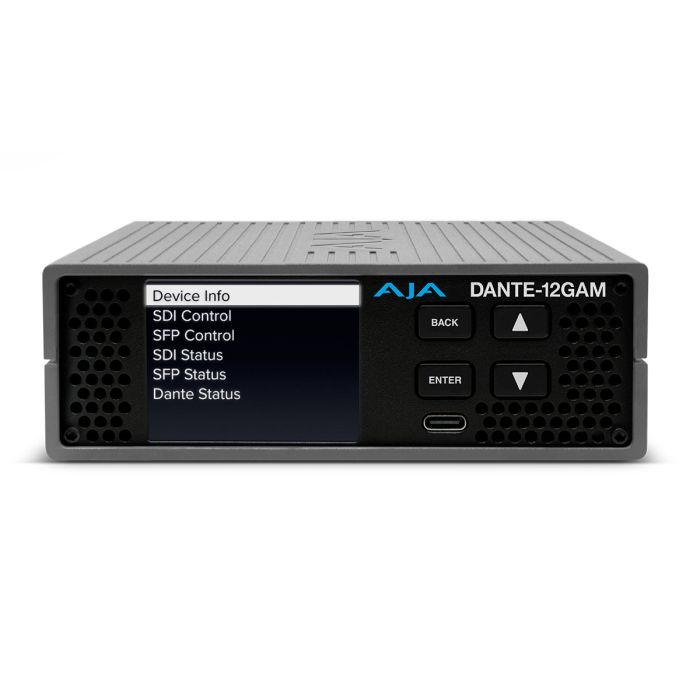

AJA DANTE-12GAM Mini Converter
Dante, AES67 and SMPTE ST 2110-30 SDI Audio Embedder/Disembedder
MPN: DANTE-12GAM SKU: DANTE-12GAM
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The DANTE-12GAM is a high performance Audio over IP (AoIP) Converter, embedding and disembedding SDI audio to a Dante network and back to SDI from Dante audio. Equipped with 12G-SDI input and output and dual etherCON GigE ports, the DANTE-12GAM is capable of simultaneously embedding and disembedding up to 16* channels of audio in and out for a total of 32* audio channels in a compact device.
The DANTE-12GAM is your portal to a vast array of IP audio solutions. Dante networks not only support the Dante audio streams but also support AES67 and SMPTE ST 2110-30 AoIP, providing massive flexibility for all your IP audio needs.
DANTE-12GAM is available with a single channel 12G-SDI input and output, or as two dual channel options: DANTE-12GAM-TR-LC (with LC Fiber SFP) or DANTE-12GAM-TR-BNC (with BNC SFP), which support a total of up to 64 channels of Dante® audio in a compact Mini-Converter form factor. The single channel can be upgraded to the dual channel version at any time via an optional license and the addition of either the BNC or LC Fiber SFP.
No matter the configuration you choose, you can rely on AJA’s legendary build quality and support to give you peace of mind whether you're an individual creator or broadcasting the largest live events.
*up to 64 channels of audio with the dual channel option/upgrade.
Support for 12G/6G/3G/1.5G SDI audio embedding/disembedding to and from the Dante audio ecosystem
Single video channel with independent 12G-SDI Input and Output ports, each supporting 16 audio channels, totaling 32 channels of Dante audio in a compact, portable design
PTPv2, SMPTE ST 2110-30, AES67 compatible

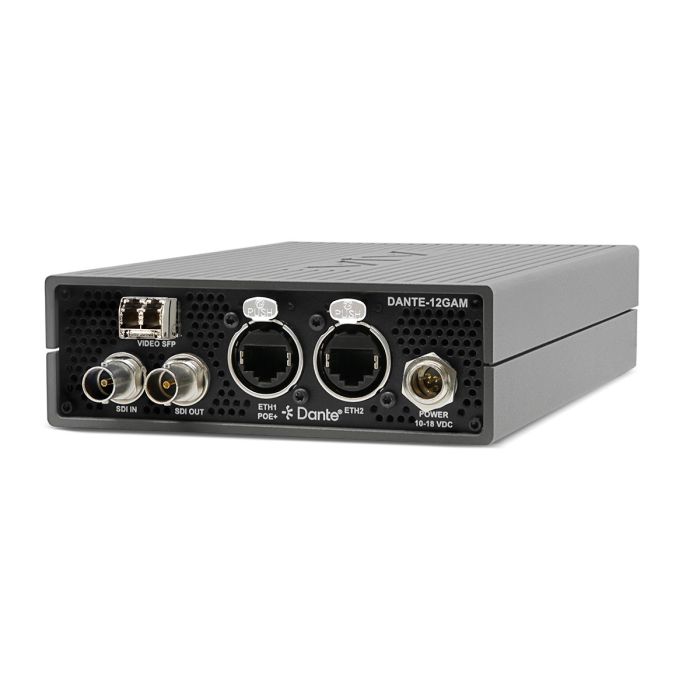

1x Primary and 1x Secondary etherCON GigE ports for Dante network redundancy
PoE+ on Primary Ethernet simplifying wiring
Internal SDI signal generator, which enables transmitting Dante audio channels over SDI without having an external SDI source signal
AJA Web UI support for remote signal status and configuration
USB-C port for initial Static IP configuration using free AJA eMini-Setup software

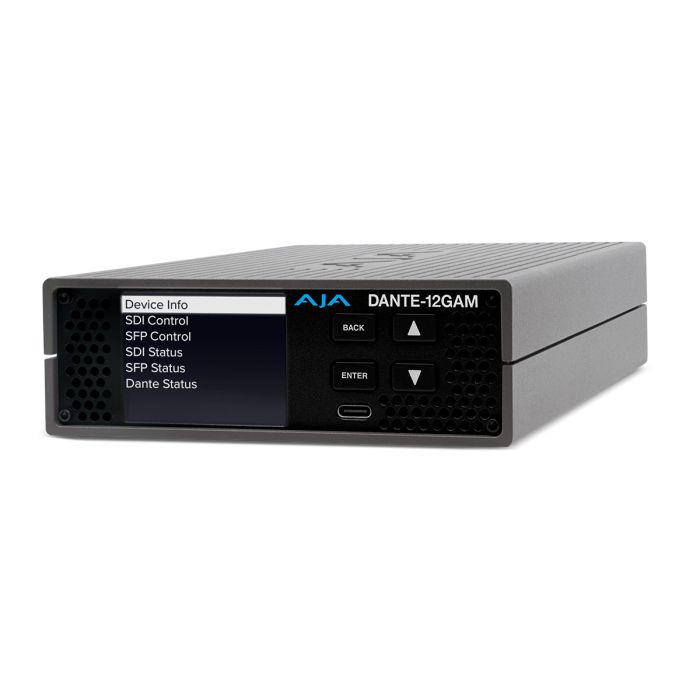

Front-panel LCD information and configuration screen
4x Physical control buttons (Back, Enter, Up, Down)
Upgradable to second video channel via additional SFP and license, expanding support to up to 64-channels
12V, 60W Power Supply Included
Five-year warranty
Video Formats
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- RGB and YCbCr, 4:4:4/4:2:2, 10 or 12-bit
Note: Raster and frame rate dependent; please refer to DANTE-12GAM Video Formats in the Documents.
Video Input Digital
- 1-channel independent 12G-SDI BNC connectors, SMPTE 292/424/2081/2082
- Single Link HD/2K/UltraHD/4K
Video Output Digital
- 1-channel independent 12G-SDI BNC connectors, SMPTE 292/424/2081/2082
- Single Link HD/2K/UltraHD/4K
Internal Signal Generator
- 2x independent internal video signal generators
Cable Equalization (Belden 1694A coax)
- 12 Gbps, 60m
- 6 Gbps, 120m
- 3 Gbps, 180m
- 1.5 Gbps, 200m
Video Path Delay
- Video Latency, time measured between video input and video output connector:
- 12G = 3.2 µsec
- 6G = 3.2 µsec
- 3G level B Dual Link = 6.3 µsec
- 3G level A = 3.2 µsec
- HD (1.5 Gb) = 6.3 µsec
Digital Audio Input/Output
- SDI: 1x independent 12G-SDI BNC connectors, 16 embedded channels each
- DANTE: 1x primary Nuetrik etherCON RJ-45 Connector and 1x secondary Nuetrik etherCon RJ-45 Connector, Up to 32-channels
- Video Optical (TR-LC Option): 1x independent 12G-SDI Fiber LC SFP connector, 16 embedded channels each
- Video Electrical (TR-BNC Option): 1x independent 12G-SDI BNC SFP connector, 16 embedded channels each
SDI Embedded Audio
- SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
- SMPTE 272M (SD): 20-bit, 48 kHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- 4 groups: (16-channels) of audio supported per SDI path
Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
Dante Audio
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Encoding: PCM 16, PCM 24, PCM 32
Audio Latency
- Embed Path: 1500 µsec
- Disembed Path: 1410 µsec
Network Interface
- 2x Nuetrik etherCON RJ-45, 100/1000 Ethernet
- Rest Interface
User Interface
- Onboard LCD display with buttons for enter, back, up, and down operation
- AJA webUI
- DANTE Controller, Dante Domain Manager & Network Management Applications
- USB-C port for initial Static IP configuration using AJA eMini-Setup
Size (w x d x h)
- 5.0" x 8.09" x 1.65" (127 x 205.49 x 41.81 mm)
Power
- Enclosure: 10-18VDC regulated, 4-pin mini-XLR, 16W typical 3G-SDI, 21W typical 12G-SDI, 25W max
- IEEE 802.3at Class 4, Type 2 (25.5, Max) PoE+ on Primary Ethernet port
- AC Adapter included: 100-240VAC, 50/60 Hz, universal input, 60W
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
