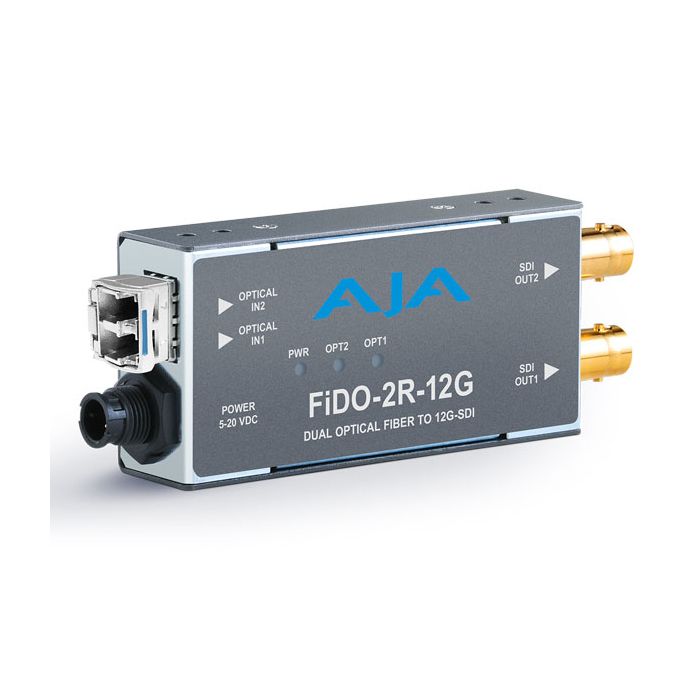

AJA FiDO-2R-12G Fibre Receiver
2-Channel Single-Mode LC Fibre to 12G-SDI Receiver
MPN: FiDO-2R-12G SKU: FiDO-2R-12G
FiDO-2R-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Please check availability
Dual Channel LC Fiber to 12G-SDI converter.
FiDO-2R-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.
FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.
12G-SDI from Camera to Fiber, Edit and More
Explore how AJA’s latest 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate and deep color content over a single cable.
Learn more about our FiDO 12G-SDI/optical fiber Mini-Converters,12GDA distribution amplifier, 12GM Muxer/DeMuxer, FS-HDR converter/frame synchronizer and Io 4K Plus Thunderbolt™ 3-equipped audio and video I/O device with 12G-SDI support.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
2-Channel Single-Mode LC Fiber to 12G-SDI Receiver
- 2 simplex or 1 duplex connection (LC connector)
- 2 independent channels of 12G-SDI output, which also support 6G/3G/HD/SD-SDI
- Both Fiber-to-SDI paths are completely independent
- Uses 5-20VDC power (DWP-U-R1 universal power supply included)
- five year warranty
Video Formats
- 270 Mbps - 12 Gbps, format agnostic
Video Input Digital
- 2-Channel Independent Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -9 dBm (min 12 Gbps), -10 dBm (min 3 Gbps)
- Overload Power: -2 dBm (min)
Video Output Digital
- 2-Channel Dual matching 12G-SDI BNC connectors, SMPTE-259/292/424/2081/2082
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- All other rates are passed through and not reclocked
Size (w x d x h)
- 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
Weight
- 0.4 lb (0.2 kg)
Power
- 3.5 watts (max)
- Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
