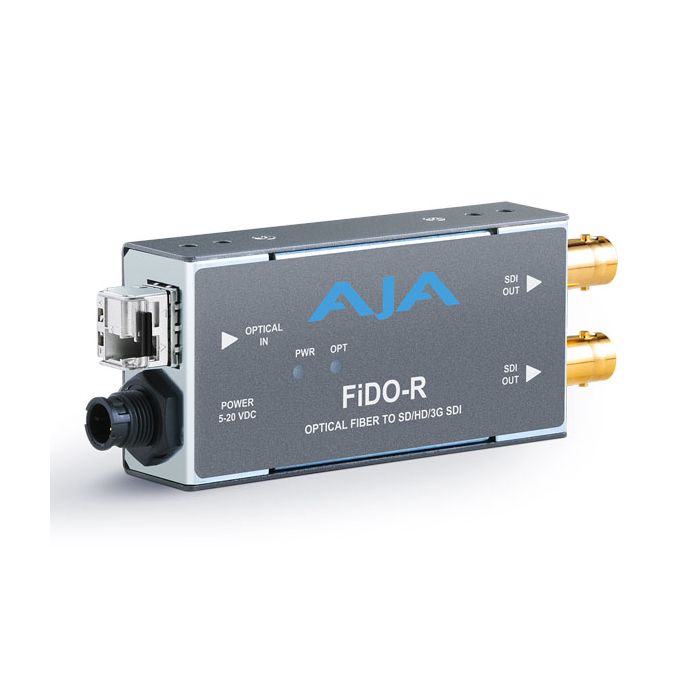

AJA FiDO-R-MM Fibre Receiver
1-Channel Multi-Mode LC Fibre to 3G-SDI Receiver
MPN: FIDO-R-MM SKU: FIDO-R-MM
FiDO-R-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic cables - useful for eliminating ground loop problems.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Please check availability
Single Channel LC Fiber to SDI converter, with dual SDI outputs 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter.
FiDO-R-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic cables - useful for eliminating ground loop problems.
FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
- Simplex connection (LC connector)
- 3G/HD/SD-SDI output
- Dual, matching SDI outputs
- Uses 5-20VDC power (DWP-U-R1 universal power supply included)
- five year warranty
Video Formats
- 100 Mbps - 3 Gbps, format agnostic
Video Input Digital
- 1-Channel Dual matching 3G-SDI Outputs, SMPTE-259/292/424
- 1-Channel Multi-Mode LC Fiber connector, SMPTE-297
- Nominal Wavelength: 850 nm
- Optical Sensitivity: -15dBm (min)
Video Output Digital
- 1-Channel Dual matching 3G-SDI Outputs, SMPTE-259/292/424
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked
Size (w x d x h)
- 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
Power
- 2 watts max
- Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
Environment
- Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
