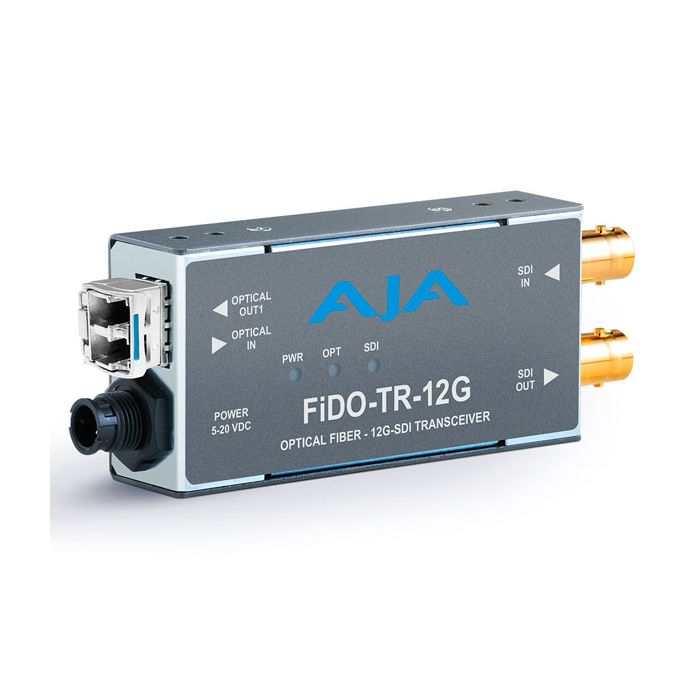

AJA FiDO-TR-12G Fibre Transceiver
1-Channel 12G-SDI/LC Single-Mode LC Fibre Transceiver
MPN: FIDO-TR-12G SKU: FIDO-TR-12G
FiDO-TR-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
FiDO-TR-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.
FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.
12G-SDI from Camera to Fiber, Edit and More
Explore how AJA’s latest 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate and deep color content over a single cable.
Learn more about our FiDO 12G-SDI/optical fiber Mini-Converters,12GDA distribution amplifier, 12GM Muxer/DeMuxer, FS-HDR converter/frame synchronizer and Io 4K Plus Thunderbolt™ 3-equipped audio and video I/O device with 12G-SDI support.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
1-Channel 12G-SDI/LC Single-Mode LC Fiber Transceiver
- Duplex connection (LC connector)
- 12G-SDI input and output, which also supports 6G/3G/HD/SD-SDI
- Bidirectional, dual channel fiber
- Uses 5-20VDC power (DWP-U-R1 universal power supply included)
- five year warranty
Video Formats
- 270 Mbps - 12 Gbps, format agnostic
Video Input Digital
- 1-Channel Independent 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
- 1-Channel Independent Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength:
- Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -10 dBm (min @12 Gbps), -14 dBm (min @ 3 Gbps)
- Optical Power: -5 dBm (min), 0.5 dBm (max)
- Overload Power: -2 dBm (min)
- Extinction Ratio: 5.4 dB (min)
Video Output Digital
- 1-Channel Independent 12G-SDI BNC connector, SMPTE-259/292/424/2081/2082
- 1-Channel Independent Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082
- Nominal Wavelength:
- Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -10 dBm (min @12 Gbps), -14 dBm (min @ 3 Gbps)
- Optical Power: -5 dBm (min), 0.5 dBm (max)
- Extinction Ratio: 5.4 dB (min)
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- All other rates are passed through and not reclocked
Size (w x d x h)
- 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6 mm)
Weight
- 0.4 lb (0.2 kg)
Power
- 4 watts (max)
- Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
