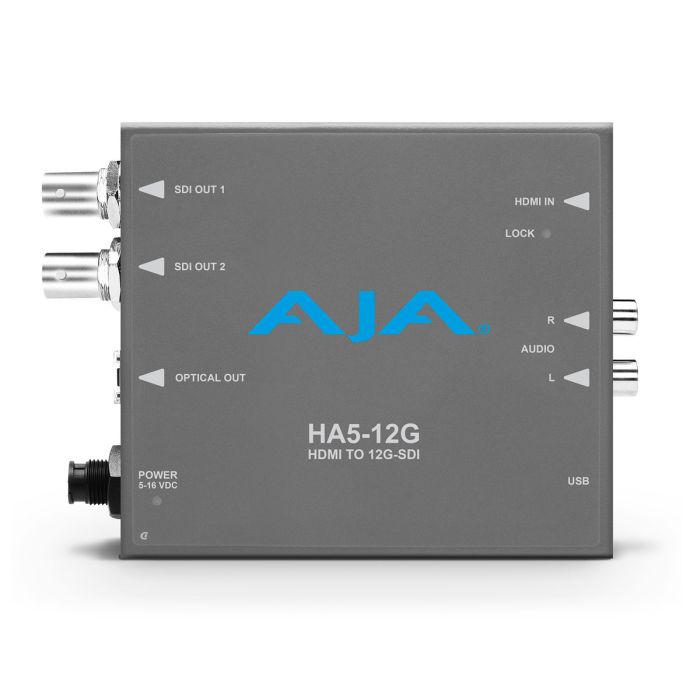

AJA HA5-12G HDMI 2.0 to 12G-SDI Mini Converter
HDMI 2.0 to 12G-SDI Converter with Embedded Audio
MPN: HA5-12G SKU: HA5-12G
HA5-12G is AJA’s HDMI 2.0 to 12G-SDI mini-converter. The HDMI input is converted to 2x 12G-SDI single link outputs for driving 12G-SDI monitoring solutions, routing and more with single cable simplicity for 4K/UltraHD/2K/HD workflows.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
HA5-12G is AJA’s HDMI 2.0 to 12G-SDI mini-converter. The HDMI input is converted to 2x 12G-SDI single link outputs for driving 12G-SDI monitoring solutions, routing and more with single cable simplicity for 4K/UltraHD/2K/HD workflows.
Up to eight channels of HDMI audio or two channels of analog audio may be embedded into the SDI output signals when selected.
HA5-12G also supports Extended Display Identification Data (EDID) emulation which ensures the connected source continuously supplies custom preferred video formats on output.
HA5-12G models are AJA’s HDMI 2.0 to 12G-SDI Mini-Converters. The HDMI 2.0 input is converted to 12G-SDI output for driving SDI monitoring solutions. HA5-12G models with included Fiber LC SFPs expand your reach to 10km (Single Mode) and provide simultaneous coaxial and fiber support, serving as a cost effective DA for 12G-SDI workflows from a single HDMI 2.0 source.
- Convert HDMI 2.0b up to 4K/UltraHD 60p to 12G-SDI with a second mirrored output
- Supports up to 60p input at 4:4:4/4:2:2/4:2:0
- HDMI EDID Emulation
- Two Sample Interleave (2SI) 4K/UltraHD source mapping
- Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
- HDR Infoframe decoder as defined in CTA-861-G and HDMI v2.0b
- Embedded audio can be selected from the HDMI or Analog audio inputs
- The Lock LED adjacent to the HDMI input connector indicates by color the detected signal type. Off is no signal, Green is SD-SDI, Red is HD-SDI, Amber is 3G-SDI, Purple is 6G-SDI, and Blue is 12G-SDI.
- Configure via USB port and supplied AJA Mini-Config software
- DWP-U-R1 universal power supply included
- Covered by five-year warranty and AJA’s advanced replacement policy
Video Formats
- (4K) 4096 x 2160p
- (UltraHD) 3840 x 2160p
- (2K) 2048 x 1080p
- (HD) 1920 x 1080p
- (HD) 1920 x 1080i
- (HD) 1280 x 720p
Video Input DIgital
- 1x HDMI Type A connector, HDMI v2.0b
- YCbCr 4:2:2/4:4:4/4:2:0
- RGB 4:4:4, SMPTE or Full level
- 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
- HDR Infoframe decoder as defined in CTA-861-G and HDMI v2.0b
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
Video Output Digital
- 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- 1x 12G-SDI LC Fiber connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 0.5 dBm (max)
- Extinction Ratio: 5.4 dB (min)
- YCbCr 4:2:2/4:4:4
- RGB 4:4:4, SMPTE or Full level
- 8 or 10-bit
- Two Sample Interleave (2SI) 4K/UltraHD source mapping
- 1x 12 Gb SDI
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1x 6 Gb SDI
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p (RGB 4:4:4) 50, 59.94, 60
- 1x 3 Gb SDI (Level A or B-Dual Link)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p* 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
*1280 x 720p is Level A Only
Video Output Digital
Additional for HA5-12G-T Only
- 1x 12G-SDI LC Fiber connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 0.5 dBm (max)
- Extinction Ratio: 5.4 dB (min)
Audio Input Digital
- HDMI embedded audio, 24-bit, 8-Channel
Audio Input Analog
- 2x RCA style connector, 2-Channel -10dBu (nominal)
Audio Output Digital
- SDI embedded audio, 24-bit, 8-Channel
User Interface
- USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
Size (w x d x h)
- 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)
Weight
- 0.5 lb (0.3 kg)
Power
- 5-20VDC regulated, 11 watts, power supply required included with purchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
*HA5-12G devices use approximately 11 watts of power and convection cooling. They will be warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack a HA5-12G device with other Mini-Converters.
