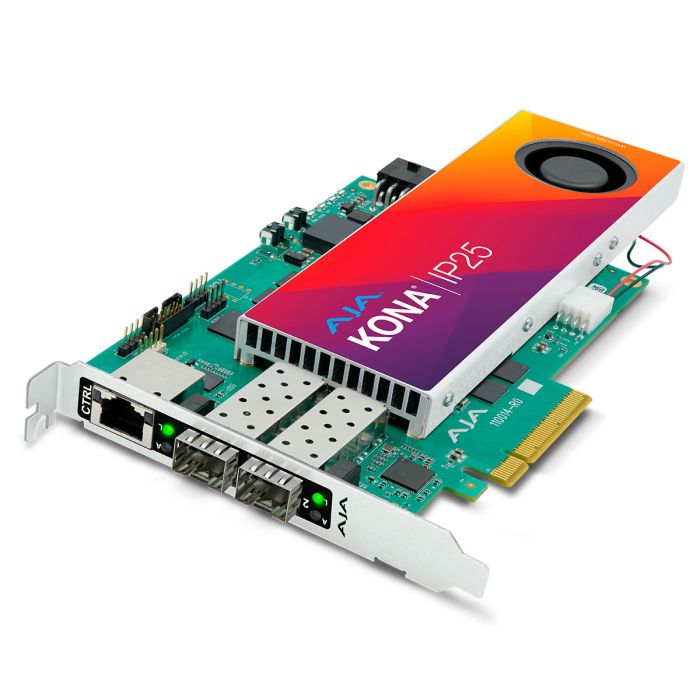

AJA KONA IP25 SMPTE ST 2110 Uncompressed IP I/O
SMPTE ST 2110 Uncompressed IP I/O with 25 GigE Tx and Rx
SKU: KONA-IP25-R0

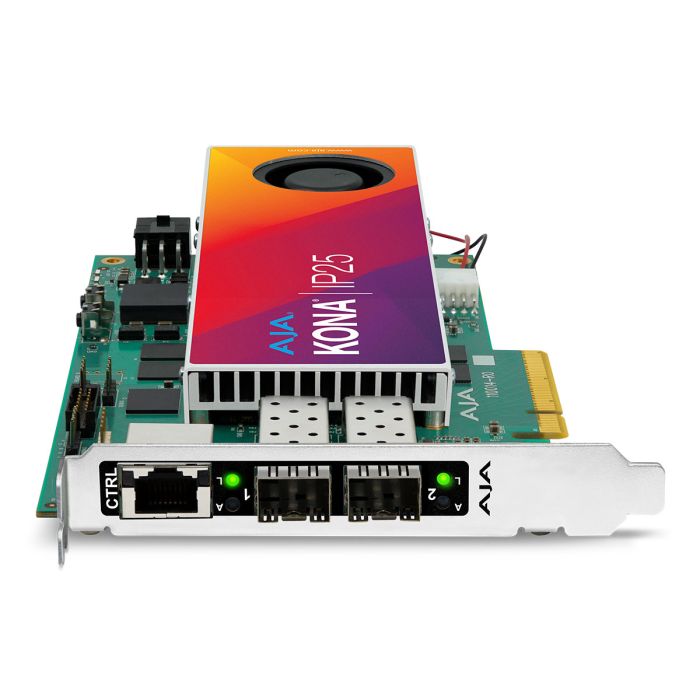

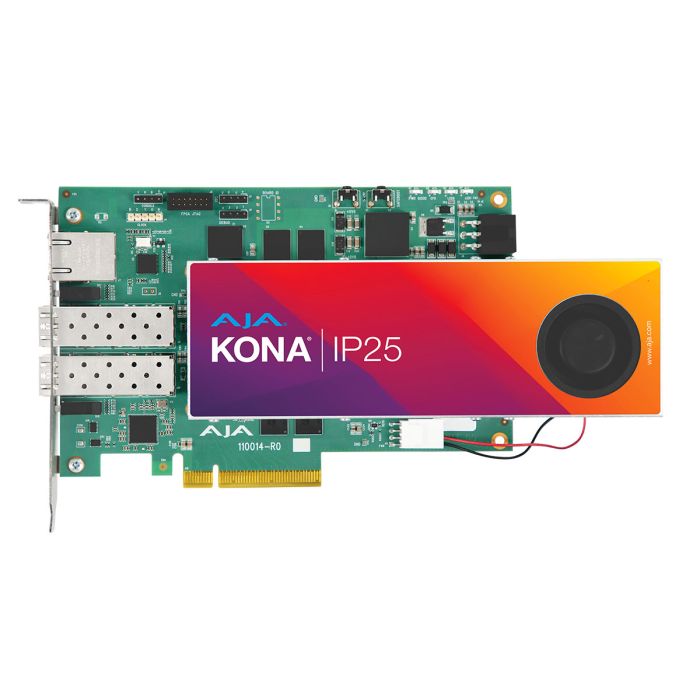

KONA IP25 delivers the power, quality, reliability, and ease of use of the KONA family to support your transitions from SDI to SMPTE ST 2110 workflows. The KONA IP25 is an 8-lane PCIe Gen 4.0, SMPTE ST 2110 IP I/O card supporting bidirectional uncompressed video. KONA IP25 has two SFP cages that support 10 and 25 Gigabit Ethernet (10/25 GigE) SFPs and also includes a 1 GigE RJ-45 connector.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
KONA IP25 delivers the power, quality, reliability, and ease of use of the KONA family to support your transitions from SDI to SMPTE ST 2110 workflows. The KONA IP25 is an 8-lane PCIe Gen 4.0, SMPTE ST 2110 IP I/O card supporting bidirectional uncompressed video. KONA IP25 has two SFP cages that support 10 and 25 Gigabit Ethernet (10/25 GigE) SFPs and also includes a 1 GigE RJ-45 connector.
The KONA IP25 is your complete solution for SMPTE ST 2110 processing with onboard PTP and NMOS control. To your computer, the KONA IP25 appears as any other KONA card which carries the control load, so it’s not placed on the host PC. ST 2110 Configuration and Control is supported by both In-Band (media network via SFPs) and Out-of-Band (control network via RJ-45).
On the desktop, KONA IP25 transparently supports Apple® Final Cut Pro, Adobe® Premiere® Pro CC, Avid® Media Composer®, AJA Control Room, OBS, and other leading editorial, effects, and production tools via AJA's robust and feature-rich Desktop Software.
For creative users, the operational experience of using your favorite creative tool remains unchanged, and with AJA Control Panel additions to set up capture and playout, you are assured to have a seamless expansion into ST 2110.
For Developers, the same AJA SDK used for baseband KONA I/O cards is also used for KONA IP25, offering an easy way to develop applications and create systems for SMPTE ST 2110 workflows.
- ST 2110-20 Video: Supports up to 2 Rx and 2 Tx simultaneously
- 10-bit 4:2:2 up to 3840x2160p
- 12-bit 4:4:4 up to 2048x1080p
- SDR/HDR support for Transfer Characteristics, Colorimetry, and Luminance via SDP file
- ST 2110-30 Audio: Supports up to 2 Rx and 2 Tx simultaneously
- Up to 16 channels of audio per stream
- ST 2110-40 Ancillary: Supports up to 2 Rx and 2 Tx simultaneously
- ST 2022-7 redundancy
- ST 2059-2 (PTPv2) accessed only via media network SFPs
- LLDP (Link Layer Description Protocol)
- DNS SD (service discovery)
- In-Band / media network (via SFPs): PTPv2/ST2059-2, control via NMOS
- Out-of-band / management network (via 1 GigE RJ-45): control via NMOS
- Single slot 8-lane PCIe 4.0, Full height
- 2x SFP cages supports 10 GigE or 25 GigE SFPs*
- macOS, Windows, and Linux Support
- Three year warranty
*SFPs not Included
Video Formats
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080i 50, 59.94
- (HD) 720P 50, 59.94, 60
Note: High Frame Rate capabilities are dependent on host system attribute
Media Transport Interfaces
- Uncompressed media (ST 2110-20, 30, 40)
- PTP
- Configuration & Control
- 2x SFP28 Cages (redundant only)- SFPs not included
- Supports 10 GigE and 25 GigE SFPs
RJ-45 1 GigE Interface (Out-Of-Band)
- Configuration & Control
Input uncompressed IP
- SMPTE ST 2110-20 Video
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
- 2-channel input*
- Rx support for Narrow and Wide Senders
- RX support for Class-D ST 2022-7 redundancy
*Format dependent
SMPTE ST 2110-30 Audio
- 2 stream input
- 2 to 16-channel audio per stream, 24-bit per channel, 48 kHz synchronous
- 1ms and 125us timing
SMPTE ST 2110-40 Ancillary
- 2 stream input
- Output Uncompressed IP
SMPTE ST 2110-20
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
- 2-channel*
- Tx support for ST 2022-7
- Tx senders are Narrow Gapped
*Format dependent
SMPTE ST 2110-30 Audio
- 2 stream output
- 2 to 16-channel audio per stream, 24-bit per channel, 48 kHz synchronous
- 1ms and 125us timing
SMPTE ST 2110-40 Ancillary
- 2 stream output
SDR / HDR
- SDP file support for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance
Downstream Keyer
- Supports graphics up to UltraHD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte
Discovery, Registration and Control
- NMOS Tx/Rx support according to standards IS-04 v1.3 and IS-05 v1.1
- LLDP
- In-Band and Out-of-Band
IP Clock
- PTPv2 ST 2059-2 / IEEE 1588-2008
- In-Band only
Electrical Interface
- 8-lane PCIe 4.0
Noise
- <50dBA (A-weighted at 1m in free air)
- Fan is rated at 33.1dBA
Regulatory Compliance (PRELIMINARY)
- RoHS 3
- IEC 62368-1: 2014 2nd Edition safety standard
Size (w x d x h)
- 247.7 x 15.9 x 98.6 mm (9.75" x 0.63" x 3.88")
- Bracket Height: 127 mm (5.0")
Weight
- 0.4kg (0.6lbs)
Power
- 40W typical, 50W maximum
- PC Internal or PCI Aux Power Connector (6 pin 2x3 Molex part number 45558-0003)
Note: It is recommended to provide power with PCI Aux Power connector
Environment
- Safe Operating Temperature Range: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
