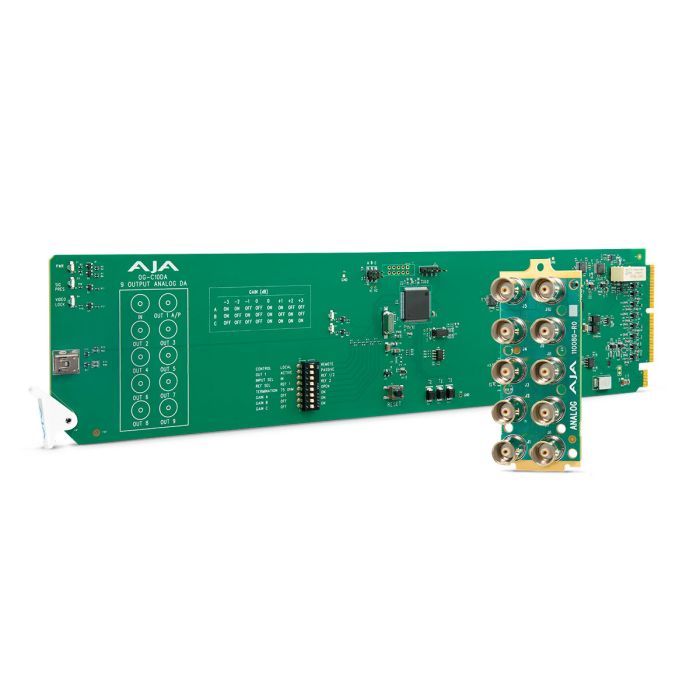

AJA OG-C10DA Analog Video 1x9 openGear Distribution Amplifier

• 1x9 analog distribution amplifier, (1x loop out option)
• Supports analog NTSC, PAL, blackburst, or tri-level sync
• Supports AES3-id (digital unbalanced audio) and LTC
• Selectable input - external BNC, frame input Ref 1 or frame input Ref 2
• Monitor and control via Ross DashBoard software
• DIP switches for local control (Loop, Ref In, Termination, and Gain)
• Input Present LED
• Power: 6.75 watts max per card
• Hot-swappable
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
• Five year warranty

Formats

• NTSC
• PAL
• Bi-level Reference
• Tri-level Reference
• AES3-id
• LTC

Inputs

• 1x BNC, Analog, Differential
• 2x openGear Frame Reference Inputs

Video Output Digital

• 1x BNC, Analog, Loop-out Active/Passive
• 8x BNC, Analog

• Termination: 75 Ohms or nonterminated
• Video Bandwidth: 0 – 6 MHz +/- 0.1dB
• Gain: -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB
• Diff Gain: 0.15%, not load dependent
• Diff Phase: 0.1 degree, not load dependent
• H/V Tilt: < 0.1%
• Response Variation: < 0.1dB 1 to 9 loads
• Coupling: DC
• Max Common Mode Signal: 8Vp-p
• Return Loss: > 15dB to 6 MHz all inputs and outputs
• Output Isolation: >40dB

User Interface

• openGear DashBoard network control software via Windows, macOS, or Linux
• Local/Remote Control
• Loop-out Control
• Input Selection
• Termination
• Gain

Size

• openGear standard form factor, front slot and rear card
• Two slots required for each card

Weight

• 0.5 lb (0.3 kg)

Power

• openGear frame compatible, 6.75 watts max per card

Environment

• Safe Operating Temperature Range: 0C to 40C (32F to 104F)
• Safe Storage Temperature Range (power OFF): -40C to 60C (-40F to 140F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000m (<10,000ft)
