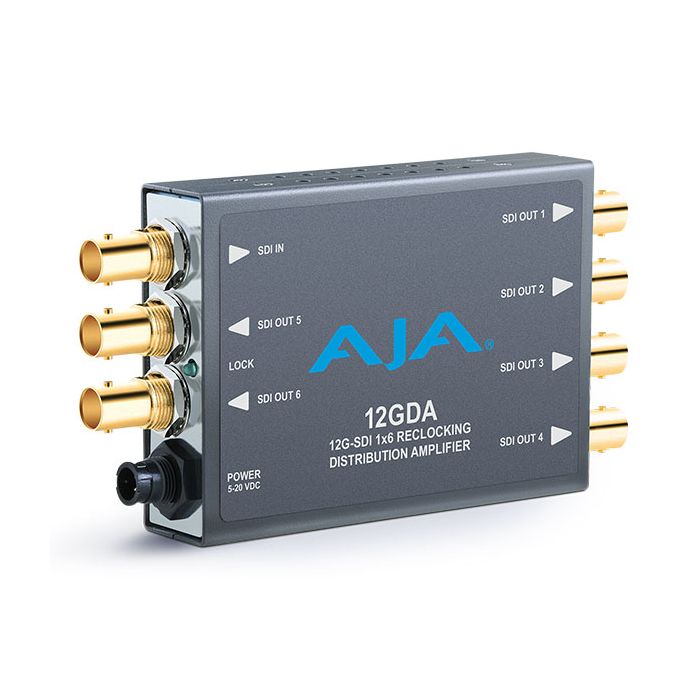

AJA Video Systems 12GDA Distribution Amplifier Mini Converter
12G/6G/3G/HD/SD-SDI Distribution Amplifier
MPN: 12GDA SKU: 12GDA
12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
- Compact 12G-SDI distribution
- Six separately buffered outputs
- Miniature size
- 12G cable equalization (1694 coax)
- 12 Gbps, 90m
- 6 Gbps, 125m
- 3 Gbps, 160m
- 1.5 Gbps, 200m
- 270 Mbps, 470m
- 12G/6G/3G/HD/SD-SDI input, auto sensing
- Passes all ancillary data
- DWP-U-R1 power supply included
- Five year warranty
- Video Formats: 100 Mbps - 12 Gbps, format agnostic
- Video Input Digital: 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- Video Output Digital: 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- Cable Equalization (Belden 1694A coax):
- 270 Mbps, 470m
- 1.5 Gbps, 200m
- 3 Gbps, 160m
- 6 Gbps, 125m
- 12 Gbps, 90m
- Reclocking:
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- All other rates are passed through and not reclocked
- Size (w x d x h): 5.8" x 3.1 x 1" (147mm x 79mm x 25mm)
- Weight: 0.7 lb (0.3 kg)
Power:
- +5-20VDC, regulated, 3 watts, power supply required, included with purchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment:
- Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
