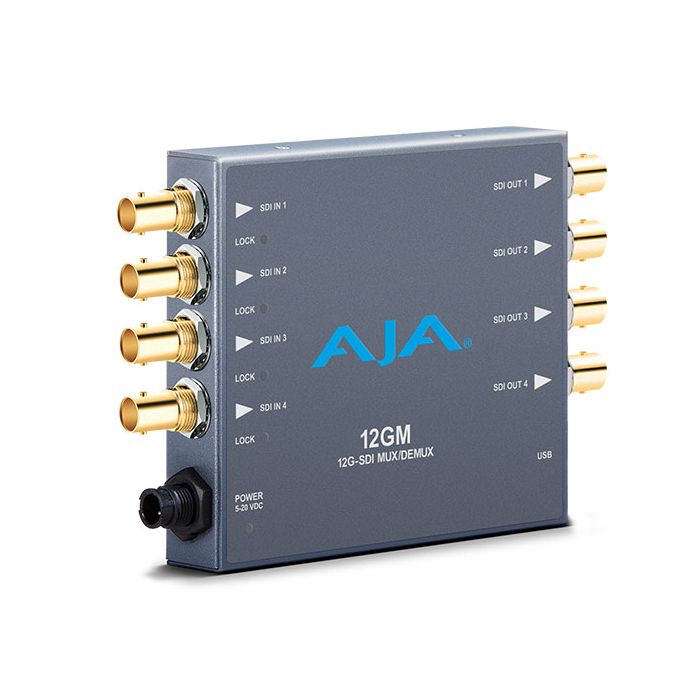

AJA Video Systems 12GM SDI Muxer/DeMuxer Mini Converter
12G-SDI to/from SDI Muxer/DeMuxer
MPN: 12GM SKU: 12GM
12GM is a compact SDI transport converter that enables 12G-SDI to Quad 3G-SDI and Quad 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from multi-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
12GM is a compact SDI transport converter that enables 12G-SDI to Quad 3G-SDI and Quad 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from multi-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
- Compact 12G to/from 3G conversion
- SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
- Converts SMPTE 425M A to/from SMPTE 425M B
- Fully equalizing and reclocking with jitter attenuation
- If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M
- DWP-U-R1 power supply included
- Five Year warranty
Video Formats
- (4K) 4096x2160p
- (UltraHD) 3840x2160p
- (2K) 2048x1080p
- (HD) 1920x1080p
- (HD) 1920x1080i
- (HD) 1280x720p
- (SD) 720x576i
- (SD) 720x480i
Video Input/Output Digital
- 4 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- 4:2:2 YCbCr
- 4:4:4 YCbCr/RGB
- 8 or 10 bit
- Two Sample Interleave (2SI) source mapping
- Square Division (Quadrant) source mapping
- Single Link 12G-SDI, SMPTE 2082-10
- Single Link 6G-SDI, SMPTE 2081-10
- Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425-1
- Dual Link 3G-SDI Level B-DS (2 x 3G), SMPTE-425-3
- Quad Link 3G-SDI Level A or B-DL (4 x 3G), SMPTE-425-5
- Dual Link HD-SDI (2 x 1.5G), SMPTE-372
- Quad Link HD-SDI (4 x 1.5G)
- Single Link HD, SMPTE-292
- Single Link SD, SMPTE-259
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 25, 29.97, 30
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625i 25
- (SD) 525i 29.97
Cable Equalization
(Belden 1694A coax)
- 12 Gbps, 90m
- 6 Gbps, 125m
- 3 Gbps, 160m
- 1.5 Gbps, 200m
- 270 Mbps, 470m
Audio Input / Output Digital
- SDI embedded audio, 24-bit, 16-Channel
User Interface
- USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows.
Size (w x d x h)
- 5.76” x 4.02” x 0.90” (146mm × 102mm × 23mm)
Power
- 5-20VDC regulated, 12 watts, power supply required, included with purchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
- Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)*
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
*12GM uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the 12GM with other Mini-Converters
