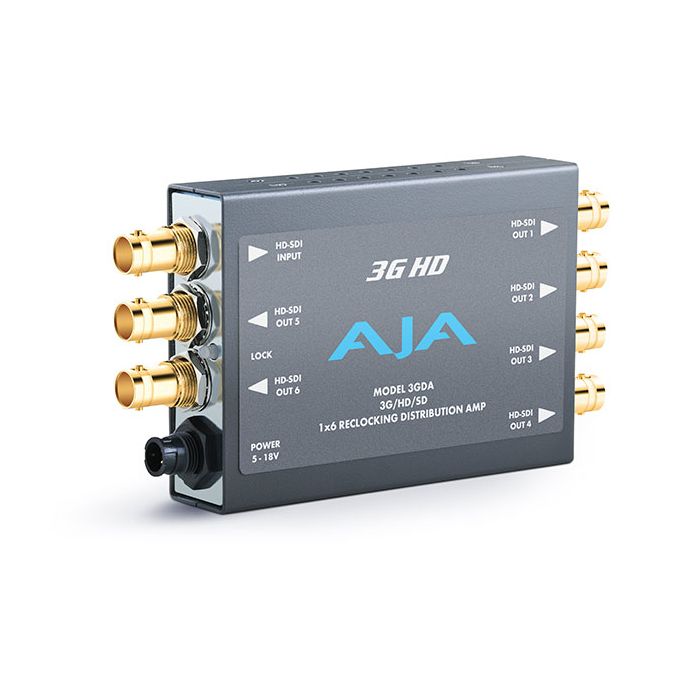

AJA Video Systems 3GDA Mini Converter

Universal Power Supply

All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Features

• Compact SD/HD distribution

• Six separately buffered outputs

• 3G/HD/SD-SDI input, auto sensing

• 3G cable equalization (1694 coax)

• SD: 270mb, 350m, HD: 1.5Gb, 200m

• Passes all ancillary data

Formats

• 3Gb, 1.5Gb, 270Mb Auto Select

Inputs

• 1 HD-SDI, SDI (SMPTE 259/292/296/424), 1x BNC

Outputs

• 3G HD-SDI, HD-SDI, SDI, 6x BNC
• Equalizing and re-clocking

Cable Equalization

• 270mb, 350m
• 1.5Gb, 200m
• 3Gb, 120m
• Cable Equalization (1694 coax)

Input/Output Return Loss

• >15db, 270Mb - 3Gb

Power

• +5-18VDC, Regulated, 3 watts, Power Supply Required (included with purchase)

Dimensions

• 5.8" x 3.1 x 1" (131 x 79 x 25mm)

Download 3GDA User Manual
