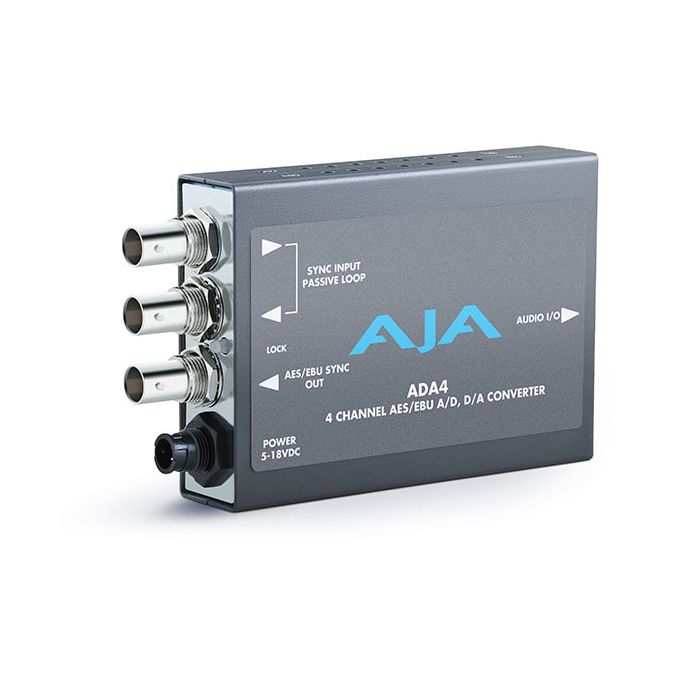

AJA Video Systems ADA4 Mini Converter

External Sync

ADA4 accepts an AES11, wordclock or video sync/color black reference input for synchronization. Reference input and synchronization are automatic with a passive looping reference as well as a separate AES sync output.

Quick configuration

Easy-to-access DIP switches allow the audio levels on ADA4 to be configured quickly and clearly while in the midst of a production.

Universal Power Supply

All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Features

• Simultaneous A/D and D/A, or AES Synchronizer

• Full-time AES11 low jitter reference output

• Up to 4 channels of balanced analog to AES/EBU audio

• Up to 4 channels of AES/EBU to balanced analog audio

• Supplied XLR breakout cable

• AES11/Wordclock/Tri-level Sync/Color Black Reference Loop

• Adjustable Audio Levels

• Sample Rate Conversion Between 96KHz and 48KHz

• Dipswitch configuration 5-18VDC Power

Analog Audio I/O

• Balanced, XLR, one channel per XLR connector

AES Audio I/O

• Balanced 110 ohm, XLR, two channels per XLR connector

Analog Audio Levels (with Respect to Full Scale Digital)

• +24dBu (SMPTE RP155), +18dBu (EBU R68), +15dBu (Germany), +10dBV (consumer +12.2 dBu)

Audio Converters

• 24 bit, 48/96 KHz

User Controls

• (External Dipswitch)

• Channel 1/2: A/D, D/A

• Channel 3/4: A/D, D/A

• Audio Level 1

• Audio Level 2

Reference Loop

• 75 Ohm (un-terminated). HD/SD Sync, AES-11, or Wordclock (48/96 KHz)

Power

• +5-18VDC, 3 watts. Power Supply Required (included with purchase)

Dimensions

147 x 79 x 25 mm
