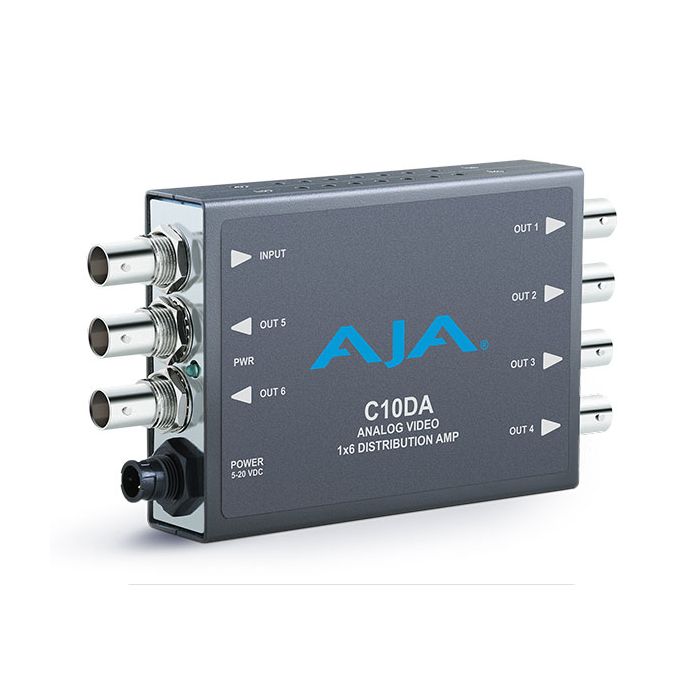

AJA Video Systems C10DA Analog Distribution Amplifier

• Compact 1 x 6 Analog Distribution Amplifier
  •  NTSC
  •  PAL
• May be used to distribute tri-level sync when a syync signal is fed into the Video Input for HD workflows
• Low Cost
• 5 year warranty

Formats

• NTSC
• PAL
• Bi-level Reference
• Tri-level Reference
• AES3-id
• LTC

Inputs

• 1 Analog, Differential, 1 x BNC

Outputs

• 6 Analog, 6 x BNC

Termination

• 75 Ohms or nonterminated

Video Bandwidth

• 0 – 6 MHz +/- 0.1dB

Gain

• -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB

Diff Gain

• 0.15%, not load dependent

Diff Phase

• 0.1 degree, not load dependent

H/V Tilt

• < 0.1%

Response Variation

< 0.1dB 1 to 6 loads

Coupling

• DC

Max Common Mode Signal

• 10Vp-p

Return Loss

• > 35dB to 6 MHz all inputs and outputs

Output Isolation

• >40dB

User Controls

• External Dipswitch
• Termination
• Gain

Size (w x d x h)

• 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)

Weight

• 0.8 lb (0.3 kg)

Power

• 5VDC Regulated, 2 Watts, power supply required, included with purchase

Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
