AJA Video Systems FS1-X Universal Frame Synchroniser/ Converter with MADI

Incredible frame rate conversion

Matching up and synchronizing disparate video and audio formats is a critical part of any broadcast, mobile or post-production environment. With the factory-installed motion adaptive Frame Rate Converter (FRC) option, FS1-X creates incredible, high-quality conversions between different frame rate families for virtually unlimited international standards support.

Massive audio flexibility

The growth of 5.1 and 7.1 audio has increased the number of audio channels that must be managed in a production as well as needing to create stereo mixdowns from 5.1 and 7.1 sources. The MADI standard provides a convenient way to transport huge numbers of audio channels along a single cable, simplifying the cabling demands for broadcasters, mobile trucks and production. FS1-X supports both fiber and coax 56- and 64-channel MADI input and output. An internal 224x224 audio matrix allows full routing of MADI, mixdowns and all audio coming from SDI, fiber, AES and analog sources for an incredible amount of audio processing capability in a single box.

High-quality conversion

AJA’s hardware conversion technology ensures the highest image quality for your productions.

Key conversion features include:

• SD/HD up, down-conversion

• SD/SD aspect ratio conversion

• HD/HD cross-conversion (720p/1080i)

• Up, down, cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized)

• HD cross-conversion with simultaneous down-converted SDI output

• Automatic Reverse Telecine detection and removal

• Closed Caption conversion (CEA-608/CEA-708 standards)

• AFD conversion or pass-through (user-selectable)

Sidebar Keying

FS1-X features a unique keyer configuration, allowing incoming signals to be combined in powerful ways. A common example is sidebar keying, where incoming video is converted from SD to HD but rather than stretching the 4:3 aspect ratio to fit in a 16:9 frame, a second signal is used to fill the sides of the 16:9 frame. This allows channel identification or other imagery to be placed in that area rather than having black bars on either side. The robust AFD features of FS1-X ensure that the aspect ratio of the outgoing signal is properly identified for downstream devices.

Automation

Many functions on FS1-X can be triggered by external GPI’s such as freezing an input or switching between presets, allowing easy integration into existing systems for seamless and accurate automation.

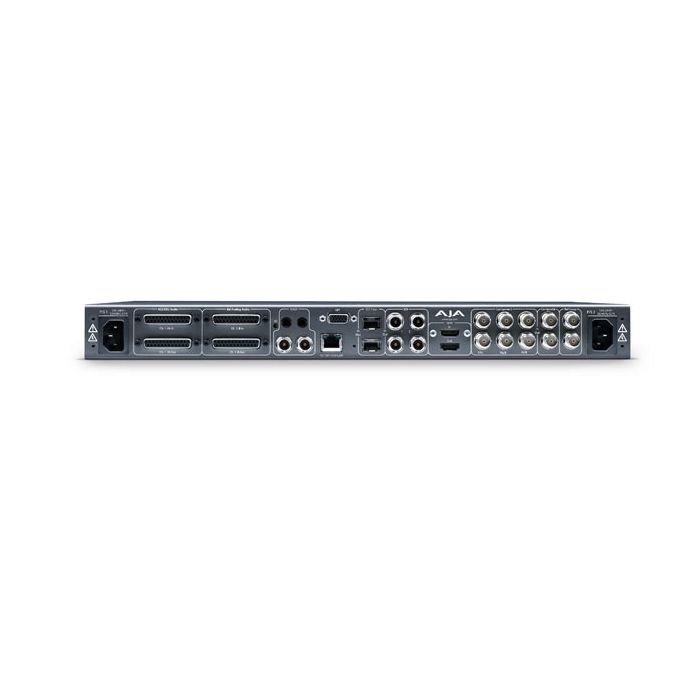

Extensive Connectivity

FS1-X is loaded with comprehensive I/O for converting between the widest range of analog and digital signals. Perfect for use in all broadcast and post production environments, featuring 3G-SDI inputs and outputs, HDMI, comprehensive multi-channel audio connections supporting the latest standards, and I/O for analog video equipment, including HD and SD component.

CWDM Fiber Options

The optional fiber inputs and outputs let you to choose from multiple wavelength CWDM SFPs, allowing advanced multiplexing of signals over a single fiber connection.

Possible CWDM options:

• Dual TX 1271/1291

• Dual TX 1311/1331

• Dual TX 1351/1371

• Dual TX 1391/1411

• Dual TX 1431/1451

• Dual TX 1471/1491

• Dual TX 1511/1531

• Dual TX 1551/1571

• Dual TX 1591/1611

Remote configuration and control

FS units are network ready and support SNMP monitoring and web-based remote control. Units can be connected to any Ethernet network via the built-in 10/100/1000 Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs.

Architecture

FS1-X is designed to maximize flexibility while providing a dependable solution that is engineered to meet the demands of broadcast engineering. Dual, redundant power supplies ensure FS1-X remains online even in the event of a power supply failure.

Video Input/Output Formats

The FS1-X supports a wide variety of video formats and connectors, as listed below.

SDI and Fiber

The FS1-X has two standard SDI video inputs and outputs, and two optional Fiber video inputs and outputs.

All SDI video inputs and outputs, including Fiber, are YCbCr 4:2:2 pixel format.

Fiber connections support 3G-SDI, SMPTE-259/292/296, 8- or 10-bits (optional)

• Single-channel LC connector modules

• Single-channel SC connector modules

• Dual-channel LC connector modules

SD-SDI, 270Mb (SMPTE 259-C)

• 525i 59.94

• 625i 50

HD-SDI, 1.4835 Gb (SMPTE 292)

• 720p 59.94

• 1080i 59.94

• 1080PsF 23.98, 29.97

• 1080p 23.98, 29.97

• 2K 1080p 23.98, 29.97

Dual-link HD-SDI, 2x 1.4835Gb (SMPTE 372)

• 1080p 59.94

• 2K 1080p 59.94

Dual-link HD-SDI, 2x 1.485Gb (SMPTE 372)

• 1080p 50

• 2K 1080p 50

3G-SDI Level A 2.967 (2.97/1.001) Gb (SMPTE 425-A)

• 1080p 59.94 (SMPTE 274)

• 2K 1080p 59.94

3G-SDI Level A 2.97 Gb (SMPTE 425-A)

• 1080p 50 (SMPTE 274)

• 2K 1080p 50

3G-SDI Level B 2.967 (2.97/1.001) Gb (SMPTE 425-B / SMPTE 372)

• 1080p 59.94 (SMPTE 274)

• 2K 1080p 59.94

2.97 Gb 3G-SDI Level B (SMPTE 425-B / SMPTE 372)

• 1080p 50 (SMPTE 274)

• 2K 1080p 50

HDMI

The HDMI input only accepts SMPTE video formats, and accepts embedded audio. Video input formats are RGB or YCbCr 4:2:2 pixel format for consumer video scan formats. Computer scan rates are not supported.

• 525i 59.94

• 525p 59.94

• 625i 50

• 625p 50

• 720p 50, 59.94

• 1080i 50, 59.94

• 1080p 23.98, 24, 25, 29.97, 50, 59.94

Component HD/SD Analog

The Component Analog Input accepts YCbCr 4:2:2 pixel format, configurable to SMPTE or Betacam levels. If the composite input is used, the component input is not available.

• 525i 59.94

• 625i 50

• 720p 50, 59.94

• 1080i 59.94

• 1080PsF 23.98, 24, 25, 29.97

• 1080p 23.98, 24, 25, 29.97

Composite SD Analog

The FS1-X composite analog video input/output formats are listed below. If the component inputs are used, the composite input is not available.

• 525i 59.94 (switchable to NTSC 7.5 IRE or 0 IRE setup)

• 625i 50

Reference

• 525i 59.94, 625i 50 analog composite

• 720p 50, 59.94 tri-level sync

• 1080i 50, 59.94 tri-level sync

• 1080p 50 tri-level sync

• Genlock available to the current Video Processor 1 Input

• Free run

Format Exceptions

The following formats are not supported:

• 720p 23.98, 24, 25, 29.97

• All 30, 60 frame rates

• 4:4:4 YCbCr, RGB, or XYZ inputs

• 4:2:2 YCbCr 12-bit inputs

Video Format Conversion

Standard FS1-X Conversions

The standard FS1-X can convert almost any input format to nearly any output format, as long as the frame rates are of the same frame rate family. The three families are:

• 23.98, 29.97, 59.94

• 25, 50

• 24

See "Conversion Exceptions" below.

Video Format Alarms

When incompatible I/O formats are detected, an alarm can be triggered with these results:

• Lights the relevant alarm LED on the front panel (FMT ERROR, 1 or 2).

• Displays an alarm in the browser user interface.

• Influences selection of the first-displayed status screen.

• Generates an SNMP trap (if configured).

• Triggers a GPI Output (if configured).

Video A/D, D/A Converters

• 12 bits

• 2x oversampled (HD)

• 4x oversampled (SD)

Audio

Inputs and Outputs

The FS1-X can accept and route any audio inputs to any audio output.

• 8-channel balanced analog I/O, DB-25F 25-pin connector (Tascam pinout)

• 16-channel AES/EBU I/O (BNC), DB-25F 25-pin connector

• 16-channel SDI/HD-SDI embedded BNC (2)

• 16-channel SDI/HD-SDI embedded Fiber (2)

• 64-channels MADI digital audio. BNC

• 64-channels MADI digital audio. Fiber

Analog Audio Levels

Analog audio input and output levels, as referenced to full scale digital, can be set to:

• +12dBu (consumer), +15dBu, +18dBu, +24dBu (professional)

Audio Adjustments

Individual audio channels (or channel pairs) can adjusted for:

• Level: +/- 18 db

• Phase: Normal or Reverse

• Delay: -128 to +12288 samples (-2.7 ms to +256 ms)

Interfaces

LAN

• 10/100/1000 automatic configuration

• Automatic cable crossover (auto MDI-X)

• Embedded web server

• SNMP

GPI

• DB-15F: single connector provides four inputs and four outputs. See Appendix B for a connector pinout and GPI specifications.

Physical

Dimensions

• Width: 17.5 inches (44.45cm); 19 inches (48.26 cm) including rack ears

• Depth: 16 inches (40.65 cm), including knobs and connectors that extend beyond the frame

• Height: 1RU, 1.75 inches (4.44cm)

Weight

• 7.85 pounds, 3.56 kilograms

Temperature

• Operating temperature range: 0–40 degrees C

• Cooled via two internal fans and side vents.

Power

• Voltage: 100-240 VAC

• Power Consumption: 55 Watts, 60 Watts with FRC option (70 Watts maximum)

• Two independent power supplies, fully redundant, diode isolated.
