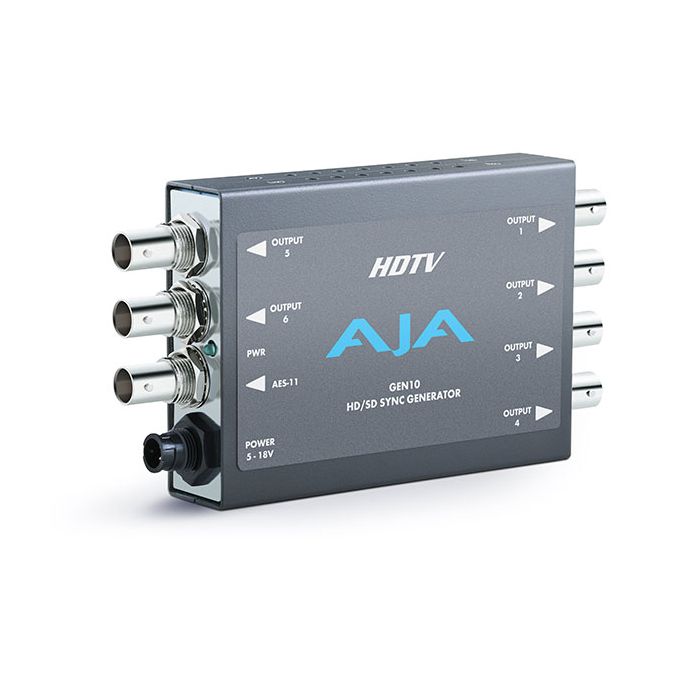

AJA Video Systems GEN10 Mini Converter
HD/SD Sync Generator
MPN: GEN10 SKU: GEN10
The GEN10 is a cost effective and flexible SD/HD/AES sync generator. The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENCE and TONE. All outputs are in sync with each-other and are sourced from an accurate master time base.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The AJAGen10 SD/HD/AES sync generator is as adaptable as it is inexpensive. Providing multi-format tri-level sync, colour black sync, 75% colour bar sync and AES tone or silence sync, the Gen10 supports up to 1080p and features seven outputs.
These include two groups of independently controlled SD/HD sync outputs and one AES-11 output that alternates between silence and tone. The SD outputs are capable of switching between colour black or 75% colour bars while the HD outputs feature tri-level sync and can be changed between 19 diverse HD formats. All outputs are in sync with one another and are tracked from an exact master timebase.
The AJA Gen10 is shipped with a universal power supply and universal plug connections for global compatibility, complete with a locking power connector to prevent accidental disconnection. Going international is made even more convenient by the AJA Gen10’s compact and portable design. It can fit behind a monitor, directly on a camera rig, in the back of a rack or in your back pocket.
Universal Power Supply
All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Features
- HD Tri-level sync generation
- SD Color Black or Color Bars
- Two groups of independently switchable outputs allows simultaneous HD and SD sync generation
- AES-11 output switchable between silence and tone
- Multiple outputs can synchronize entire systems without requiring a Sync DA
- 5-18VDC Power
- External dip switch configuration
HD Sync
- Trilevel
SD Sync
- Color Black, 75% Color Bars
AES
- AES-11, 48KHz, Silent or 1KHz Tone (-20 or -18 dBFS)
Accuracy
- 3 ppm
Formats
- 525i, 625i
- 720p23.98/24/25/29.97/30/50/59.94/60
- 1080i50/59.94/60
- 1080psF23.98/24/25/29.97/30
- 1080p23.98/24/25/29.97/30
User Controls
- (External Dipswitch)
Power
- +5-18VDC, 2 watts, Power Supply Required (included with purchase)
Dimensions
147 x 79 x 25 mm
