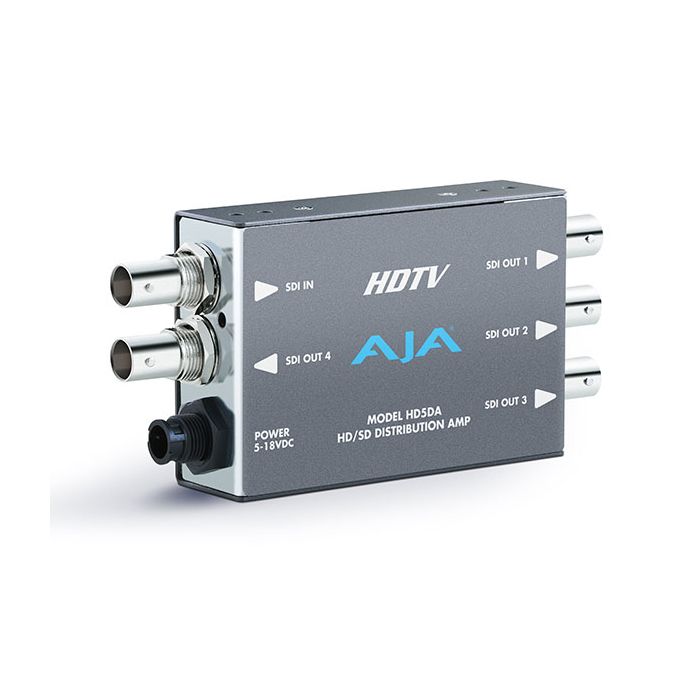

AJA Video Systems HD5DA Mini Converter

Universal Power Supply

All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Features

• Compact HD-SDI/SDI Distribution

• Four Separately Buffered Serial HD-SDI/SDI Outputs

• Auto Equalization

• Acts as a Low Cost Repeater

• Automatic multi-standard

• Miniature Size

Formats

• 1.5Gb, 143, 177, 270, 360 Mb, Auto Select

Inputs

• 1 HD-SDI, SDI (SMPTE 292/296), 1x BNC

Outputs

• 4 HD-SDI, SDI, 4x BNC

• Equalizing

Return Loss

• >15dB-270Mhz (Input and Output)

Power

• 5VDC Regulated, 2.5 Watts, Power Supply Required (included with purchase)

Dimensions

131 x 61 x 25mm
