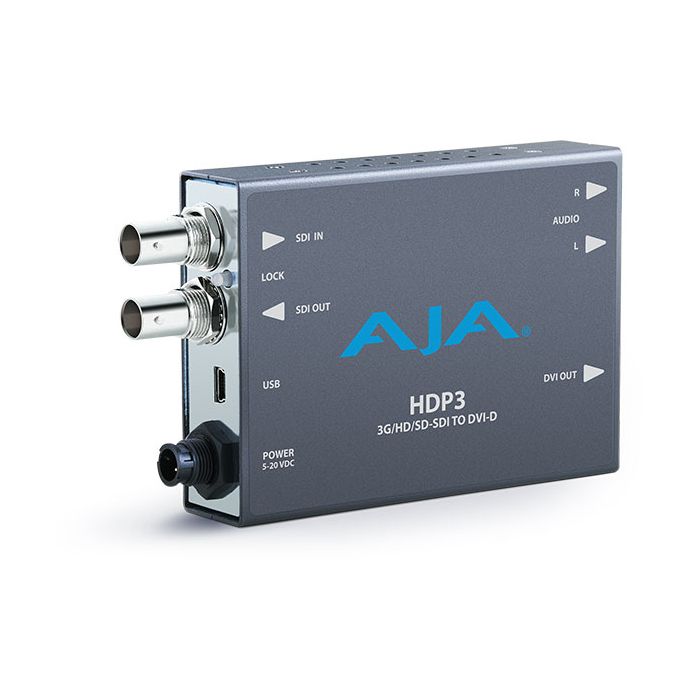

AJA Video Systems HDP3 Mini Converter
3G-SDI to DVI-D and Audio Converter
MPN: HDP3 SKU: HDP3
The HDP3 is a miniature 3G-SDI to DVI-D converter with support for 1080p50, 59.94, 60 input formats, and a DVI-D output for digital display devices such as LCD, DLP, and Plasma monitors or projectors. Using a very high quality scaling engine and de-interlacer, the HDP3 will automatically size 4:3 or 16:9 inputs to many DVI-D monitors, providing an efficient conversion for professional video sources to ubiquitous cost-effective displays.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Please check availability
The HDP3 is a 3G-SDI to DVI-D mini-converter for digital display devices such as LCD, DLP, and Plasma monitors or projectors. Using AJA’s very high quality scaling engine and deinterlacer, the HDP3 handles 3G-SDI signals up to 1080p60. The HDP3 will adapt the input frame rate for monitor compatibility, and because it responds to EDID from monitor or projector, it can automatically determine the best output format and scaling parameters. 1 to 1 pixel mapping can can also be selected. The HDP3 provides user- assignable 2-Channel analog audio monitoring , 2 to 8-Channel 24-bit embedded audio (via DVI-D to HDMI adapter only), plus a looping output of the SDI input retaining 8-Channels of embedded audio.
- HD-SDI/SDI to DVI-D
- HDMI 1.3a support (via DVI-D connector), including: - Deep Color 30-bit video (24-bit also supported) - 2 or 8 channels of embedded audio
- Automatically adapts to popular LCD/ DLP/Plasma monitors (and projectors) up to 1920x1200 and 1080p
- High quality scaling engine for proper display of 4:3 or 16:9 content-even better quality than original HDP
- 1 to 1 scaling for appropriate monitor configurations
- 2-channel RCA analog audio output (user-assignable channels)
- HD-SDI/SDI looping output
- Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
- 5 year warranty
Video Input Formats
- 1 x 3 Gb SDI (Level A)
• (HD) 1920 x 1080p 50, 59.94, 60
- 1 x 1.5 Gb SDI
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p 50, 59.94, 60
- 1 x 270 Mb SDI
• (SD) 625i 25
• (SD) 525i 29.97
Video Input Digital
- 1 x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital
- 1 x DVI Type D female connector
- Automatically adapts to popular LCD/DLP/Plasma monitors (and projectors) up to 1920 x 1200 and 1080p
- High quality scaling engine for proper display of 4:3 or 16:9 content-even better quality than original HDP
- 1 to 1 scaling for appropriate monitor configurations
Audio Input Digital
- SDI embedded audio, 24-bit, 8-Channel
Audio Output Digital
- DVI embedded audio, 24-bit, 2 or 8-Channel (HDMI adapter only)
- SDI (looped) embedded audio, 24-bit, 8-Channel
Audio Output Analog
- 1 x RCA Stereo analog outputs at -10dBV (nominal)
Size (w x d x h)
- 5.8” x 3.1" x 1.0" (147mm x 79mm x 25mm)
Weight
- 0.7 lb (0.5 kg)
Power
- 5-20VDC regulated, 6.5 watts, power supply required (included with purchase)
Environment
- Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Storage Temperature: -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
