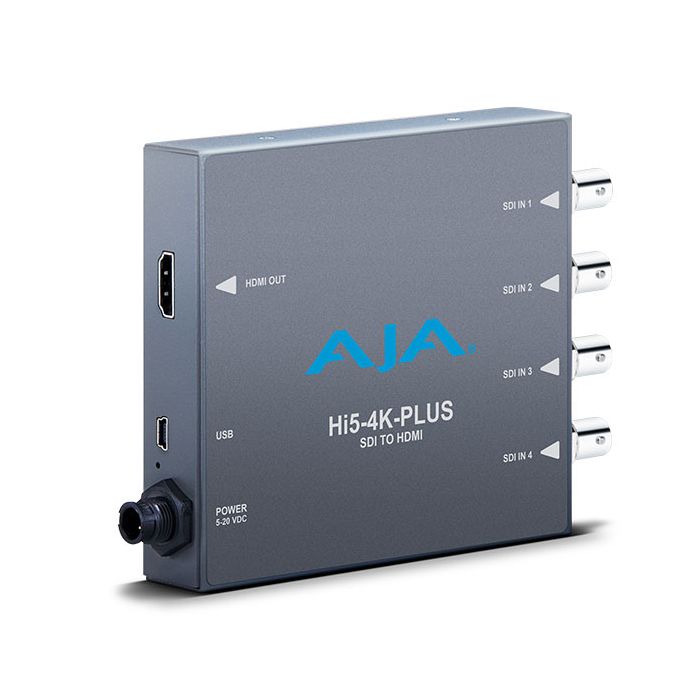

AJA Video Systems Hi5-4K-Plus Mini Converter
3G-SDI to HDMI 2.0 Conversion
MPN: HI5-4K-PLUS SKU: HI5-4K-PLUS
AJA’s Hi5-4K-Plus preserves your vision with pristine image fidelity and HFR support up to 60p for 4K/UltraHD SDI to HDMI 2.0 conversion needs. The Hi5-4K-Plus can also generate HDR metadata in accordance with HDMI v2.0a/CTA-861.3. Hi5-4K-Plus provides a simple monitoring connection from professional 4K devices using Quad 3G-SDI, Quad 1.5G-SDI, or Dual 3G-SDI outputs to new displays with HDMI 2.0 inputs, for cost-effective monitoring for 4:2:2/4:4:4 60p professional workflows.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Connectivity
The latest generation of affordable 4K monitors utilize an HDMI 2.0 connection, which allows a full 4K signal to be passed over a single cable. Typical professional 4K workflows use four SDI cables to carry the full resolution image, making it difficult to incorporate these newer monitors. Hi5-4K-Plus is an easy-to-use converter that bridges the gap between these two worlds for seamless integration.
Audio
Up to 8-channels of embedded audio in the incoming SDI signal are carried through seamlessly into the HDMI output, ensuring your audio is always in sync and can be easily played back on the connected monitor.
4K and UltraHD
Typical 4K signals use a resolution of 4096x2160 pixels while UltraHD signals measure 3840x2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. Hi5-4K-Plus can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.
Hi5-4K-Plus also supports High Frame Rate (HFR) inputs. 4K/UHD signals at 50 or 60 fps can be fed into Hi5-4K-Plus and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
HD Support
Not every job is a 4K job. When you're not working in 4K, Hi5-4K-Plus can still be a useful tool for converting HD-SDI to HDMI. A single HD-SDI signal coming into the Hi5-4K will be sent out as an HD resolution HDMI signal, much like AJA's Hi5-3G Mini-Converter.
- 4 x 3G-SDI inputs
- Support for 4:2:2/4:4:4 HDMI 2.0 output
- HD conversion supported
- Embedded audio support
- Configure via USB port and supplied MiniConfig software
- Uses 5-20VDC power (DWP-U-R1 universal power supply included)
- 5-year warranty
Video Formats (4K/UltraHD formats support Two Sample Interleave (2SI) and Quadrant source mapping)
- 4 x 3 Gb SDI (Level A or B-Dual Link)
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
*NOTE: PsF is Level B-Dual Link
- 4 x 1.5 Gb SDI
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
• (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
- 2 x 3 Gb SDI (Level B-Dual Stream)
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
• (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
- 1 x 3 Gb SDI (Level A or B-Dual Link)
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p* 50, 59.94, 60
*NOTE: 1280 x 720p is Level A Only
- 1 x 1.5 Gb SDI
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p 50, 59.94, 60
- 1 x 270 Mb SDI
• (SD) 625i 25
• (SD) 525i 29.97
Video Input Digital
- 4 x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital
- 1 x HDMI Type A connector*
• HDMI v2.0 up to 4K/UltraHDp60 4:2:2/4:4:4
• HDMI v1.4a up to 4K/UltraHDp30 4:2:2, p60 4:2:0
- HDR: Generation of Dynamic Range and Mastering Infoframe and the static metadata descriptors as defined in CTA-861.3 and HDMI v2.0a.
*NOTE: If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
HDCP
- The Hi5-4K-PLUS does not encode the HDMI with HDCP encryption. By definition, HD-SDI inputs to the Hi5-4K are unencrypted.
- The HDMI specification requires HDMI monitors to support unencrypted inputs.
Audio Input Digital
- SDI embedded audio, 24-bit, 8-Channel
Audio Output Digital
- SDI embedded audio, 24-bit, 8-Channel
Size (w x d x h)
- 5.765" x 4.02" x 0.9" (146.431mm x 102.108mm x 22.86mm)
Weight
- 0.5 lb (0.3 kg)
Power
- 5-20VDC regulated, 8 watts, power supply required (included with purchase
Environment
- Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
