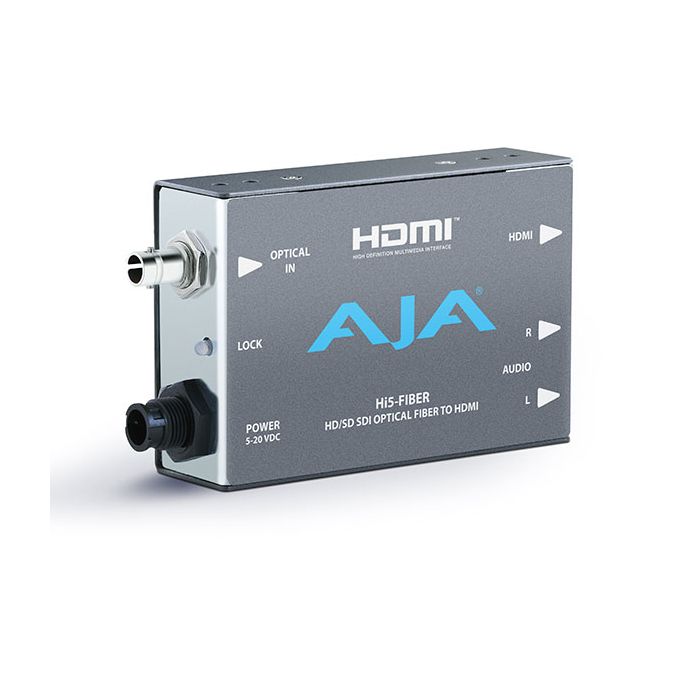

AJA Video Systems Hi5-Fibre Mini Converter

Universal Power Supply

All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Features

• Fiber optic HD/SD-SDI to HDMI

• Supports single mode 1310 nm fiber optic cable with ST receiver

• Full HDMI support including embedded audio

• Additional 2-Channel RCA jack audio output

• No configuration necessary

• HDMI V1.2 standard

• 1m HDMI cable included

• 5 year warranty

Inputs

• Fiber optic ST connector supporting SMPTE-259/292/296 HD/SD-SDI

Input Formats

• 525i, 625i, 720p 50/59.94/60, 1080i

• 50/59.94/60, 1080p23.98, 1080p24

• 1080p25, 1080p29.97, 1080p30

Outputs

• HDMI with embedded audio

• Audio (2-channel RCA-style outputs)

Power

• +5VDC Regulated, 3 Watts, Power Supply Required (included with purchase)

Dimensions

• 117 x 61 x 25mm)

Note: HDCP content not supported.
