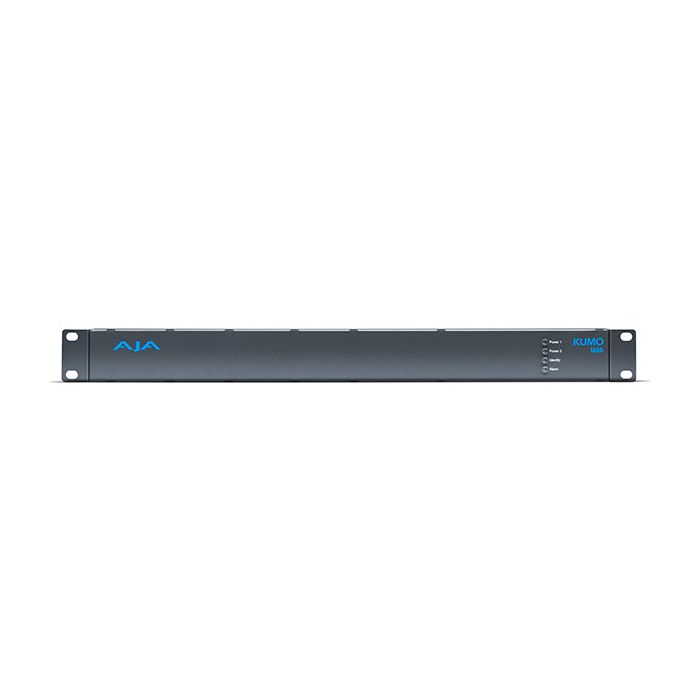

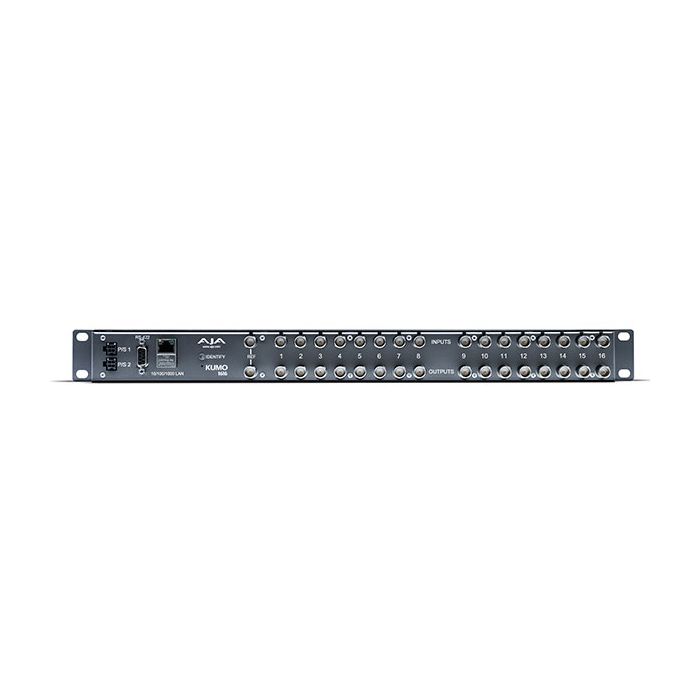

AJA Video Systems KUMO 1616 SDI Router

KUMO SDI routers are available in three configurations: KUMO 3232 supports 32 3G SDI inputs and outputs, KUMO 1616 supports 16 3G SDI inputs and outputs, and KUMO 1604 supporting 16 3G SDI inputs and 4 3G SDI outputs

Powerful signal control

Just 1RU or 2RU high and less than 2" deep, KUMO fits in the most space-constrained locations, offering flexible routing with support for SD, HD and 3G SDI I/O via BNC and SMPTE. The powerful cross-point routing matrix allows the mapping of any input to any output. Signals can also be sent to multiple outputs without the need for additional patch panels or distribution amplifiers

Broadcast-standard reliability

Designed for critical broadcast, production and post environments, KUMO hardware uses premium components coupled with dual redundant power supplies to ensure uptime in the unlikely event of a power supply failure

Simple installation and configuration

Running Embedded Linux, KUMO routers are network-ready and support powerful HTTP control and monitoring via a web browser - without the need for any additional software. KUMO’s auto-detect Bonjour™/Zeroconf protocols mean that network configuration is automatic, just connect KUMO to your network or a computer and the system will self-configure, ready for use. Alternatively, standard network configuration allows access to each KUMO via its default IP address. Once connected to KUMO using a web browser, you can configure the full TCP/IP settings, select and name KUMO routers, name sources and destinations, and perform all operational functions

KUMO routers are easily integrated with existing infrastructure utilizing the industry-standard Grass Valley Native Protocol over RS-422 or even Ethernet. Ethernet network connectivity also allows you to control all KUMO routers from any web browser on a network-connected device, ensuring you have the control you need from any location

KUMO Control Panel

KUMO CP is an optional 1RU control panel that can be used in standalone or networked configurations. Connecting via Ethernet to the same network as the KUMO routers, KUMO CP enables full control from any location without the need for a computer. Up to four KUMO routers can be controlled from a single control panel. For standalone configurations with KUMO CP, all KUMO hardware units can be connected together directly using standard RJ45 cables or a switch, if required. KUMO software automatically assigns routers to control panel delegations so the system is ready for use immediately

Video Formats

• 525i 29.97

• 625i 25

• 720P 50, 59.94, 60

• 1080i 25, 29.97, 30

• 1080PsF 23.98, 24, 25, 29.97, 30

• 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

Video Input Digital

• SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits

• Single Link 4:2:2 (1 x BNC per input)

Video Output Digital

• SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits
• Single Link 4:2:2 (1 x BNC per output)

Audio Input Digital

• 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous

Audio Output Digital

• 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous

Timecode

• SDI RP188 preserved from inputs to outputs

Reference Input

• Analog Color Black (1V) or Composite Sync (2 or 4V)

• Looping, non-terminating.

Network Interface

• 10/100/1000 Ethernet (RJ-45)

• Embedded web server for remote control

Environment

• Operating temperature: 0 to 40 degrees C

• Relative humidity: 0 to 90%, non-condensing

Dimensions and Weight

• Width: 19” (48.26cm)

Depth

• KUMO 3232, 1616 & 1604: 1.5” (3.81cm)

Height

• KUMO 1616, 1604 & CP: 1.75” (4.45cm)

• Power: 100-240 VAC 50/60Hz , 9-18 VDC (Dual, redundant external power supplies)

• KUMO 1616: 20W nominal; 1.8A

Weight

• KUMO 1616: 0.64kg)
