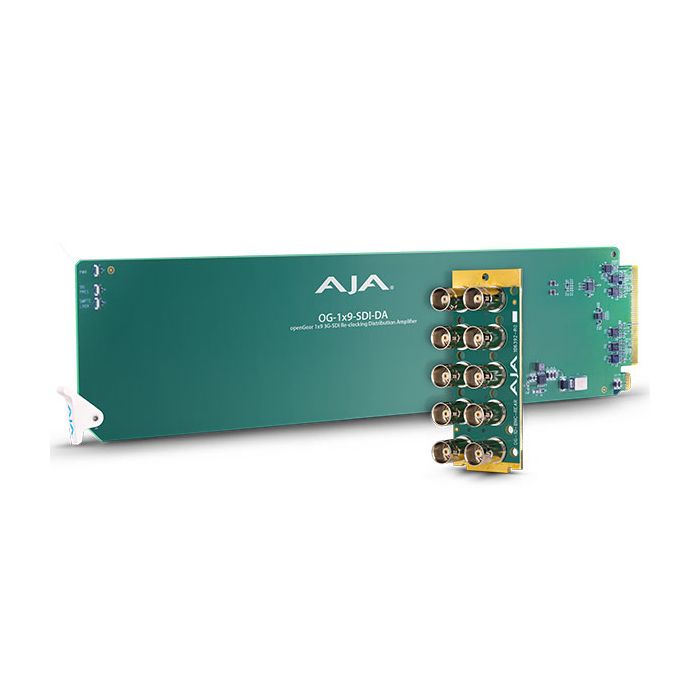

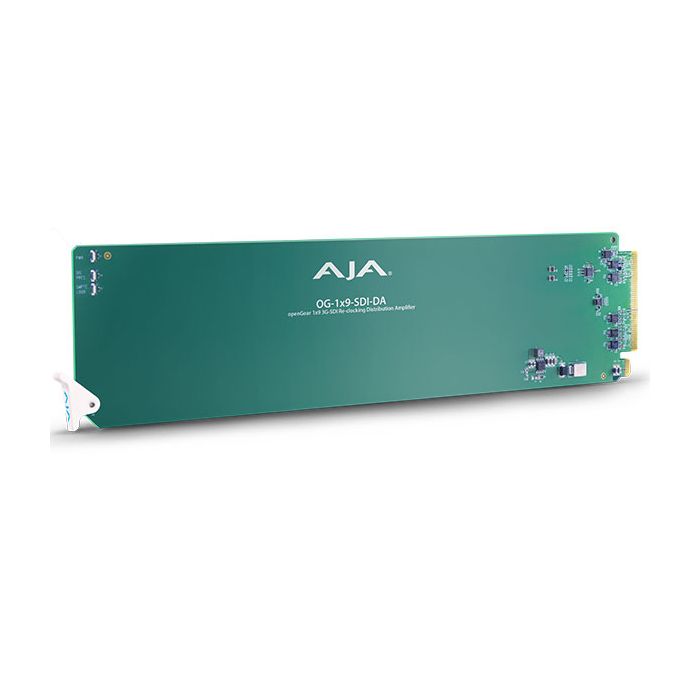

AJA Video Systems OG-1x9-SDI-DA Distribution Amplifier
openGear 1x9 3G-SDI Re-clocking DA
MPN: OG-3GDA-1X9 SKU: OG-3GDA-1X9
The OG-1x9-SDI-DA is a state-of-the-art, openGear-compatible, 3G-SDI distribution amplifier. The incoming SD, HD or 3G signal is re-clocked and distributed to each of the 9 3G-SDI outputs, allowing the same signal to be sent to multiple destinations simultaneously.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Connectivity
The 3G-SDI input is equalized and re- clocked with best-in-class cable length capability and input jitter tolerance. SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. One SDI input and 9 SDI outputs are provided. A 10-BNC rear openGear connector module is included.
- Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
- Excellent input jitter tolerance and low jitter re-clocked outputs
- Excellent input/output return loss
- “Input Present” and “Input SMPTE Lock” LEDs
- Hot-swap capable
- Compatible with DFR-8321 and OG3 openGear frames
Video Formats
- 100 Mbps - 3 Gbps, format agnostic
Video Input Digital
- 1 x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital
- 9 x 3G-SDI BNC, SMPTE-259/292/424
- 5 outputs noninverting
Cable Equalization (Belden 1694A coax)
- 270 Mbps, 350m
- 1.5 Gbps, 200m
- 3 Gbps, 120m
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked
Size (w x d x h)
- openGear standard form factor, front slot and rear card
• Two slots required for each card
Power
- openGear frame compatible, 2.0 watts max per card
Environment
- Safe Operating Temperature Range: 0C to 40C (32F to 104F)
- Safe Storage Temperature Range (power OFF):-40C to 60C (-40F to 140F)
- Operating Relative Humidity :10-90% noncondensing
- Operating Altitude: <3,000m (<10,000ft)
