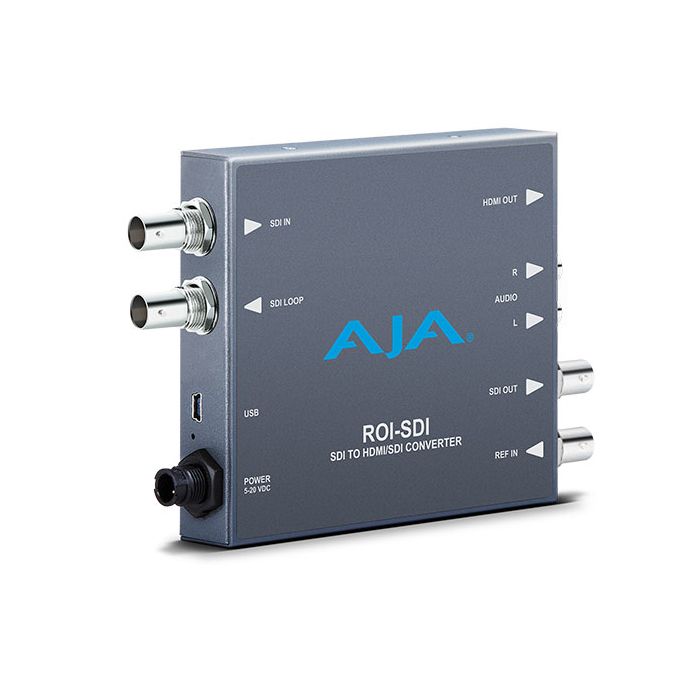

AJA Video Systems ROI-SDI Mini Converter

3G-SDI to HDMI/3G-SDI Scan Converter with Region of Interest Scaling

MPN: ROI-SDI SKU: ROI-SDI

$983.33

AJA’s ROI-SDI Scan Converter allows exceptionally high quality conversion and extraction of a Region of Interest (ROI) from a 3G-SDI input to 3G-SDI and HDMI mirrored outputs at an affordable price in a very portable form factor. With incredible image scaling, extensive aspect ratio conversion and audio functionality, ROI-SDI fulfills the growing need to customize video signals for a range of display and SDI workflow needs without sacrificing budget or space.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Please check availability

Region of Interest
Rotate source signals, customize a portion of an image or reframe the source image to extend the creative options for what’s been captured in camera.

Connecting a ROI-SDI Mini-Converter via USB to a computer running the free Mini-Config application lets you interactively select a Region of Interest from the original signal and have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.

Conversion
Take full control of aspect ratio conversion with on-screen controls in the Mini-Config software that show you exactly what your source and output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.

The output will be mirrored to both the 3G-SDI and HDMI outputs for simultaneous delivery to multiple displays or continuing signal paths.

Connectivity
ROI-SDI utilizes a direct 3G-SDI loop through, allowing it to be placed in-line so you still have a connection to an external monitor while extracting to both 3G-SDI and HDMI. The reference input ensures the 3G-SDI signal out of ROI is locked for use throughout a production or facility.

Audio
ROI-SDI accepts 8-Channel embedded audio from an 3G-SDI input. The audio source and routing can be selected in the Mini-Config software and is embedded in the 3G-SDI and HDMI outputs. ROI-SDI also features a stereo RCA output for simple monitoring needs.

3G-SDI to HDMI and 3G-SDI conversion
Region of Interest scaling
3G-SDI loop through
Audio embedding
Aspect ratio conversion
Genlock input
Configure via USB port and supplied Mini-Config software
Uses 5-18VDC power (universal power supply included)
5 year warranty

Video Formats

(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080i 25, 29.97, 30
(SD) 720p 50, 59.94, 60
(SD) 625i 25
(SD) 525i 29.97

Reference Input

Supported reference video inputs include:

1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i Color Black
525i Color Black

Video Input

1 x 3G-SDI BNC, SMPTE-259/292/424

Video Outputs

1 x 3G-SDI BNC, loop through
1 x 3G-SDI BNC, SMPTE-259/292/424
1 x HDMI Type A, HDMI v1.4

HDCP

ROI does not encode the HDMI output with HDCP encryption

Audio Output Digital

SDI embedded audio, 24-bit, 8-Channel
HDMI embedded audio, 24-bit, 2-Channel or 8-Channel

Audio Output Analog

2 x Analog RCA Jack, 2-Channel

User controls

USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows

Size (w x d x h)

5.765" x 4.02" x 0.9" (146.431mm x 102.108mm x 22.86mm)

Power

Uses AJA power supply model DWP-U-R1 (included with purchase)
100-240V, 50/60 Hz universal input
5-20V DC regulated, 8 watts max

Environment

Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
