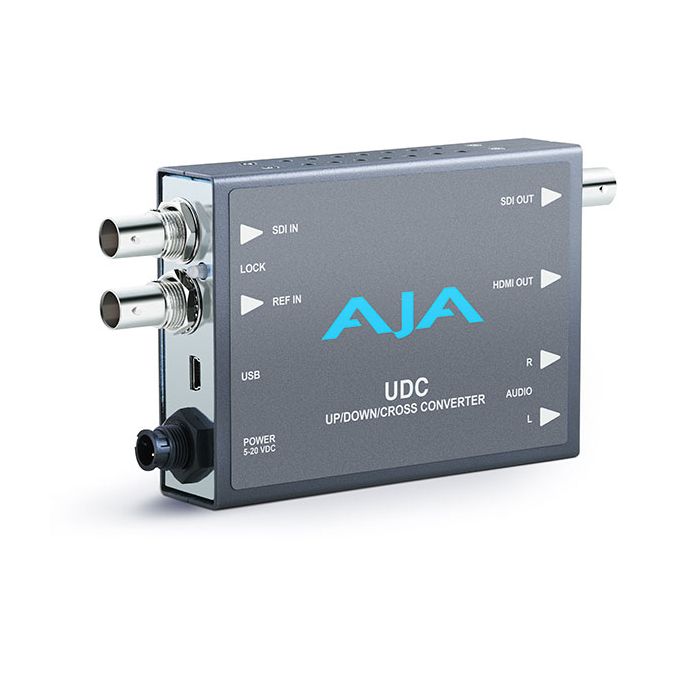

AJA Video Systems UDC Mini Converter

USB and MiniConfig Support

AJA’s free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply

All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Features

• Converts between SD, HD, and 3G HD formats

• Supports 1080p50/60

• Very high quality conversions

• 16-channel embedded SDI audio input

• 16-channel embedded SDI audio output

• 8-channel HDMI audio output

• 2 RCA-style analog outputs at -10dBV (nominal)

• Reference Input

• Configure via Dipswitch or USB port and supplied MiniConfig software

• Uses 5-20V power supply (included with purchase)

• 5 year warranty

• USB and MiniConfig Support

SDI I/O

• SD/HD-SDI (auto-selected), SMPTE-292/296/424, 1x BNC

• SMPTE-292/296/424, 1x BNC525i, 625i

Formats

• 525i59.94, 625i50

• 1080i 50/59.94

• 720p 23.98/24/25/29.97/30/50/59.94/60

• 1080p 23.98/24/25/29.97/30/59.94/60

• 1080psf 23.98/24/25/29.97/30

Reference Input

• Color Black

• Tri-Level sync

HDMI Output

• 10-bit HDMI v1.4a

Audio I/O

• 16-channel embedded SDI audio input

• 16-channel embedded SDI audio output

• 8-channel HDMI audio output

• 2 RCA-style analog outputs at -10dBV (nominal)

HDCP

• The UDC does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the UDC are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.

User Controls

• USB port used with supplied cable and MiniConfig software application to configure device via PC/Mac.

Dimensions

• 147mm x 79mm x 25mm
