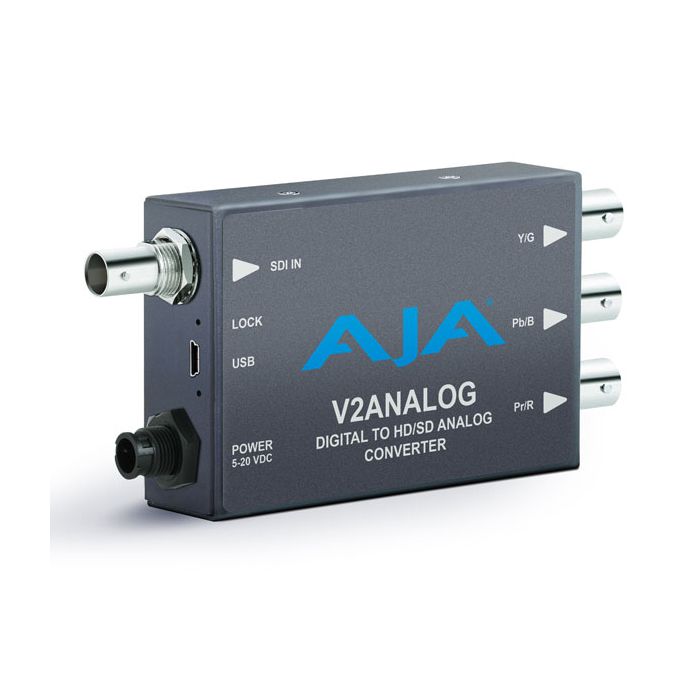

AJA Video Systems V2Analog Mini Converter

Extensive format support

V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow.

Pristine image quality

Utilizing a full 10-bit data path and AJA's high-quality digital-to-analog technology, V2Analog maintains the most detail possible to ensure a quality conversion at an extraordinary price.

USB and MiniConfig Support

AJA’s free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply

All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Formats

• 525i/625i, 1080i 50/59.94/60 Hz

• 1080p 23.98/24/25/29.97/30 Hz

• 1080PsF 23.98/24/25 Hz

• 720p 50/59.94/60 Hz

Inputs

• HD/SD-SDI, SMPTE-259/292/296M, 1 x BNC

Outputs

• HD component YPbPr, RGB (SMPTE-274), BNC

• SD component (Betacam,EBU-N10)/composite/YC (S-Video), BNC

User Controls

• External Dipswitch

• Control (Local/Remote)

• Component/Composite (SD Only)

• Format (YPbPr/YC or RGB)

• Pedestal Present (on/off) (SD Only)

Power

• +5-20 VDC, 3 watts

Size

• 5.1” × 2.4” × 1” (130 × 61 × 25 mm)
