AKG C414-XLS/ST Stereo Pair

Engineered for highest linearity and neutral sound

for beautifully detailed recording of vocals and any acoustic instrument

Nine selectable polar patterns

For the perfect setting for every application

Three different switchable bass-cut filters

To reduce wind noise, subsonic noise or proximity effect

Three attenuation levels (-6, -12, -18dB)

For close-up recording or high-output sources of up to 15dB SPL

Overload warning with audio peak hold LED

To dectect shortest audio peaks

General

• Audio Frequency bandwidth: 20 to 20000 Hz
• Sensitivity: 23 mV/Pa
• Equivalent Noise Level: 6 dB-A
• Signal to Noise: 88 dB-A
• Pre-attenuation Pad: 6, -12, -18 dB
• Bass Cut Filter: 160, 80, 40 Hz
• Electrical Impedance: 200 Ohms
• Recommended Load Impedance: 2200 Ohms
• Polar Patterns: Cardioid, Figure of eight, Hyper Cardioid, Omnidirectional, Wide Cardioid

Powering Interface

• Voltage: 44 to 52 V
• Current: 4.5 mA

Audio Output

• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Design

• Finish: dark grey/silver

Dimensions:/ Weight

• Length: 38 mm
• Width: 50 mm
• Height: 160 mm
• Net Weight: 300 g

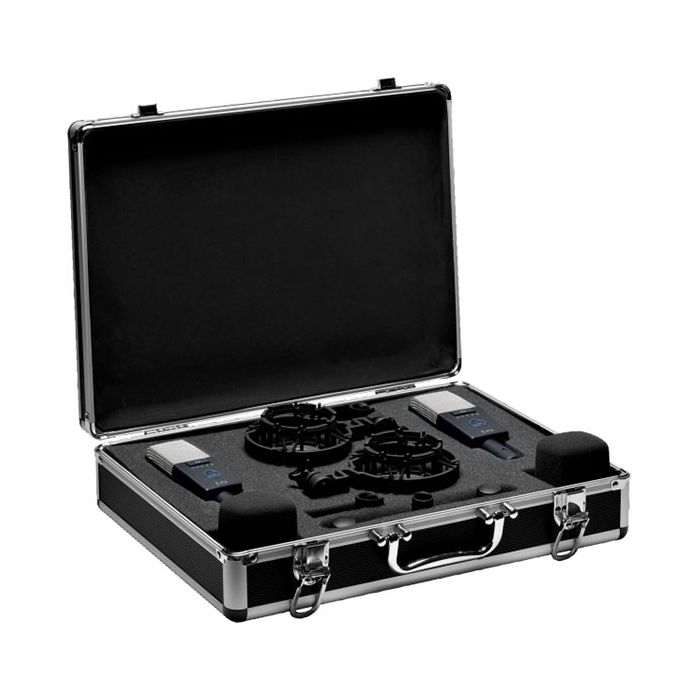

• 2 x C414 XLS
• 2 x Elastic spider suspensions
• 2 x Windscreen
• 1 x Stereo mounting bar
• Aluminum carrying case
• Measurement documents
