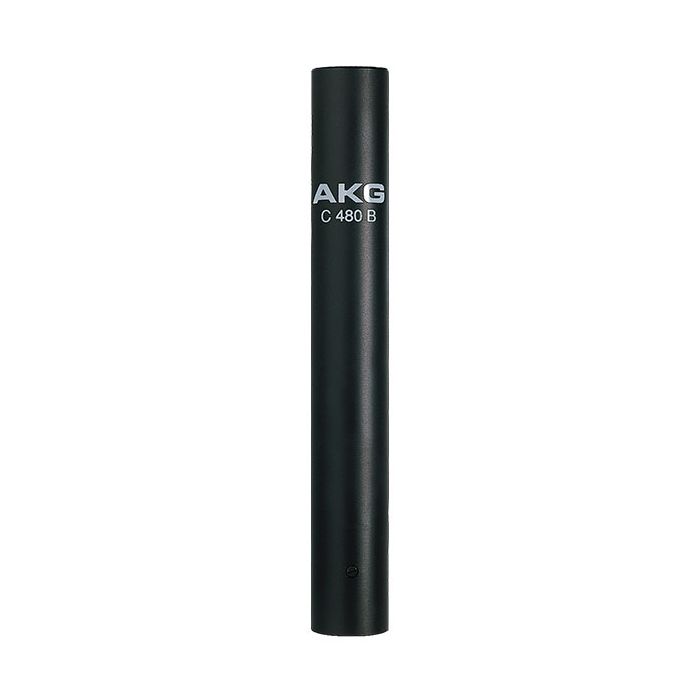

AKG C480B ULS Condenser Microphone Preamp
Professional microphone pre-amplifier
MPN: C480B-ULS SKU: C480B-ULS
The C480 B is the pre-amp for the ultralinear series capsules, CK61, CK62, CK63, and CK69 ULS, and represents one of the quietest microphone amps ever built.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 3-5 Days
The C480 B is the pre-amp for the ultralinear series capsules, CK61, CK62, CK63, and CK69 ULS, and represents one of the quietest microphone amps ever built. The C480 B offers excellent audio quality and maximum flexibility. Its electronic circuitry coupled with a transformerless output stage assures completely linear transfer characteristics across the entire frequency range, while achieving self-noise figures close to the theoretical minimum.
A specially designed output stage drives difficult loads like excessively long cables without harming the signal quality. The C480 B offers a two-step high-pass filter and two gain stages of either -10dB or +6dB.
Sophisticated microphone pre-amp design
for ultralow noise performance
Transformerless output
provides extremely low distortion, highest reliability and less weight
Switchable attenuation pad
enables high SPL applications up to 144dB
Switchable bass-cut filter
eliminates rumble or footfall noise
Specially designed output stage for difficult loads
drives excessively long cables with no signal degradation
General
- Audio Frequency bandwidth: 20 to 20000 Hz
- Pre-attenuation Pad: 6, -10 dB
- Bass Cut Filter: 100 Hz
- Recommended Load Impedance: 2000 Ohms
Powering Interface
- Voltage: 48 V
- Current: 2 mA
Audio Output
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin
Design
- Finish: matte black
Dimensions / Weight
- Height: 173 mm
- Diameter: 21 mm
- 1 x C480 B Pre-Amp
- 1 x SA60 Stand Adaptor
