Alice DA6-2 Stereo Distribution Amplifier (D-Sub)

Stereo Distribution Amplifier D-Sub Version

MPN: 205180 SKU: 205180

$357.50

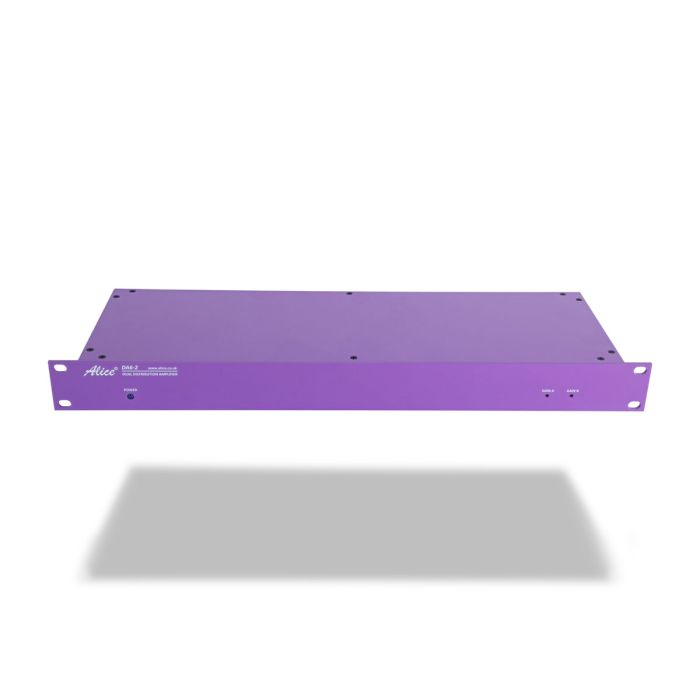

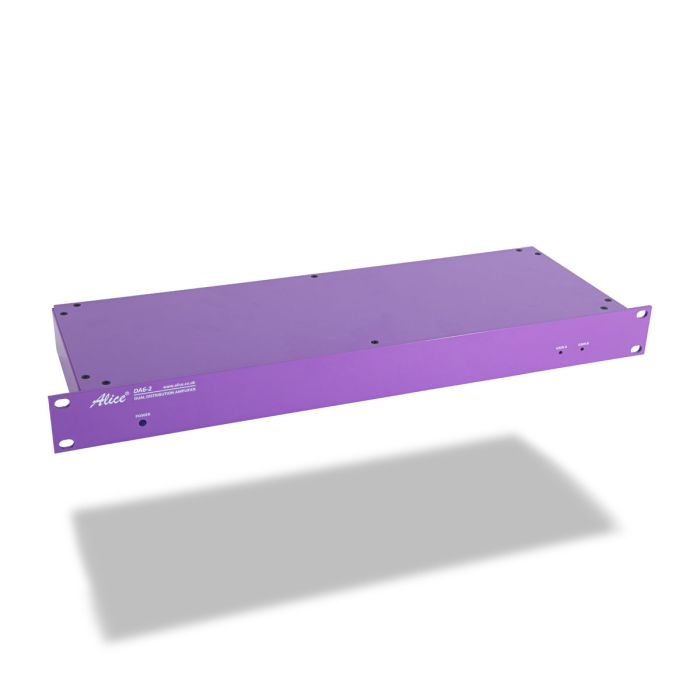

The Alice DA6-2 MKII is a 19” rack mounted high-performance, dual six output distribution amplifier designed to provide multiple audio feeds in stereo and dual mono applications. It can also be configured as a single twelve output distribution amplifier by the operation of internal links.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

All audio connections are via professional standard XLR connectors and 25 way D-Sub depending on the version.

Input impedance: internally selectable 20k ohms or 600 ohms balanced
Input: common-mode rejection: 60dB typical
Frequency response: 20Hz to 20kHz ±0.2dB
Phase shift: 20Hz <1° 20kHz<5°
Noise: -100dB (RMS 30Hz to 15kHz) at unity gain - Ref + 8dBu output
Distortion: (THD) + 8dBu output: 40Hz 0.006% - 1kHz 0.006% 10kHz 0.02%
Output impedance: <1 ohm balanced and floating
Minimum load: 600 ohms
Gain range: adjustable up to 20dB gain and 10dB loss
Max. input level: +28dBu
Max. output level: +26dBu into 5k ohms +24dBu into 600 ohms 0dBu = 0.775 volts RMS
Mains supply: 85v to 250v AC operation
Power consumption: 20VA
Case details: 1U 19" rack mounting, overall depth 165mm Shipping Weight: 1.95Kg
