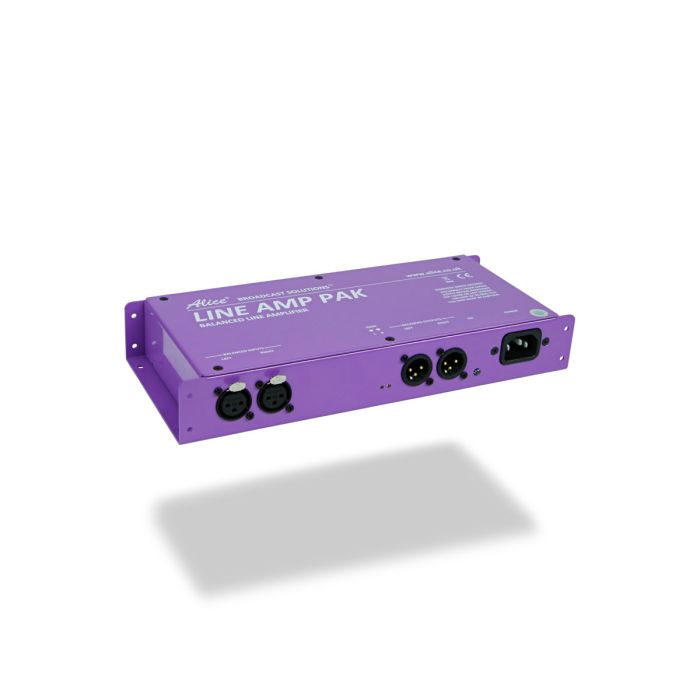

Alice LinePAK mk II
Dual balanced-input to balanced-output amplifier
MPN: 205047 SKU: 205047
The Alice LinePak MKII is a dual balanced-input to balanced-output amplifier with variable gain via accessible multi-turn pre-sets on the front panel.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Alice LinePak MKII is a dual balanced-input to balanced-output amplifier with variable gain via accessible multi-turn pre-sets on the front panel.
Audio inputs and outputs are via Neutrik connectors and may be wired unbalanced if required, enabling the unit to be used for unbalanced to balanced conversion or vice versa, or as a convenient line buffer amplifier.
- Input impedance: 20k ohms balanced (can be terminated at 600 ohms via internal link) Frequency response: 20Hz to 20kHz ±0.2dB
- Common-mode rejection: >60dB
- Noise at unity gain: –100dB ref. +8dBu
- Distortion: <0.005% 1kHz, +8dBu output
- Crosstalk: better than -95dB at 1kHz
- Gain adjustment: 10dB loss to 22dB gain
- Max. input level: +25dBu
- Max. output level: +25dBu
- Output impedance:
- <1 ohm balanced and floating
- 0dBu = 0.775 volts RMS
- Mains supply: 230 V AC 3VA (115V available to order) Power consumption: 3VA
- Dimensions: 275 (W) x 115 (D) x 42 (H)
- Shipping Weight: 1.25Kg
