Alice Longitudinal Timecode Distribution Amplifier with Dual Mains Power Supply

LTC Timecode DA

SKU: 205520

$525.00

Please select version *

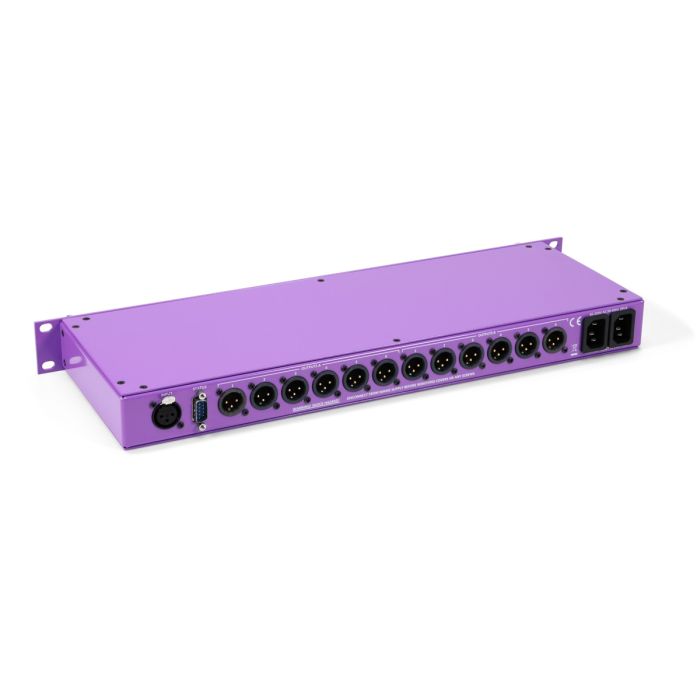

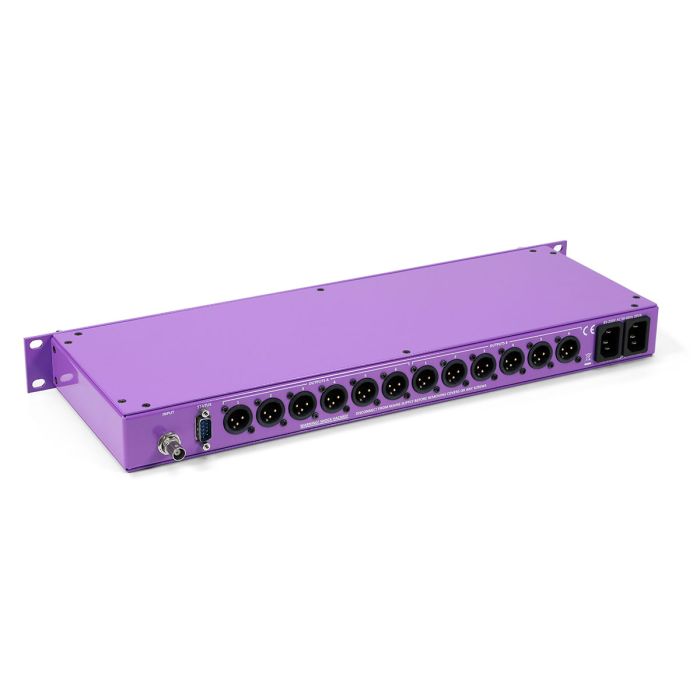

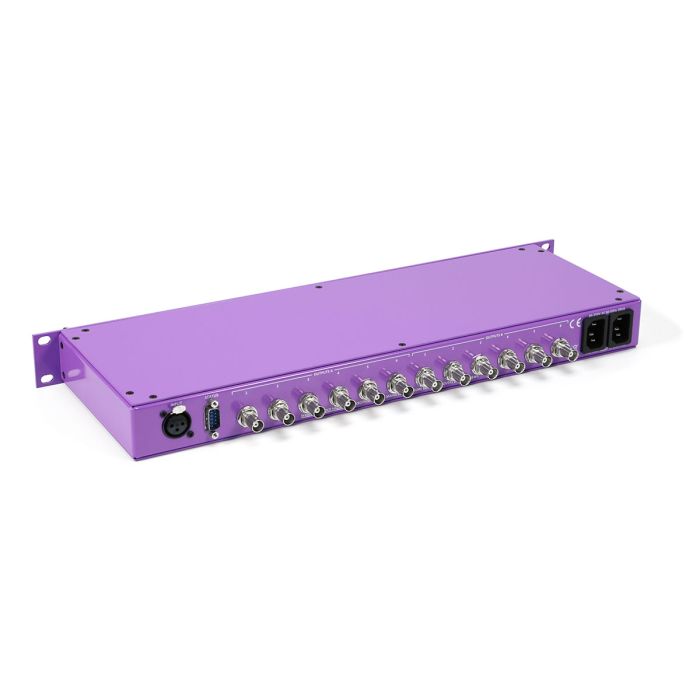

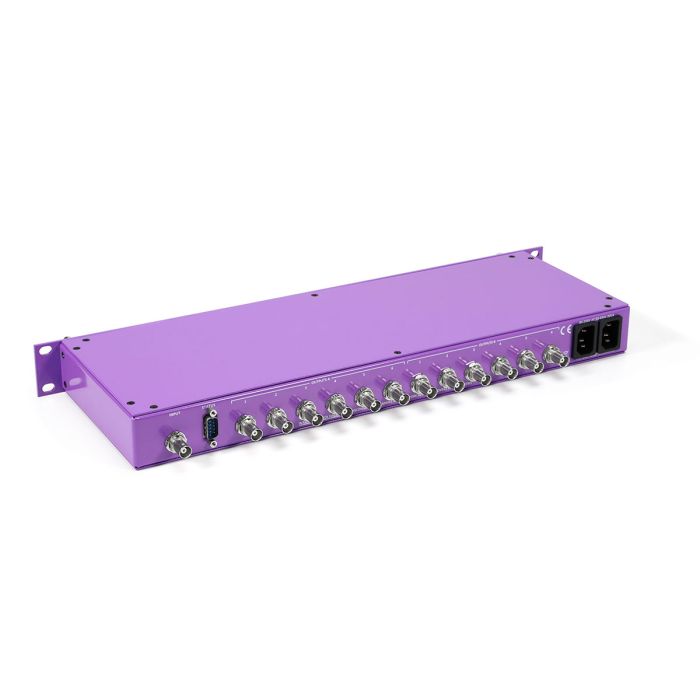

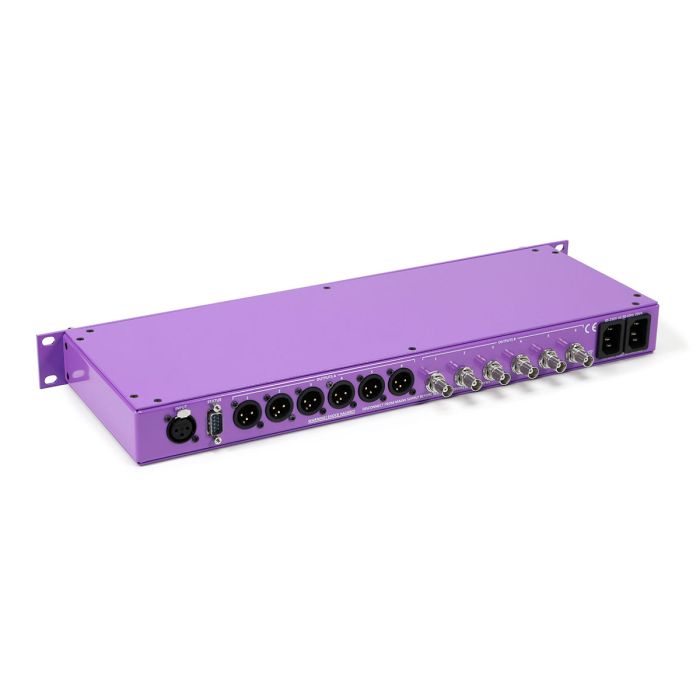

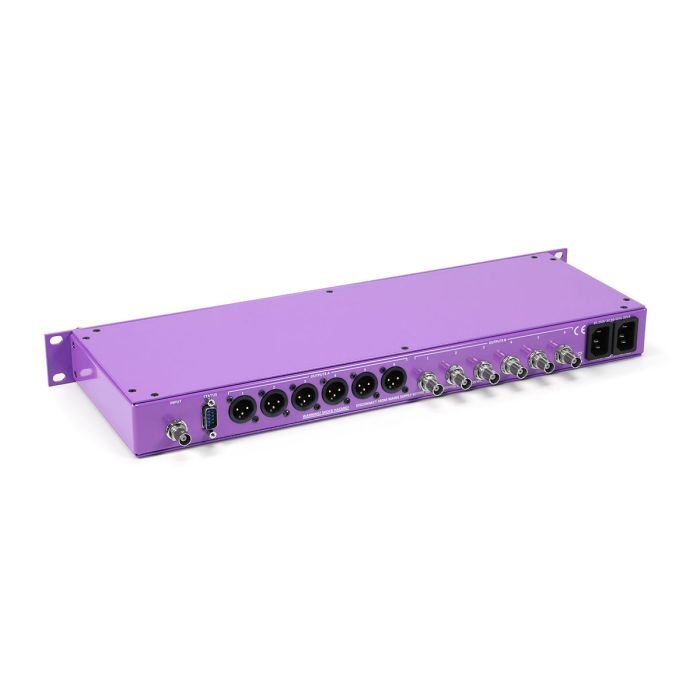

Alice's 19” rack-mounted longitudinal timecode distribution amplifiers are available in six standard combinations of XLR and BNC input and ouput connectors. Designed especially for central technical areas, radio & TV, outside broadcast environments, PSC camera and field equipment jamming.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

The dual power supply unit has two mains supply inputs with a monitoring output via a DB9M connector covering mains and timecode events.

The Alice timecode distribution amplifier is a 19” rack mounted unit provides longitudinal timecode via a mixture of connection combinations up to twelve outputs in two groups of six. Each group of outputs are adjustable via a front panel multi-turn potentiometer.

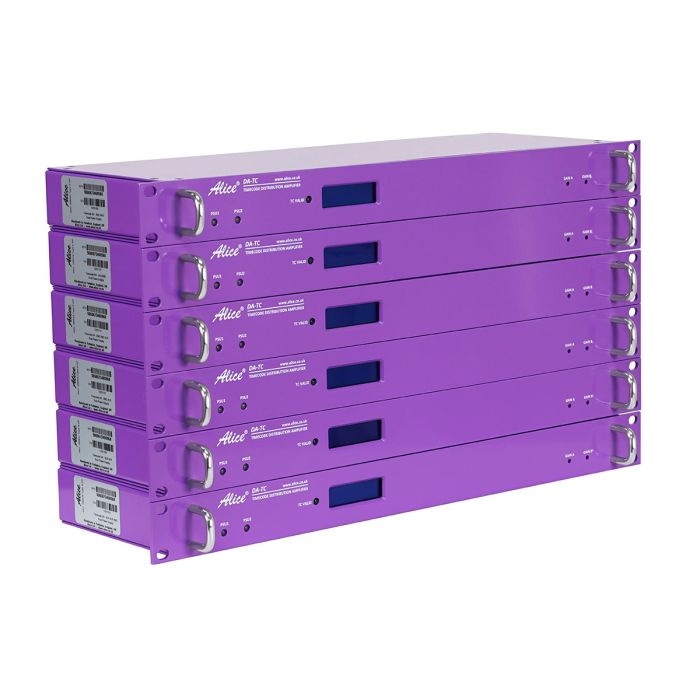

The front panel has a two bi-coloured LEDs showing green when both main’s supplies are present which turn red when one of the supplies fails. There is also a green LED which illuminates when timecode is present. A large illuminated LCD display shows timecode in real-time. The display can also be programmed to show your company name or other message on boot-up. These options can be requested at the time of ordering.

In addition, if a mains supply fails or the incoming timecode signal is lost, volt free contacts change-over between the normal and failed state.

Uses include, on-location shooting with PSC cameras and portable audio mixers that require a jammed LTC timecode signal, outside broadcast trucks or fixed installations that require timecode to be sent to vision mixers, EVS, audio mixing desks and studio clocks etc.

Input impedance: internally selectable 20k ohms or 600 ohms balanced
Input: common-mode rejection: 60dB typical
Frequency response: 20Hz to 20kHz ±0.2dB
Noise: -100dB (RMS 30Hz to 15kHz) at unity gain - Ref + 8dBu output
Distortion: (THD) + 8dBu output: 40Hz 0.006% - 1kHz 0.006% 10kHz 0.02%
Output impedance: <1 ohm balanced and floating
Minimum load: 600 ohms
Gain range: adjustable up to 20dB gain and 10dB loss
Max. input level: +28dBu
Max. output level: +26dBu into 5k ohms +24dBu into 600 ohms 0dBu = 0.775 volts RMS
Compatible with SMTPE 12M-1 & SMTPE 12M-2 signals Recognisable timecode illuminates timecode present - green LED Removal of timecode shows ‘no timecode’ on display

* Failure of incoming mains supply changes LEDs from green to red
* Failure of incoming timecode signal will signal an alarm via the volt free alarm contact outputs refer on the DB9 connector
