Alice LTC Timecode Distribution Amplifier
Timecode Distribution Amp
MPN: 205028 SKU: 205028

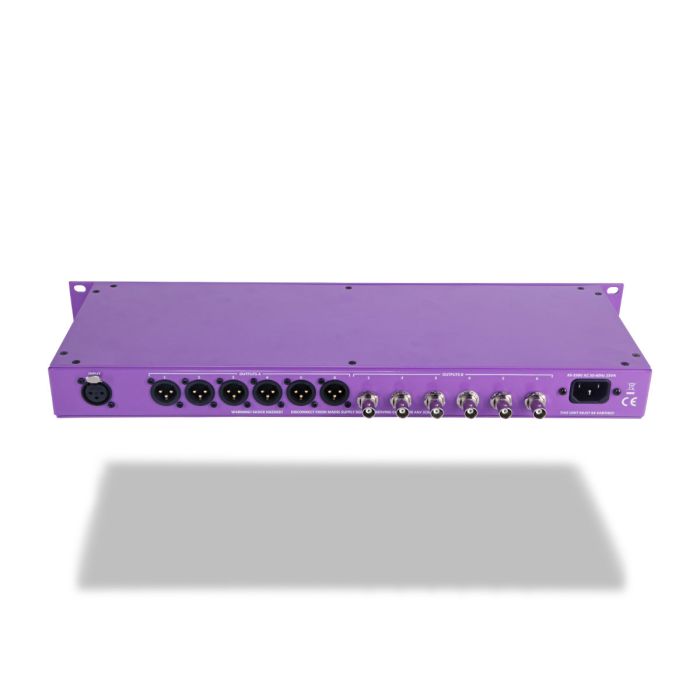

The Alice TC-DA LTC is a 19” rack mounted timecode distribution amplifier which provides six balanced outputs via Neutrik XLR connectors and six unbalanced outputs via 75ohm BNC connectors.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Alice TC-DA LTC is a 19” rack mounted timecode distribution amplifier which provides six balanced outputs via Neutrik XLR connectors and six unbalanced outputs via 75ohm BNC connectors.

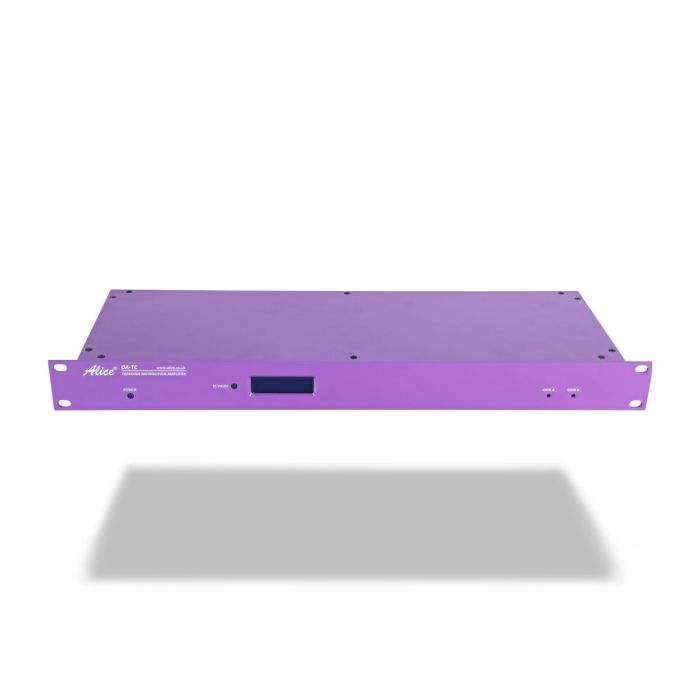

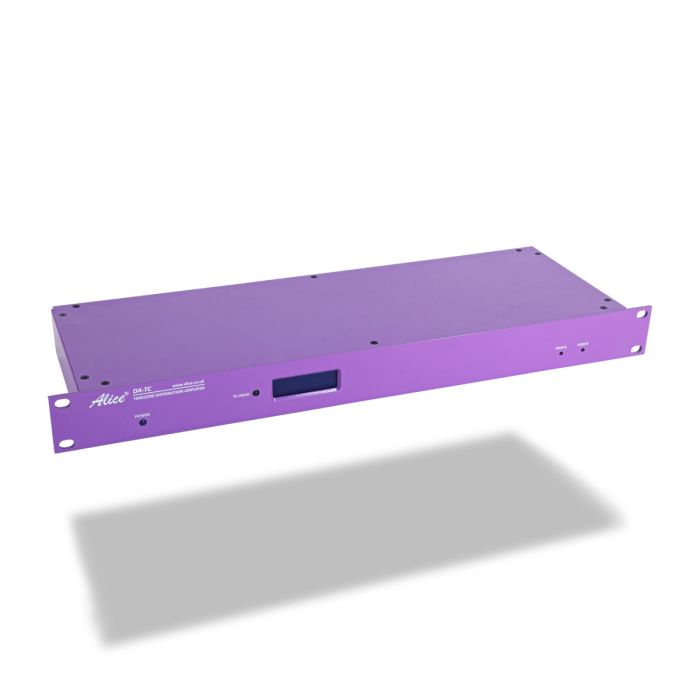

The front panel has a large illuminated LCD display showing timecode. The display can be programmed to show your company name on boot-up at time of order.
Each bank of six outputs are adjustable via front panel mounted multi-turn trim pots.
Uses include, on-location shooting with PSC cameras and portable audio mixers that require a jammed LTC timecode signal, outside broadcast trucks or fixed installations that require timecode to be sent to EVS, mixing desks and studio clocks etc.
Removal of incoming timecode signal displays ‘no timecode’.
- Input impedance: internally selectable 20k ohms or 600 ohms balanced
- Input: common-mode rejection: 60dB typical
- Frequency response: 20Hz to 20kHz ±0.2dB
- Phase shift: 20Hz <1° 20kHz<5°
- Noise: -100dB (RMS 30Hz to 15kHz) at unity gain - Ref + 8dBu output
- Distortion: (THD) + 8dBu output: 40Hz 0.006% - 1kHz 0.006% 10kHz 0.02%
- Output impedance: <1 ohm balanced and floating
- Minimum load: 600 ohms
- Gain range: adjustable up to 20dB gain and 10dB loss
- Max. input level: +28dBu
- Max. output level: +26dBu into 5k ohms +24dBu into 600 ohms
- 0dBu = 0.775 volts RMS
- Mains supply: 85v to 250v AC operation
- Power consumption: 20VA
- Case details: 1U 19" rack mounting, overall depth 165mm Shipping weight: 1.95Kg
