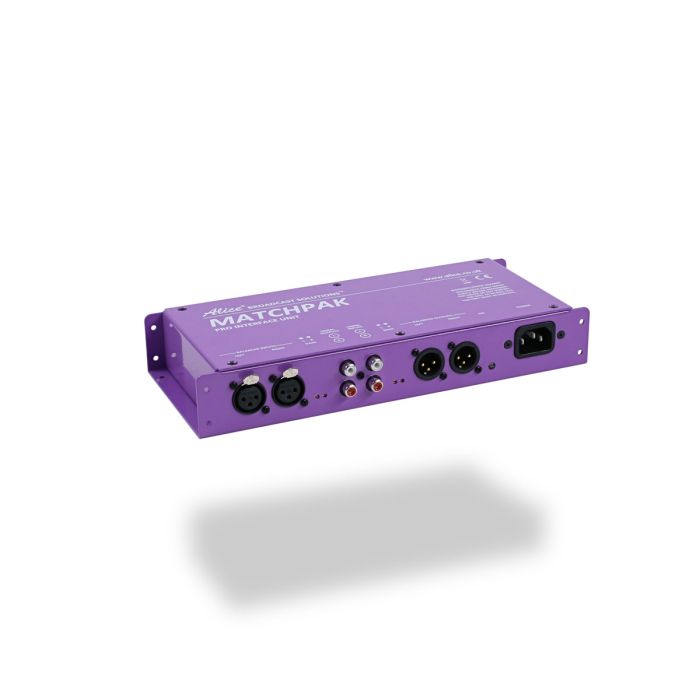

Alice MatchPAK mk II
Bi-Directional balanced to unbalanced audio converter
MPN: 205039 SKU: 205039
The Alice MatchPak MKII is a bi-directional stereo unit for interfacing unbalanced
semi-pro equipment to professional balanced line-levels. Fitted with four Neutrik connectors for balanced and four RCA sockets for unbalanced connections allowing ideal signal conversion for use with domestic/semi-professional recording/replay equipment.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Alice MatchPak MKII is a bi-directional stereo unit for interfacing unbalanced
semi-pro equipment to professional balanced line-levels. Fitted with four Neutrik connectors for balanced and four RCA sockets for unbalanced connections allowing ideal signal conversion for use with domestic/semi-professional recording/replay equipment.
Supplied set for a nominal 14dB attenuation line to equipment and a nominal 14dB gain equipment to line. Multi-turn pre-sets are provided, accessible through the front panel.

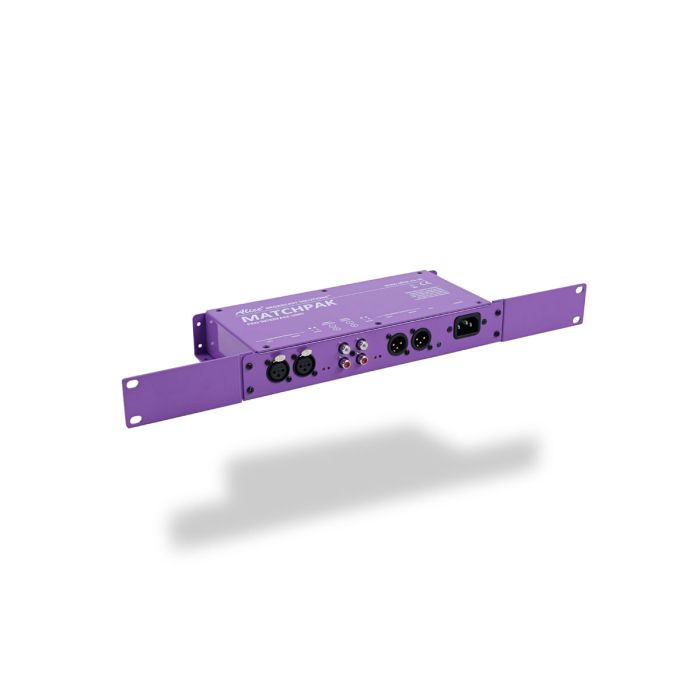

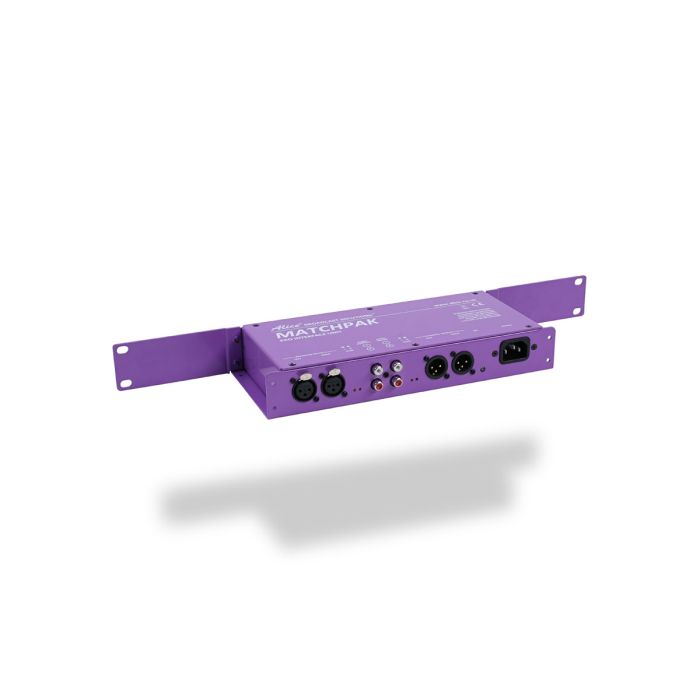

Mains input is via a UK IEC connector with supplied lead (2m). Rack mountable kit is supplied as standard.
Balanced input to unbalanced output:
- Input impedance: 20k ohms
- Common-mode rejection: >60dB
- Max. input level: +26dBu
- Output impedance: less than 2k ohms
- Frequency response: 20Hz to 20kHz +0dB - 0.1dB
- Noise: <-100dB ref. + 8dBu input
- Distortion: (THD): 0.005%
- Clipping level: +26dBu at input
- Gain range: -26dB to -6dB
Unbalanced input to balanced output:
- Input impedance: 22k ohms
- Output impedance: less than 1 ohm
- Frequency response: 20Hz to 20kHz +0dB – 0.1dB
- Noise: <-94dB ref. + 8dBu output
- Distortion: (THD): 0.005%
- Clipping level: +26dB into 5k ohms. +21dB into 600ohms
- Gain range:
- 6dB to 26dB
- 0dBu = 0.775 volts RMS
- Mains supply: 230 V AC (115V available to order)
- Power consumption: 3.2VA
- Dimensions: 275 (W) x 115 (D) x 42 (H)
- Shipping Weight: 1.25Kg
