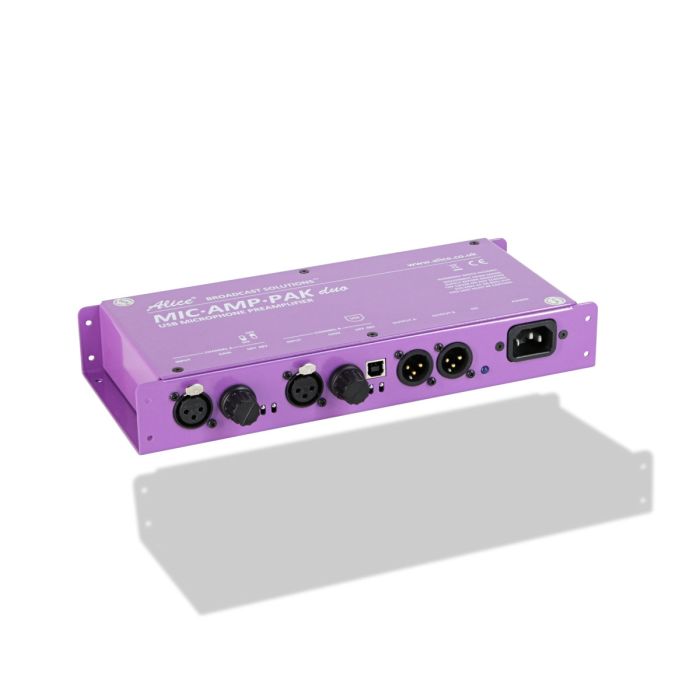

Alice Mic Amp PAK Duo MKII with USB
Dual Channel Mic Pre Amp with USB
SKU: 205166
The Alice Mic Amp PAK is a dual channel mic amp with audio transformer inputs and a sophisticated discrete input stage, gain control and balanced output.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Alice Mic Amp PAK is a dual channel mic amp with audio transformer inputs and a sophisticated discrete input stage, gain control and balanced output.
The USB outputs on the duo version appears as dual mono outputs: output 1 on the left and output 2 on the right.
Technical Specification
- Min gain: 33.4dB
- Max gain: 79.7dB
- Frequency response: 20Hz to 20KHz +/- 1dB
- Noise: 127.7dB below input at 70dB gain measured against 200ohm input 20Hz to 20KHz bandwidth High pass filter switch: 12dB/8ve 3dB point 75Hz
- Harmonic distortion: measured at 50dB gain – At 95Hz 2nd order -74dB, 3rd order -80dB. (0.02%)
- At 1KHz 2nd order -84dB, 3rd order -72dB. (0.018%)
- At 3.5KHz 2nd order -80dB, 3rd order -63dB. (0.08%)
- Phantom power switch: 48v T
- he power supply is integral with the audio board and has linear regulators powered from an encapsulated mains transformer.
- Mains ground is internally connected to audio ground Supplied with 2m IEC mains cable
- Rackmount ears supplied as standard
- Mains supply: 230 V AC 3VA (115V via internal links)
- Power consumption: 3VA
- Dimensions: 275 (W) x 115 (D) x 42 (H)
- Shipping Weight: 1.20Kg
