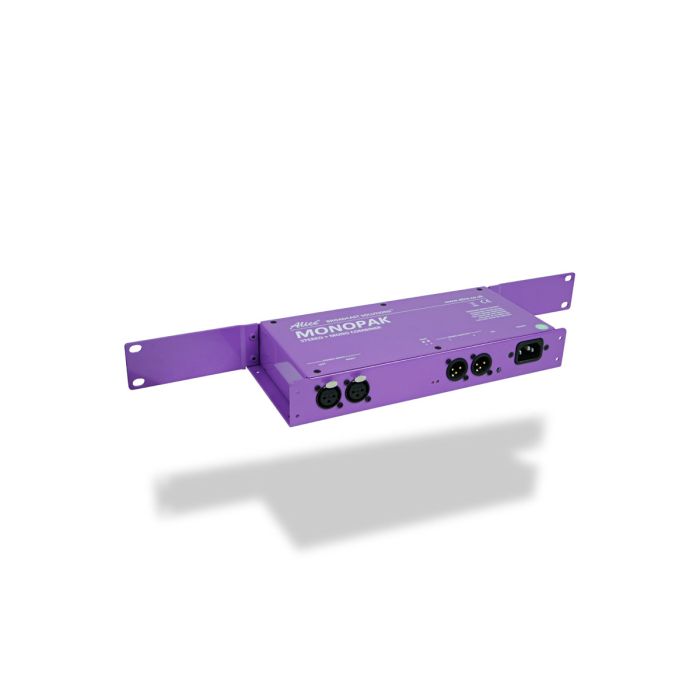

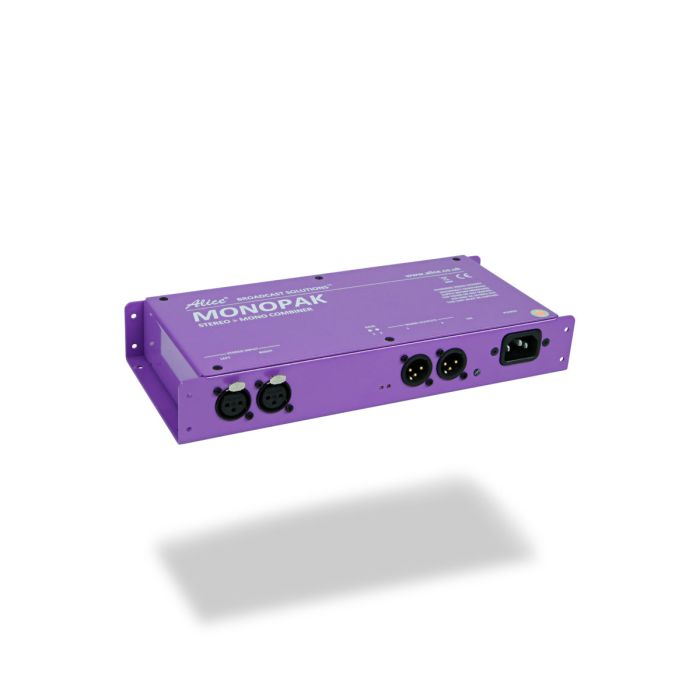

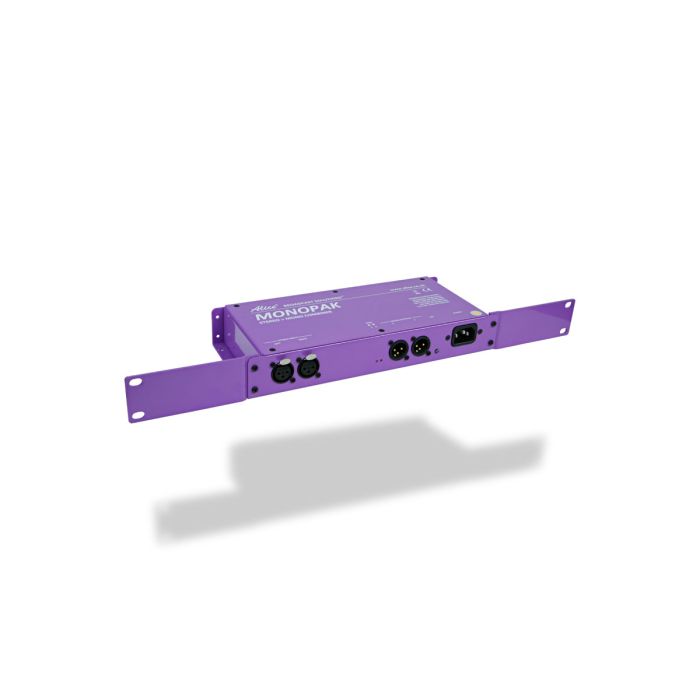

Alice MonoPAK mk II

balanced-line stereo input to balanced-line dual mono output audio converter

MPN: 205048 SKU: 205048

$240.83

The Alice MonoPAK MKII produces a fully buffered balanced-line dual mono output from a balanced-line stereo input.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

The Alice MonoPAK MKII produces a fully buffered balanced-line dual mono output from a balanced-line stereo input. Both mono outputs are electronically buffered and are independently adjustable via multi-turn pre-sets accessible through the front panel providing 10dB loss to 20dB gain with reference to 0dB input on both left and right inputs. Bridging- balanced audio inputs and mono-balanced outputs are via Neutrik XLR connectors and can be wired unbalanced if required.

Input impedance: >20k ohms balanced (can be terminated at 600 ohms via internal link) Frequency response: 20Hz to 20kHz +0dB – 0.1dB
Common-mode rejection: >60dB
Noise at unity gain: -100dB ref. +8dBu
Distortion: <0.005% 1kHz +8dBu output
Max. input level: +25dBu
Max. output level: +25dBu
Output impedance:
- <1 ohm balanced and floating
- 0dBu = 0.775 volts RMS
Mains supply: 230 V AC (115V available to order) Power consumption: 3VA
Dimensions: 275 (W) x 115 (D) x 42 (H) Shipping Weight: 1.25Kg
