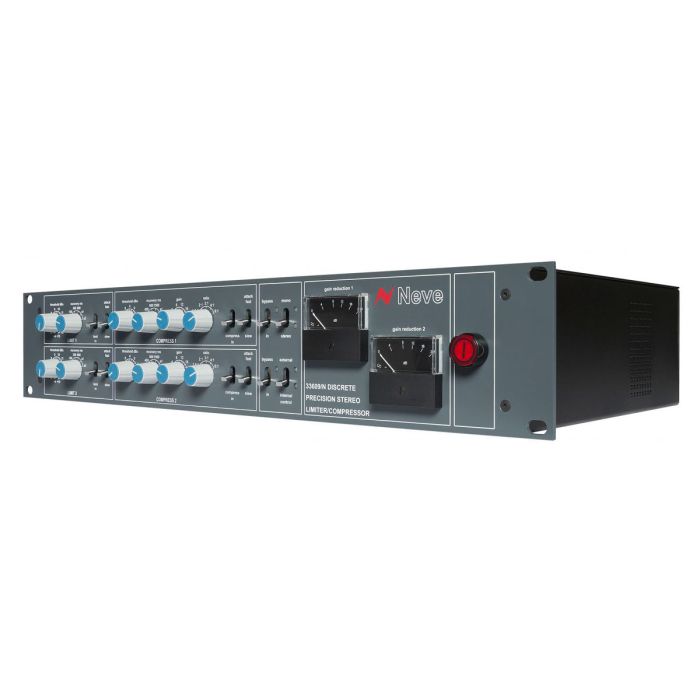

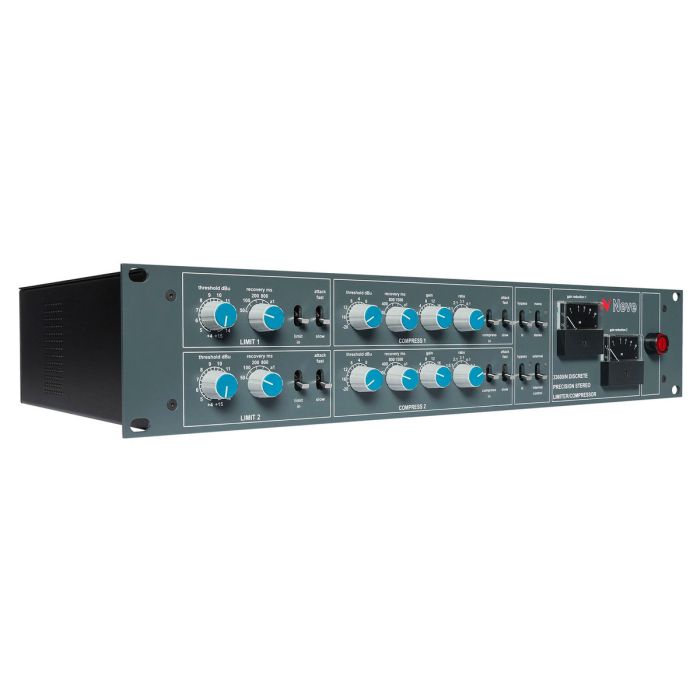

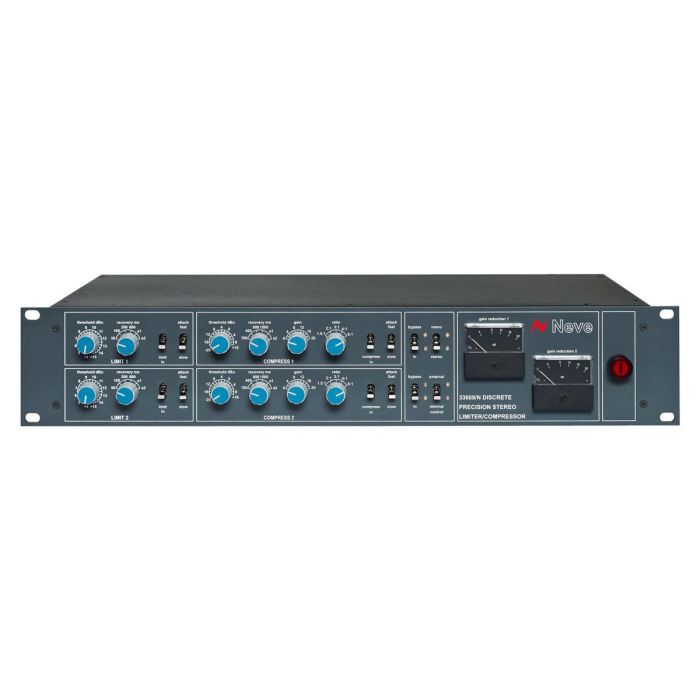

AMS Neve 33609/N Compressor/Limiter
Classic 2254 style Stereo Compressor/Limiter
MPN: NEVE-33609/N SKU: NEVE-33609/N
The best of both worlds: original Neve 33609 sound (employing a discrete output stage for the warmer sound professionals prefer) with enhanced I/O switching
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Neve 33609/N is a stereo compressor used for music recording, mixing and mastering. It combines hand-wired transformers and gain reduction circuitry to create a stunning sound.
The Neve 33609/N offers smooth and transparent compression. It features enhanced I/O switching and discrete output stage for a warmer sound. It uses a classic feedback compression circuit found in the Neve 2254. The compressor precedes the limiter offering a great amount of control.
Furthermore, each section boasts independent sidechains as well as independent threshold, recovery and attack. Ratio ranges from 1.5:1 to 6:1 and make-up gain comes before the limiter. The overall gain reduction is displayed on the moving coil meters.
The Neve 33609 is a must-have compressor that excels at mixbuss or mastering duties. It also provides stunning results on stereo instruments in linked or unlinked modes.
- Classic Stereo Compressor / Limiter designed to exacting 1970’s specifications
- Made using hand-wired Neve transformers in Burnley, England
- Classic 2254 feedback compression circuitry
- Brick Wall Limiting
- Transparent level control
- Perfect for mixing, broadcast, and mastering applications
- Hard Limit feature for digital recording
- Limit in/out Compress in/out
- Discrete output stage for slightly warmer sound
- Input: Input Impedance 10kΩ (internally switchable to 600Ω, refer to vendor)
- Output: Maximum output >26dBu into 600Ω, balanced and earth free
- Distortion: <0.075% at 1kHz (bypass in, compress and limit out, input level 9dBu); <0.2% at 1kHz (compress in, ratio 6:1, gain 20dB, recovery 800mS, threshold −18dBu); <0.45% at 1kHz (limit in, compress out, recovery 800mS, input level 22dBu, threshold −18dBu)
- Frequency Response: ±0.5dB 20Hz to 20kHz rel. 1kHz
- Noise: −75dBu, 22Hz – 22kHz, input terminated with 600Ω (bypass in, compress and limit out), −55dBu (compress in, gain 20dB)
- Limit Threshold: 4dBu to 15dBu
- Limit Ratio: Change in output level <0.1dB with 10dBu to 20dBu step input
- Limit Attack Time: Fast 2ms ±1, slow 4ms ±1
- Limit Recovery Time: 50ms to 800ms, a1 (auto): 100ms/2000ms, a2 (auto): 50ms/5000ms
- Compress Ratio: 1.5:1 to 6:1
- Compress Attack Time: Fast 3ms ±1, slow 6ms ±1 with 100Hz first order high-pass filter
- Compress Recovery Time: 100ms to 1500ms, a1 (auto): 100ms/2000ms, a2 (auto): 50ms/5000ms
- Power: Power Consumption: 5.3VA
- Dimensions:
- Width: 482mm (19 inches)
- Height: 88mm (3.46 inches)
- Depth: 255mm (10.03 inches)
- Weight: 5kg (11lbs)
