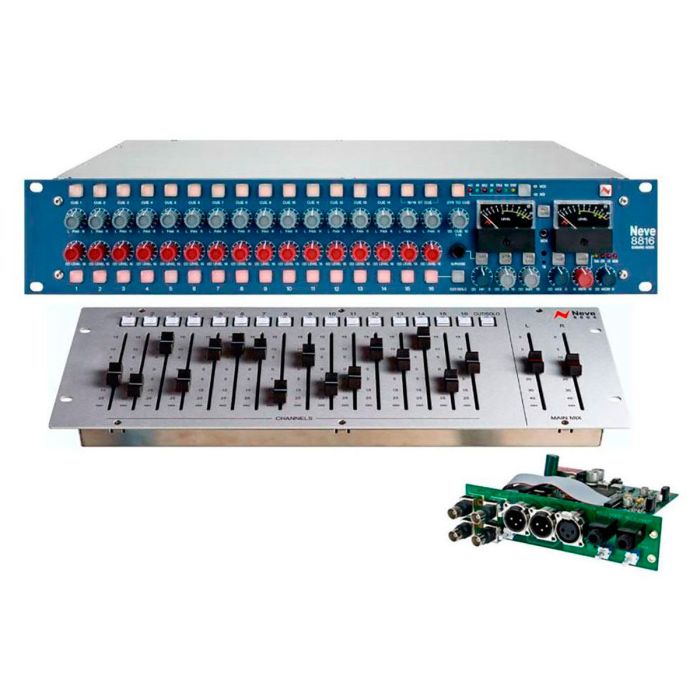

AMS Neve 8816 Neve Summing Package - Inc. 8816, 8816 ADC and 8804

• Hand-built, hand-wired 16-channel summing mixer for use in professional computer-based studios
• Classic Neve analogue transformer mix bus topology
• Instant Recall of settings stored on PC or Mac via USB using Neve Total RecallTM
• 16 input channels plus aux additional inputs
• Cue, Level, Pan, Solo and Mute controls
• Mix Insert points
• Various solo and solo in place functions
• Sum and difference insert with exclusive 'Stereo Width Control'
• Separate Monitor and Cue levels
• Main and Alt speaker outs
• Onboard talkback mic w/talkback input to Cue
• Units can be cascaded for multiple output
• 2U rackmount design with special shielded power supply
• 2 track return, plus iPod input
• Headphone outs on front and back
• Included digital output card; 44.1kHz to 192kHz, plus DSD
• High-quality long-throw fader module
• 16 channel faders and 2 master faders
• 16 Mute/Solo switches
• 16 Direct Outputs allow 8816 level pots to become auxiliary sends
• 4U rackmount or table top operation using built-in stand or included Neve 8804 sidecheeks

Neve 8816 Specifications

Performance:

• Frequency Response: Channel 1 line input to main output (20Hz to 20kHz) +/-0.5dB Better than -3dB @ 60Hz
• Distortion: < 0.02% (0Hz to 20kHz) measured at +20dBu into 10 Ohms with 80Hz filter
• Noise: No channels routed = < -86dBu (20Hz to 20kHz bandwidth)1 channel routed = < -85dBu (20Hz to 20kHz bandwidth)16 channels routed = < -80dBu (20Hz to 20kHz bandwidth)

Line Input:

• Input Impedance (balanced): > 20k Ohms (balanced +4dBu)
• Input level maximum: >+26dBu (balanced)

Line Output:

• Line Output Impedance: < 50 Ohms (balanced +4dBu)
• Output level maximum: >+26dBu into 600 Ohms (balanced), >+14dBu into 600 Ohms

Dimensions:

• Width: 482mm (19 inches)
• Height: 88mm (3 inches) (2U)
• Depth: 390mm (15.4 inches)
• Weight: 7kg (5.5 pounds)

Options:

• External Fader Pack: Neve 8804 fader pack allows channel and main audio levels to be controlled by faders. This also introduces an AUX output to the 8816 unit

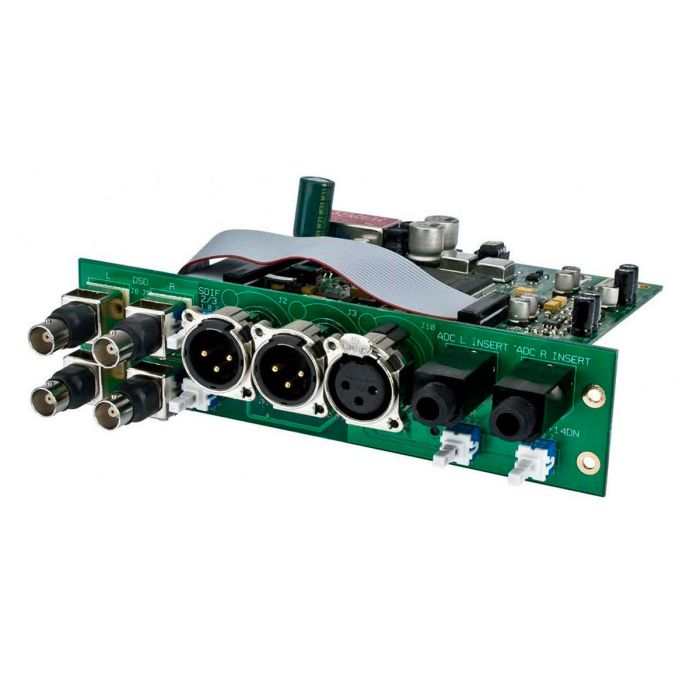

• Digital Output (Included): Analogue to digital card, capable of sample rates up to 192kHz can be fitted into the 8816 internally.

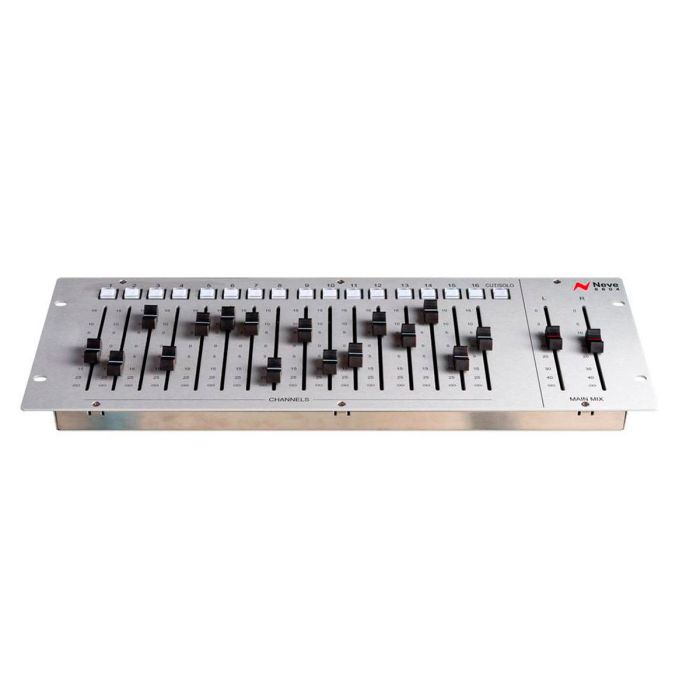

Neve 8804 Specifications

Levels:

• Fader Range: Channel 1 to 16: -infinity to +15dBMix Left and Right: -infinity to 0dB

Performance:

• Frequency Response: +/-0.2bD (10Hz to 20kHz)+/-0.5dB (10Hz to 40kHz)
• Distortion: Fader at 0dB: distortion <0.005% (20Hz to 20kHz) - measured with a bandwidth of 10Hz to 80kHz
• Noise: Fader at 0dB: noise <90dBu (20Hz to 20kHz) - measured with a bandwidth of 10Hz to 22kHz

Dimensions

• Width: 482mm (19 inches)
• Height: 176mm (6.9 inches) - 4U
• Depth: 32mm (1.3 inches) - when flat mounted
• Weight: 2.1kg (5 pounds)
